Anritsu S332E
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 4 GHz |
| Cable & Antenna Analyzer | 1-Port Vector Network Analysis with Return Loss, VSWR, Cable Loss, and Distance-to-Fault (DTF) |
| Spectrum Analyzer Range | 100 kHz to 4 GHz |
| Dynamic Range | Greater than 95 dB typical |
| Power Measurement | Integrated Power Meter with optional High Accuracy Power Meter |
| Display | 7-inch Sunlight Viewable Color LCD Touchscreen |
| Battery Life | Approximately 4 hours with standard battery pack (field-replaceable) |
| Data Storage | Internal memory plus USB and Micro SD card external storage support |
| Connectivity | USB, Ethernet, and optional Bluetooth and GPS |
| Operating Temperature | -10°C to +55°C |
Anritsu S332E Options:
- S332E - 0021 - 2-Port Transmission Measurement
- S332E - 0010 - Bias-Tee
- S332E - 0031 - GPS Receiver (requires Antenna)
- S332E - 0019 - High-Accuracy Power Meter (requires External Power Sensor)
- S332E - 0029 - Power Meter
- S332E - 0025 - Interference Analyzer (recommend Option 0031)
- S332E - 0027 - Channel Scanner
- S332E - 0431 - Coverage Mapping (requires Option 0031)
- S332E - 0090 - Gated Sweep
- S332E - 0028 - C/W Signal Generator (requires CW Signal Generator Kit, P/N 69793)
- S332E - 0509 - AM/FM/PM Analyzer
- S332E - 0411 - Ethernet Connectivity
- S332E - 0098 - Standard Calibration (ANSI 2540-1-1994)
- S332E - 0099 - Premium Calibration to Z540 plus test data
| Model | S332E |
|---|

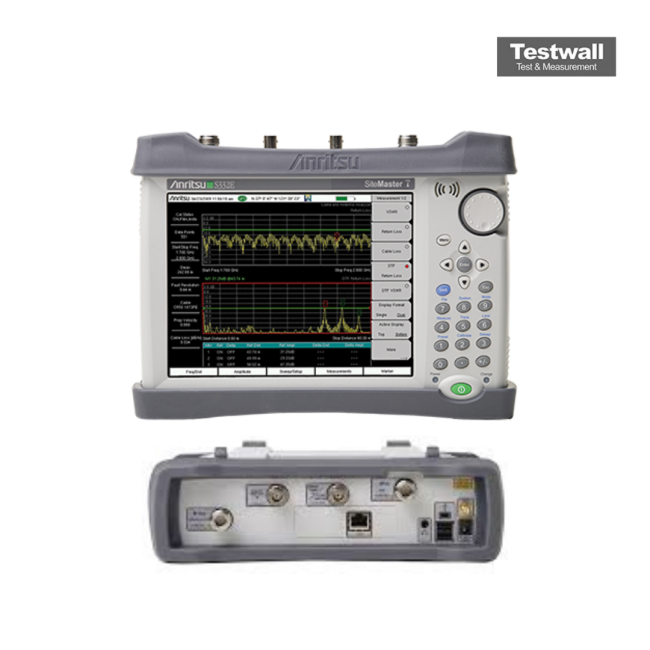

The Anritsu S332E Site Master is a rugged handheld analyzer combining cable/antenna testing and spectrum analysis across 2 MHz–4 GHz. It provides diagnostics including return loss, VSWR, DTF, cable loss, and Smith chart display. The spectrum analyzer supports 9 kHz–4 GHz with advanced interference mapping, spectrograms, RSSI signal ID, channel power, ACPR, and PIM alerts. Features include touchscreen operation, USB connectivity, bias‑tee support, and flexible calibration options (InstaCal, OSL, FlexCal).
This compact and lightweight instrument ensures reliable field performance with ~4-hour battery life, making it ideal for wireless infrastructure maintenance, interference detection, and PIM hunting.
Testwall can supply the used Anritsu S332E Site Master, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S332E Site Master.
