Anritsu S818A
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 18 GHz |
| Measurement Type | Vector Network Analyzer (VNA) / Cable and Antenna Analyzer |
| Dynamic Range | Up to 100 dB |
| Return Loss Measurement Range | 0 to 60 dB |
| Connector Type | Type-N (50 Ohm) |
| Display | 7-inch sunlight-readable color LCD touchscreen |
| Battery Life | Up to 3.5 hours of continuous operation |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 3.0 kg (6.6 lbs) |
| Data Storage | Internal flash memory with USB and SD card external storage support |
Anritsu S818A Options:
- S818A - Option 5 - RF Power Monitor (RF Detector not included)
| Model | S818A |
|---|

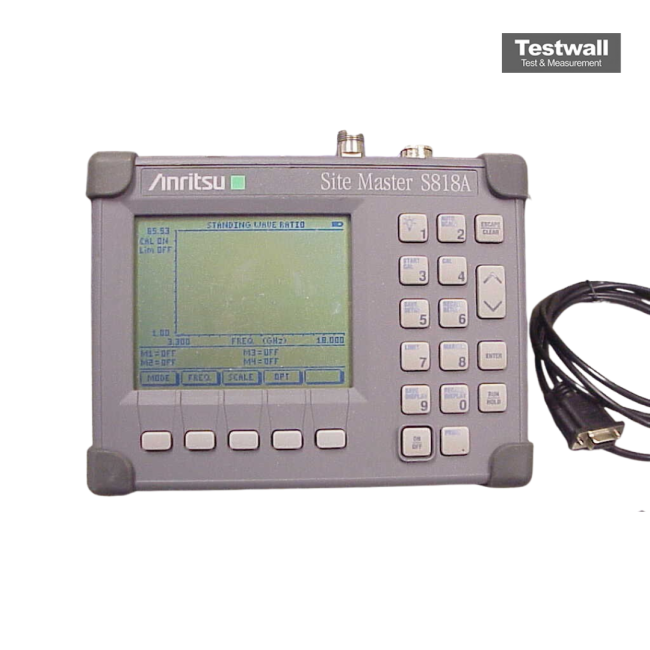

The Anritsu S818A is a member of the Site Master family, designed similarly to the S810A but with enhanced firmware and option sets for broader measurement and connector support. Operating over mid‑microwave frequencies, it offers synthesized sweep capability, distance‑to‑fault analysis, and return‑loss metrics with detailed graphical trace outputs. Its rugged and lightweight build ensures precision measurements for demanding field applications.
Well suited for antenna alignment and coax troubleshooting, the Anritsu S818A provides field technicians with efficient trace capture, storage, and interpretation, making it an essential tool for maintaining communication infrastructures.
Testwall can supply the used Anritsu S818A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S818A.
