Associated Research 7715
| Attribute | Value |
|---|---|
| Test Voltage Range | Up to 5 kVDC / 5 kVAC |
| Insulation Resistance Range | Up to 50 TΩ |
| Withstand Voltage (Hipot) Test | AC Hipot, DC Hipot, and Insulation Resistance Testing |
| Current Measurement Range | Up to 30 mA AC / 10 mA DC |
| Display | Large Digital LCD Display |
| Output Frequency | 50/60 Hz |
| Timer Range | 0.5 to 999 seconds |
| Power Supply | 115/230 VAC, 50/60 Hz |
| Safety Standards Compliance | UL, CSA, CE, IEC 60950, IEC 61010 |
| Interface / Connectivity | RS-232 Serial Interface for Remote Control and Data Acquisition |
| Model | Research |
|---|

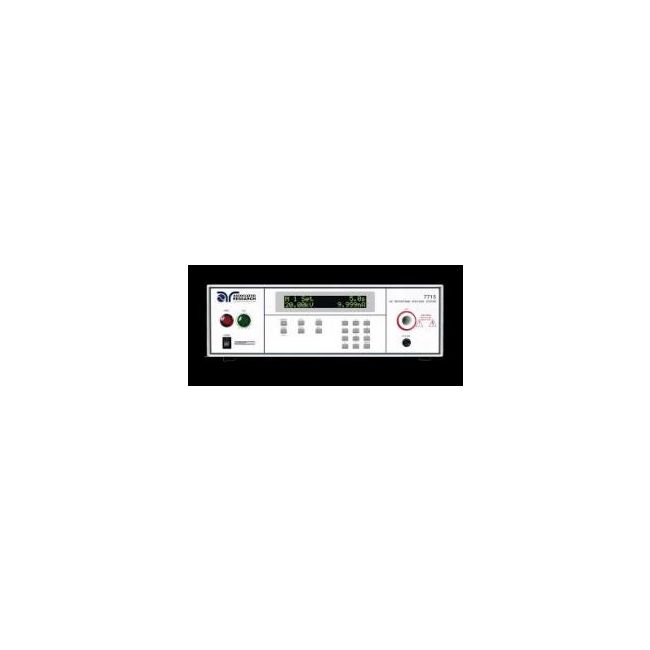

The Associated Research 7715 is a compact benchtop ground bond tester designed for manufacturers to ensure electrical safety with efficiency. It supports high-current ground bond testing up to 30A, delivering precise validation of grounding integrity. The unit features LED indicators for quick pass/fail assessment and offers simple setup with compatibility for automated systems.
With its lightweight, portable structure, the 7715 is ideal for both laboratory use and field applications. Its robust construction guarantees long-term durability while maintaining user-friendly operation and safety compliance.
Testwall can supply the used Associated Research 7715, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Associated Research 7715.
