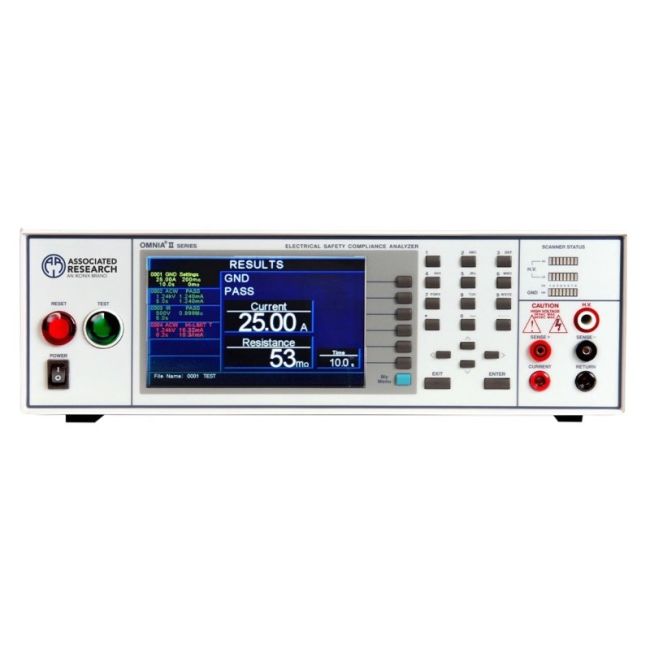

Associated Research OMNIA II 8256
| Attribute | Value |
|---|---|
| AC Hipot Test Voltage | Up to 5 kVAC |
| DC Hipot Test Voltage | Up to 6 kVDC |
| Insulation Resistance Test Voltage | Up to 1000 VDC |
| Ground Bond Test Current | Up to 30 A |
| Line Leakage Test | Up to 10 mA |
| Number of Test Steps | Up to 256 steps per sequence |
| Memory Storage | Up to 50 test sequences |
| Output Frequency | 50/60 Hz selectable |
| Interface | RS-232, Handler, USB |
| Power Requirements | 115/230 VAC, 50/60 Hz |
Associated Research OMNIA II 8256 Options:
- OMNIA II 8256 - Ethernet - Optional Ethernet Interface
- OMNIA II 8256 - GPIB - Optional GPIB Interface
- OMNIA II 8256 - 400/800 Hz - Optional 400/800 Hz Output Frequency for Dielectric Withstand Test Mode
| Model | OMNIA II 8256 |
|---|
The Associated Research OMNIA II 8256 is an advanced multi-function Electrical Safety Tester, engineered with AC Hipot 500VA, DC Hipot, Ground Bond, Ground Continuity, Insulation Resistance, Leakage Current, and Functional Run testing capabilities. Its automated design integrates cutting-edge safety technology and productivity-enhancing features for demanding compliance applications.
Ideal for manufacturers and testing environments, the OMNIA II 8256 ensures precision, reliability, and versatility across a wide range of electrical safety standards, providing complete confidence in test performance and user safety.
Testwall can supply the used OMNIA II 8256, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the OMNIA II 8256.
