Megger (AVO Biddle)
Megger ADX-15-RLC-PD
Automated Static Motor Analyzer w/ RLC & PD, 15 kV
Up to 15 kV AC Test Voltage Range
Resistance (R), Inductance (L), Capacitance (C), and Partial Discharge (PD) Measurement Capabilities
Less than 5 pC Partial Discharge Sensitivity
15 Hz to 400 Hz Frequency Range
Up to 15 kVA Power Output
| Attribute | Value |
|---|---|
| Test Voltage Range | Up to 15 kV AC |
| Measurement Capabilities | Resistance (R), Inductance (L), Capacitance (C), and Partial Discharge (PD) |
| Partial Discharge Sensitivity | Less than 5 pC |
| Frequency Range | 15 Hz to 400 Hz |
| Power Output | Up to 15 kVA |
| Capacitance Measurement Range | 1 pF to 100 µF |
| Dissipation Factor (tan δ) Accuracy | ±0.0001 (at 50/60 Hz) |
| Display / Interface | Touchscreen display with integrated software for real-time data analysis and reporting |
| Standards Compliance | IEC 60270, IEC 60060, IEEE 400 series |
| Power Supply Input | 90–264 V AC, 47–63 Hz, single phase |
Megger ADX-15-RLC-PD Options:
- ADX-15-RLC-PD - 1013-911 - Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only - 4 kV (ADX 4)
- ADX-15-RLC-PD - 1013-912 - Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only - 6 kV (ADX 6)
- ADX-15-RLC-PD - 1013-913 - Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only - 12 kV (ADX 12)
- ADX-15-RLC-PD - 1013-914 - Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only - 15 kV (ADX 15)
- ADX-15-RLC-PD - 1013-916 - ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests - 4 kV (ADX-4-RLC)
- ADX-15-RLC-PD - 1013-917 - ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests - 6 kV (ADX-6-RLC)
- ADX-15-RLC-PD - 1013-918 - ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests - 12 kV (ADX-12-RLC)
- ADX-15-RLC-PD - 1013-919 - ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests - 15 kV (ADX-15-RLC)
- ADX-15-RLC-PD - 1013-920 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests - 4 kV (ADX-4-RLC-PD)
- ADX-15-RLC-PD - 1013-921 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests - 6 kV (ADX-6-RLC-PD)
- ADX-15-RLC-PD - 1013-922 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests - 12 kV (ADX-12-RLC-PD)
- ADX-15-RLC-PD - 1013-923 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests - 15 kV (ADX-15-RLC-PD)
- ADX-15-RLC-PD - 1013-925 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests, includes Power Pack Interface - 4 kV (ADX-4-RLC-PD-PPI)
- ADX-15-RLC-PD - 1013-926 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests, includes Power Pack Interface - 6 kV (ADX-6-RLC-PD-PPI)
- ADX-15-RLC-PD - 1013-927 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests, includes Power Pack Interface - 12 kV (ADX-12-RLC-PD-PPI)
- ADX-15-RLC-PD - 1013-928 - ADX with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests, includes Power Pack Interface - 15 kV (ADX-15-RLC-PD-PPI)
- ADX-15-RLC-PD - 1014-110 - Footswitch - Operators initiate tests using the foot switch rather than the ADX front panel test switch during coil testing
- ADX-15-RLC-PD - 1014-109 - Megger Baker Test Status Indication Light Equipment Stop (TSIL-ES) - Remote accessory box for ADX equipment stop with a button press; displays flashing red light when actively testing and green light when no testing is in progress
- ADX-15-RLC-PD - 1014-106 - ADX Standard Test Lead Set
- ADX-15-RLC-PD - 1014-107 - ADX Custom Test Lead Set
- ADX-15-RLC-PD - 1014-115 - Pelicase
- ADX-15-RLC-PD - 1014-117 - ADX Test Lead - 15 kV Black
- ADX-15-RLC-PD - 1014-114 - ADX Backpack
- ADX-15-RLC-PD - 1014-111 - ADX Keyboard
- ADX-15-RLC-PD - 1014-116 - ADX Test Lead - 15 kV Red and labeling kit
- ADX-15-RLC-PD - 1014-112 - ADX Front Cover
| Model | ADX-15-RLC-PD |
|---|

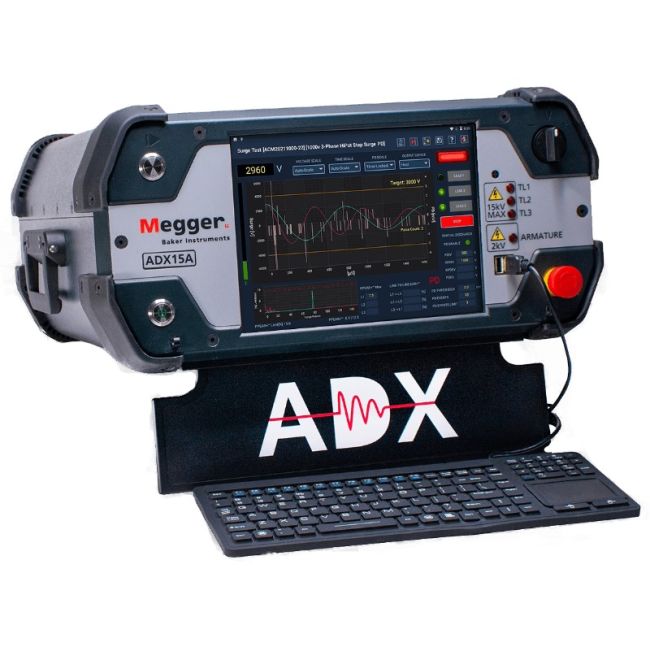

The Megger ADX-15-RLC-PD Automated Static Motor Analyzer is engineered for advanced motor diagnostics, featuring IEC61010-compliant test leads rated at 16 kV. It supports Resistance, Inductance, Capacitance (RLC), DC Insulation Resistance (IR, DA, PI), DC HiPot (Standard, Step, Ramp), Surge, and Partial Discharge testing. The unit offers multiple modes—Manual, Automatic, or Sequence—and integrates asset management and search capabilities.
With PowerDB Dashboard cloud connectivity and ADX software, operators benefit from seamless asset configuration, flexible test setups, and efficient route management. This system creates a reliable and operator-friendly turnkey testing environment.
Testwall can supply the used Megger ADX-15-RLC-PD, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger ADX-15-RLC-PD.
