Audio Precision

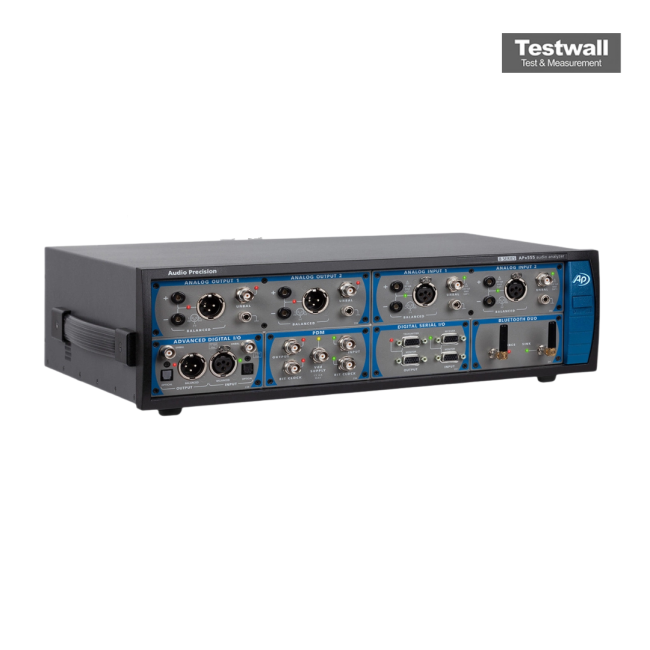

Audio Precision 3200
10 Hz to 204 kHz Frequency Range
Greater than 120 dB Dynamic Range
Less than 0.0005% Total Harmonic Distortion (THD+N)
1 mV to 26 Vrms (unbalanced), up to 52 Vrms (balanced) Output Voltage Range
100 kΩ (balanced and unbalanced) Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 204 kHz |
| Dynamic Range | Greater than 120 dB |
| Total Harmonic Distortion (THD+N) | Less than 0.0005% |
| Output Voltage Range | 1 mV to 26 Vrms (unbalanced), up to 52 Vrms (balanced) |
| Input Impedance | 100 kΩ (balanced and unbalanced) |
| Output Impedance | 40 Ω (balanced), 20 Ω (unbalanced) |
| Measurement Channels | 2-channel simultaneous analog input measurement |
| Interface/Connectivity | USB and Ethernet connectivity for PC control |
| Signal Generator | Dual-channel analog generator with sine, IMD, multitone, and noise signals |
| Operating System Compatibility | Compatible with Windows-based APx500 audio measurement software |
| Model | 3200 |
|---|
