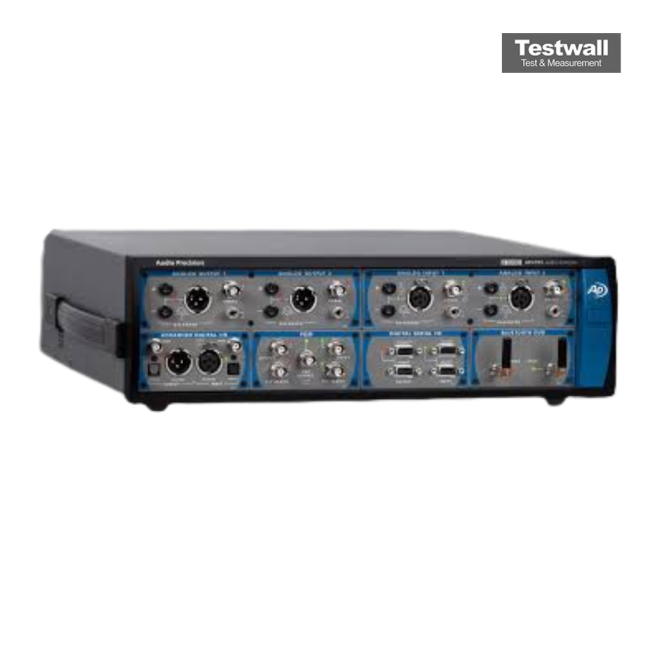

Audio Precision AN3200
10 Hz to 200 kHz Frequency Range
Greater than 120 dB Dynamic Range
Less than 0.0003% Total Harmonic Distortion + Noise (THD+N)
1 mVrms to 26 Vrms (balanced) Output Voltage Range
100 kΩ (balanced and unbalanced) Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 200 kHz |
| Dynamic Range | Greater than 120 dB |
| Total Harmonic Distortion + Noise (THD+N) | Less than 0.0003% |
| Output Voltage Range | 1 mVrms to 26 Vrms (balanced) |
| Input Impedance | 100 kΩ (balanced and unbalanced) |
| Output Impedance | 40 Ω (balanced), 20 Ω (unbalanced) |
| Analog Inputs/Outputs | Balanced XLR and unbalanced BNC connectors |
| Digital Interfaces | AES3, S/PDIF, TOSLINK, HDMI (ARC), Bluetooth |
| Sample Rate Support | Up to 192 kHz (digital audio interfaces) |
| PC Interface | USB 2.0 for control and data transfer via APx500 software |
| Model | AN3200 |
|---|
