Audio Precision

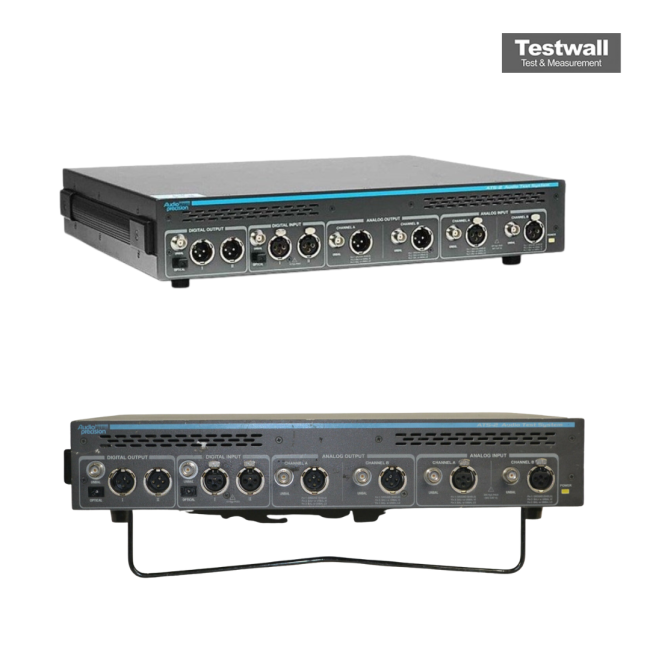

Audio Precision ATS-2
Audio Analyser.
10 Hz to 22 kHz Frequency Range
±0.01% of reading Frequency Accuracy
Greater than 120 dB Dynamic Range
Less than -100 dB (0.001%) at 1 kHz, 0 dBFS Total Harmonic Distortion + Noise (THD+N)
-100 dBFS to 0 dBFS Output Level Range
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 22 kHz |
| Frequency Accuracy | ±0.01% of reading |
| Dynamic Range | Greater than 120 dB |
| Total Harmonic Distortion + Noise (THD+N) | Less than -100 dB (0.001%) at 1 kHz, 0 dBFS |
| Output Level Range | -100 dBFS to 0 dBFS |
| Sample Rates Supported | 32 kHz, 44.1 kHz, 48 kHz |
| Interface | AES/EBU, S/PDIF, analog balanced and unbalanced I/O |
| Analyzer Input Impedance | 100 kΩ (analog balanced) |
| Residual Noise Floor | Less than -110 dBu (unweighted, 20 Hz to 20 kHz) |
| Power Requirements | 100–240 VAC, 50/60 Hz, 60 W maximum |
| Model | ATS-2 |
|---|
The Audio Precision is a Conveter-based Audio Analyser.
