Boonton 4500A
Peak Power Analyzer
100 kHz to 18 GHz Frequency Range
-70 dBm to +20 dBm Dynamic Range
2 Channels Number of Channels
Up to 100,000 readings per second Measurement Speed
Compatible with Boonton 4500B series wideband peak power sensors Sensor Compatibility
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 18 GHz |
| Dynamic Range | -70 dBm to +20 dBm |
| Number of Channels | 2 Channels |
| Measurement Speed | Up to 100,000 readings per second |
| Sensor Compatibility | Compatible with Boonton 4500B series wideband peak power sensors |
| Display | High-resolution color LCD touchscreen display |
| Trigger Modes | Internal, External, and Free Run trigger modes |
| Interfaces | GPIB, USB, and Ethernet (LAN) |
| Time Resolution | 100 ns time resolution for pulse measurements |
| Power Requirements | 100–240 VAC, 50/60 Hz, 150 W maximum |
| Model | 4500A |
|---|

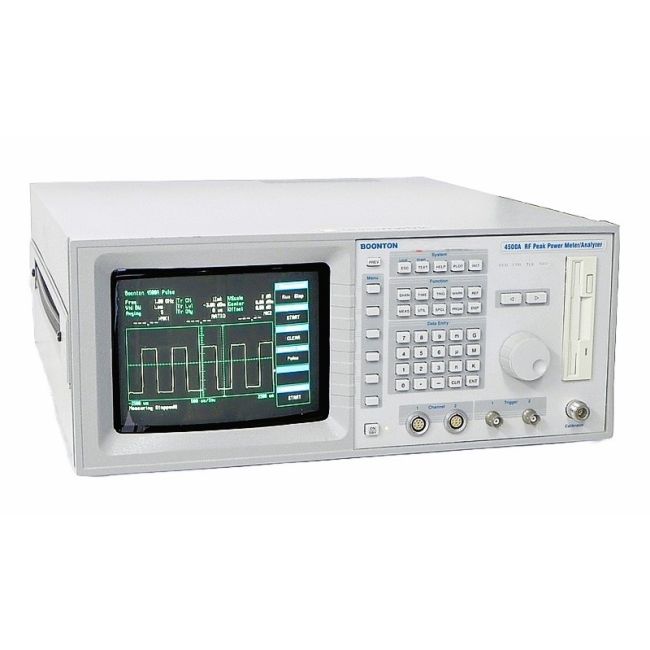

BOONTON 4500A
The Boonton 4500A Peak Power Analyzer was designed for analyzing RF signals with digital modulation, multiple carriers or complex coding techniques, Hard to measure HDTV and spread-spectrum signals like CDMA and WCDMA are easier to view and analyze with the Boonton 4500A and appropriate sensor.
Along with all the time domain measurements of Boonton's 4400A, the 4500A adds a number of statistical measurements that are made on a continuously sampled RF signal. If you opt for the second input channel option, you are able to monitor two sources, such as input and output power, simultaneously. Powerful math functions can be used to analyze the differences between channels, making difficult measurements like output stage compression and intermodulation distortion easy to identify and to correct.
Features of the Boonton 4500A include:
- >60dB dynamic range
- Frequency Range: 30 MHz - 40 GHz
- Dual Channel CDF/PDF
- 1 GHz NIST Traceable Calibrator
- Synchronus / Asynchronus measurements
- Color VGA Display
- 1.44MB Floppy Drive
