Keysight (Agilent) E9321A
| Attribute | Value |
|---|---|
| Sensor Type | peak and average (diode) |
| Frequency Range | 50 MHz to 6 GHz |
| Video Bandwidth | 300 kHz |
| Rise Time | 0.3 µs (VBW off) |
| Connector | Type-N male |
| Power Range | -65 to +20 dBm (average only mode), -50 to +20 dBm (normal mode) |
| Maximum Power | +23 dBm average, +30 dBm peak (<10 µs) |
| SWR | 1.12 max. at 50 MHz to 2 GHz, 1.16 max. at 2 to 6 GHz |
| Compatible Meters | EPM-P series E4416A/E4417A; P-series N1911A/N1912A; EPM series N1913A/N1914A, E4418B/E4419B (average only) |
| Dimensions | 38 × 30 × 150 mm |
| Weight | 0.2 kg |
Compatible power meters
Keysight Technologies E9321A Options:
- E9321A - A6J - Supplies ANSI/NCSL Z540-1-1994 test data including measurement uncertainties
- E9321A - 0B1 - Add manual set

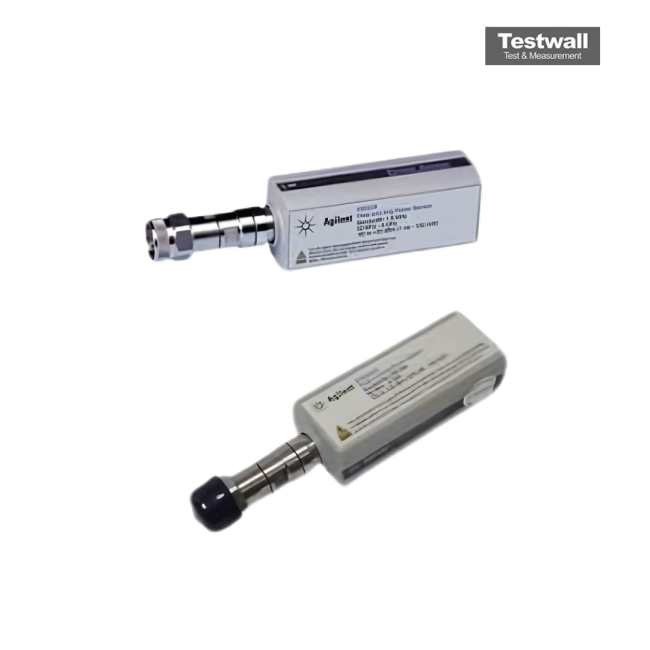

The Keysight (Agilent) E9321A power sensor offers 300 kHz video bandwidth, perfect for GSM, EDGE, and NADC applications, delivering fast measurement speeds up to 1000 corrected readings/sec via GPIB. It features wide dynamic range, precision type-N connector, and stores calibration data in EEPROM.
Designed to operate with EPM-P series (E4416A/17A) and P-Series (N1911A/12A) power meters, it ensures accurate power measurements with linearity, temperature, and bandwidth corrections.
Testwall can supply the used Keysight (Agilent) E9321A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9321A.
