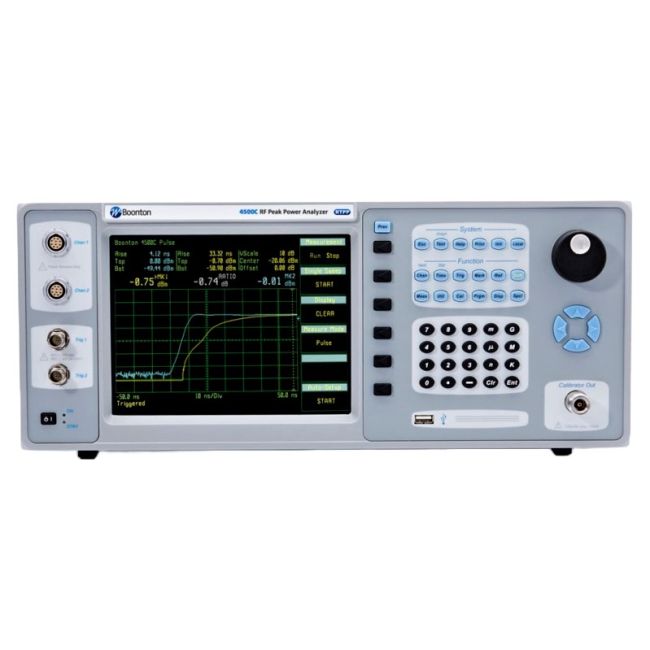

BOONTON 4500C Peak Power Analyzer
The Boonton 4500C Peak Power Analyzer is the instrument of choice for capturing, displaying, analyzing and characterizing microwave and RF power in both the time and statistical domains. The 4500C features 100 ps time base resolution, video bandwidth up to 125 MHz, flexible triggering and greater than 80 dB dynamic range without any range switching to cover the most demanding peak power measurement applications. Boonton Real-Time Power Processing ™ dramatically reduces the total cycle time for acquiring and processing power measurement samples.
The 4500C features a unique trigger system that allows users to qualify the trigger on a specific event or a specific delay time. In addition, Boonton's superior time management enables several other advantages. Pulse widths as narrow as 6 ns can be captured and characterized. With a viewing range up to 10 hours, users can monitor for temporal behavior such as amplifier droop as it heats up. The Boonton 4500C Peak Power Analyzer is ideal for design, verification, and troubleshooting of pulsed and noise-like signals used in commercial and military radar, electronic warfare (EW), wireless communications (e.g., LTE, LTE-A, and 5G), and consumer electronics (WLAN), as well as education and research applications.
Specifications for the BOONTON 4500C Peak Power Analyzer Include:
| Frequency Range | 30MHz - 40GHz |
| Measurement Range | -60dBm - +20dBm |
| RF Channel Video Bandwidth | 125MHz |
| Rise time | < 5 ns |
| Overall Accuracy | 0.2dB |
