Boonton 51079
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 18 GHz |
| Connector Type | Type-N (Male) |
| Impedance | 50 Ohms |
| Dynamic Range | Up to 80 dB |
| Power Sensor Type | Diode-Based Power Sensor |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +75°C |
| Maximum Input Power | +20 dBm (100 mW) |
| Measurement Range | -60 dBm to +20 dBm |
| Interface/Compatibility | Compatible with Boonton Power Meters (USB/GPIB) |
| Model | 51079 |
|---|

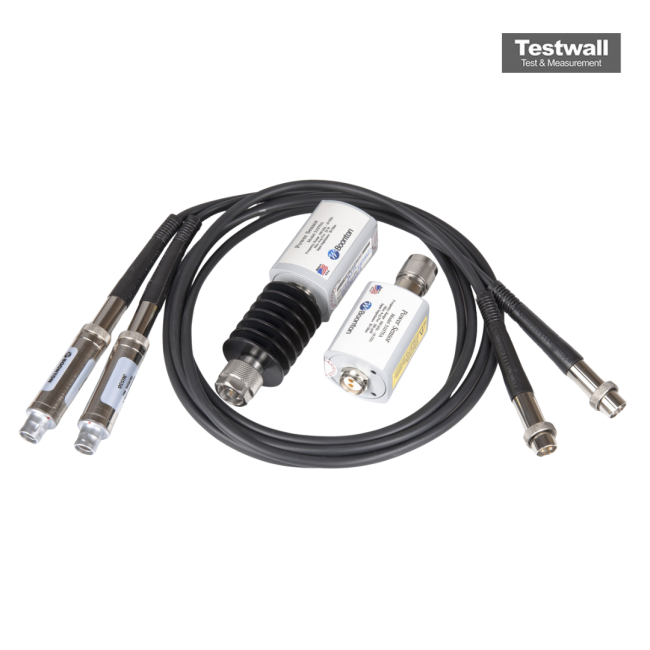

The Boonton 51079 power sensor features a broad frequency coverage from 500 kHz to 18 GHz and a dynamic measurement range of –50 dBm to +40 dBm, delivering precision power analysis for demanding RF applications. Utilizing high-sensitivity InGaAs detector diodes, it offers rapid rise times, a wide dynamic range, and low measurement uncertainty. The durable housing and precision temperature compensation further enhance long-term stability and repeatable readings across CW and pulsed signals.
This sensor seamlessly integrates via USB interface and includes intuitive software support, making it ideal for RF amplifier testing, communication system validation, and automated test benches requiring compact, high-accuracy power measurements.
Testwall can supply the used Boonton 51079, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Boonton 51079.
