Rohde & Schwarz NRP-Z57
| Attribute | Value |
|---|---|
| Sensor Type | thermocouple |
| Frequency Range | DC to 67 GHz |
| Connector | 1.85 mm male |
| Interfaces | USB (full speed) |
| Power Range | 300 nW to 100 mW (-35 to +20 dBm) |
| Maximum Power | 300 mW average, 10 W peak (1 µs) |
| SWR | <1.03 (DC to 100 MHz), <1.06 (to 2.4 GHz), <1.13 (to 12.4 GHz), <1.16 (to 18 GHz), <1.22 (to 26.5 GHz), <1.28 (to 40 GHz), <1.30 (to 50 GHz), <1.35 (to 67 GHz) |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
Compatible power meters

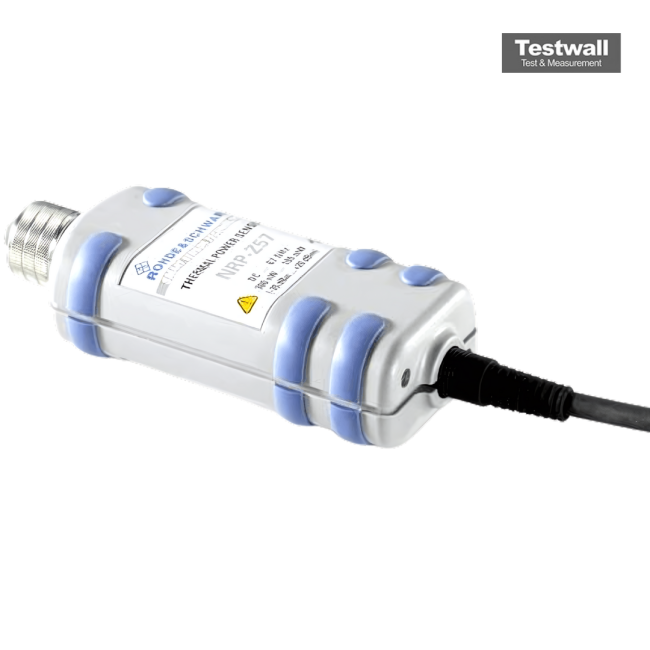

The Rohde & Schwarz NRP-Z57 is a thermo-electric power sensor designed for high-frequency applications from DC up to 67 GHz. It supports power measurement ranges from 300 nW to 100 mW (equivalent to -35 dBm to +20 dBm) and is equipped with a precise 1.85 mm male RF connector, ensuring accuracy and stability in high-frequency environments.
Ideal for RF power measurement and calibration tasks, the NRP-Z57 supports a wide dynamic range, making it a versatile tool in advanced RF test systems.
Testwall can supply the used Rohde & Schwarz NRP-Z57, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z57.
