Boonton 55006
Wideband USB Power Sensor, 50 MHz to 6 GHz, -60 to +20 dBm
100 kHz to 18 GHz Frequency Range
-70 dBm to +20 dBm Dynamic Range
Type N (Female) Connector Type
CW and Modulated Signals Measurement Mode
Diode-Based RF Power Sensor Sensor Type
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 18 GHz |
| Dynamic Range | -70 dBm to +20 dBm |
| Connector Type | Type N (Female) |
| Measurement Mode | CW and Modulated Signals |
| Sensor Type | Diode-Based RF Power Sensor |
| Impedance | 50 Ohms |
| VSWR | 1.15:1 (typical) |
| Operating Temperature | 0°C to +55°C |
| Interface Compatibility | Compatible with Boonton 4500B and 4540 Peak Power Analyzers |
| Calibration Factor | Stored calibration data via EEPROM |
| Model | 55006 |
|---|

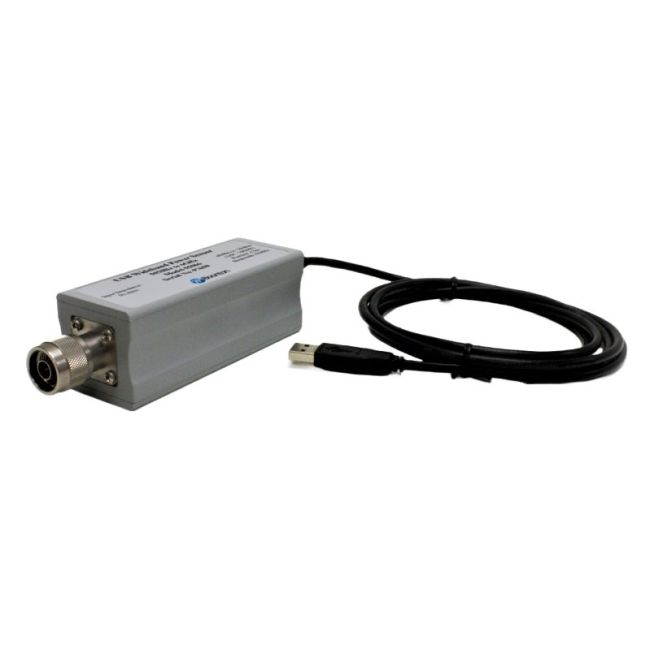

BOONTON 55006 Wideband USB Power Sensor
Built with Boonton's Real-Time Power Processing technology, the 55006 Wideband USB power sensor offers speed and accuracy never before seen in a USB form factor. It is ideal for manufacturing, design, research, and service in commercial and military applications such as telecommunications, avionics, RADAR, and medical systems. They are the instrument of choice for fast, accurate and highly reliable RF power measurements, equally suitable for product development, compliance testing, and site monitoring applications.
Specifications for the BOONTON 55006 Wideband USB Power Sensor Include:
| Frequency Range | 50 MHz to 6 GHz |
| Dynamic Range | -60 to +20 dBm |
| Rise time | 3 ns |
| Video Bandwidth | 195 MHz/350 kHz |
