California Instruments TA0015
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 - 300 VAC |
| Output Power | 15 kVA |
| Output Frequency Range | 45 - 500 Hz |
| Number of Phases | Single Phase / Three Phase |
| Input Voltage | 208 VAC / 220 VAC / 230 VAC |
| Total Harmonic Distortion (THD) | Less than 0.5% |
| Current Output (Max) | 50 A |
| Programming Interface | IEEE-488 (GPIB) / RS-232 |
| Form Factor | Rack Mount |
| Cooling Method | Forced Air Cooling |
California Instruments TA0015 Options:
- TA0015 - HF - Increases the maximum output frequency range to 905Hz
- TA0015 - HF-FC - Adds the HF option and changes the frequency accuracy to ±0.25% of program frequency
- TA0015 - LKM - Clock and Lock, Master
- TA0015 - LKS - Clock and Lock, Auxilliary
- TA0015 - AVSTD - Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C
- TA0015 - AVALL - Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C, B787B3-0147, AMD24C
- TA0015 - MIL1399 - MIL-STD 1399-300B Shipboard Power Test
- TA0015 - LNS - Synchronizes the output frequency to the input line frequency
- TA0015 - GPIB - GPIB Interface
- TA0015 - XVC - Optional AC coupled voltage range
- TA0015 - XVC440 - Optional AC coupled output range 0-440 Vrms L-N, 42 Arms max per phase, 15kVA
| Model | TA0015 |
|---|

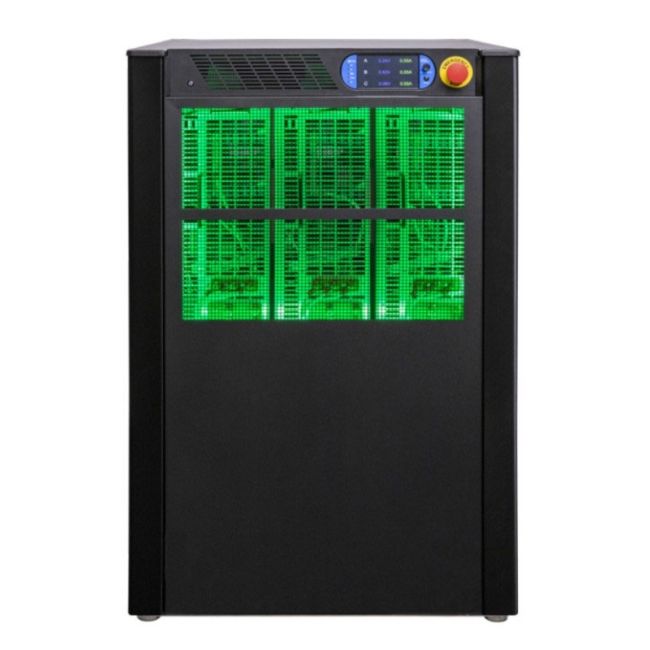

California Instruments TA0015 Programmable AC/DC Source
The California Instruments TA0015 Programmable AC/DC Source combines intelligence and flexibility with high power to create an advanced platform of AC solutions. Using a state-of-the art SiC power switching architecture and Digital Signal Processing, the TA0015 combines a robust, high-power AC/DC source with an advanced power analyzer in a single floor standing chassis. The TA0015 covers a wide spectrum of single and multi-phase AC or single channel and multi-channel DC power applications at an affordable cost. With add-on test application routines for military and commercial avionics testing, the Tahoe Series can fulfill your power test requirement.
The California Instruments TA0015 can be operated completely from its menu driven front panel controller. The full color touch display shows menus, setup data, and read-back measurements. RS-232C, USB and LAN remote control interfaces and instrument drivers for popular ATE programming environments are available. This allows the TA0015 to be easily integrated into an automated test system. With support for high crest factor loads, the TA0015 can drive difficult nonlinear loads with ease. Since many modern products use switching power supplies, they tend to pull high repetitive peak currents.
Specifications for the California Instruments TA0015 Programmable AC/DC Source Include:
| AC Voltage (Low/High) | 0-166 V/0-333 V |
| AC Cur Per Phase (Low/High) | 125 A/62.5 A |
| Total Power | 15kVA Single Phase |
| Frequency Range | 16-550Hz (up to 905Hz HF option) |
