Centellax
Centellax TG1B1-A
10G BERT, PRBS generator and error detector, 0.5 to 12.5 Gb/s
0.5 to 12.5 Gb/s (external clock) Data Rate
9.85 to 11.35 Gb/s Internal Clock
5 PRBS patterns Patterns
Differential or single-ended Outputs/Inputs
High-UI jitter injection for stressed-eye testing Jitter Injection
| Attribute | Value |
|---|---|
| Data Rate | 0.5 to 12.5 Gb/s (external clock) |
| Internal Clock | 9.85 to 11.35 Gb/s |
| Patterns | 5 PRBS patterns |
| Outputs/Inputs | Differential or single-ended |
| Jitter Injection | High-UI jitter injection for stressed-eye testing |
| Remote Interface | GPIB |

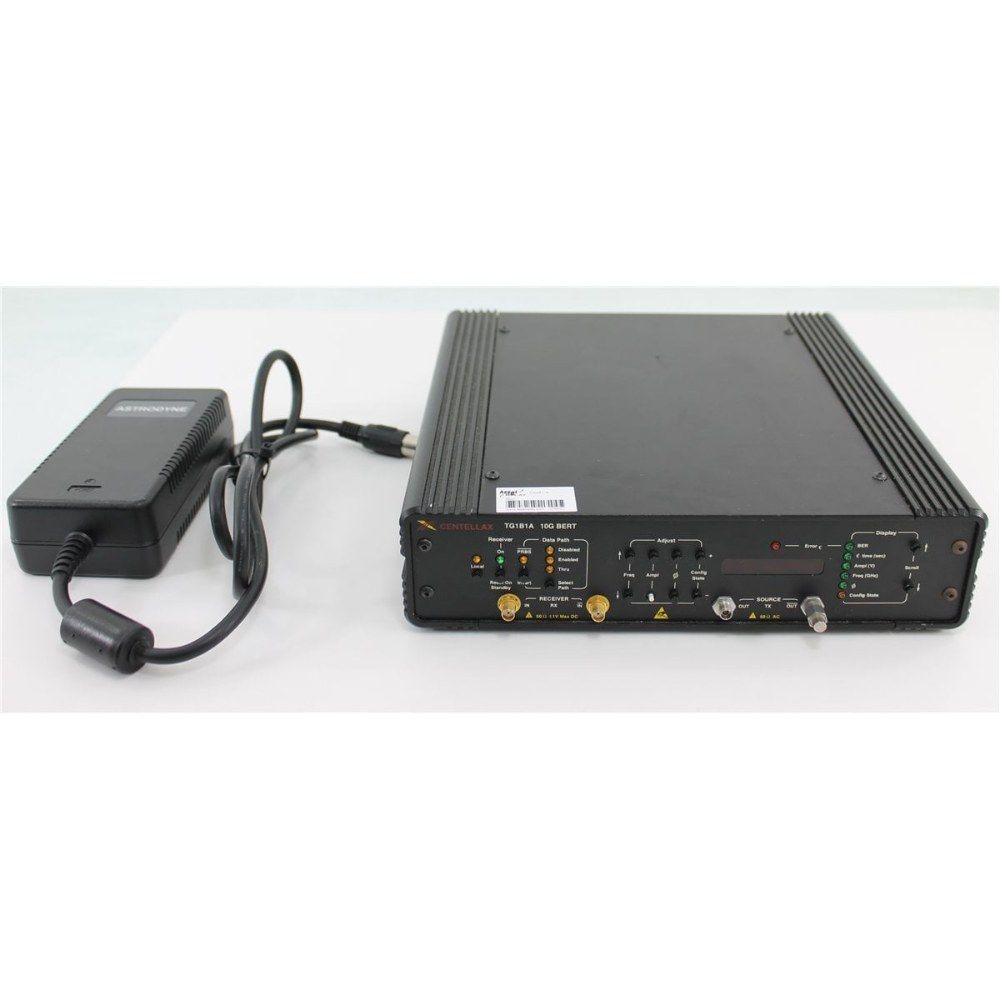

The Centellax TG1B1-A is a compact 10G bit error rate tester combining a PRBS pattern generator and error detector, covering 0.5 to 12.5 Gb/s with an external clock and 9.85 to 11.35 Gb/s from its internal clock. It has differential or single-ended inputs and outputs, programmable output amplitude and high-UI jitter injection for stressed-eye testing.
Controlled by front-panel push buttons or GPIB with a LabVIEW driver, aimed at automated production-line testing, manufacturing and R&D.
Testwall can supply the used Centellax TG1B1-A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Centellax TG1B1-A.
