Chroma

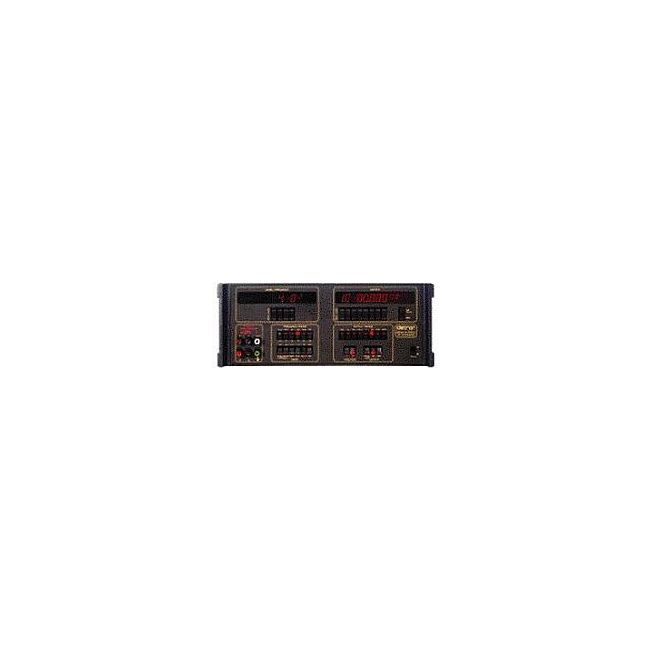

Chroma 4705
10 Hz – 1 MHz Frequency Range
Z, Y, θ, R, X, G, B, L, C, D, Q, DCR, |Vac|, |Iac| Measurement Parameters
0.05% Basic Accuracy
5 mV – 2 V RMS Test Signal Level (Voltage)
50 µA – 20 mA RMS Test Signal Level (Current)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz – 1 MHz |
| Measurement Parameters | Z, Y, θ, R, X, G, B, L, C, D, Q, DCR, |Vac|, |Iac| |
| Basic Accuracy | 0.05% |
| Test Signal Level (Voltage) | 5 mV – 2 V RMS |
| Test Signal Level (Current) | 50 µA – 20 mA RMS |
| DC Bias Voltage | 0 – ±40 V |
| DC Bias Current | 0 – ±100 mA |
| Impedance Range | 1 mΩ – 100 MΩ |
| Interface | USB, LAN, GPIB, Handler |
| Display | 7-inch TFT LCD Color Display |
| Model | 4705 |
|---|
