Fluke 718-1G
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 1 psi (0 to 69 mbar) |
| Pressure Type | Gauge |
| Accuracy | ±0.05% of full scale |
| Pump Type | Internal hand pump |
| Pressure Medium | Air (pneumatic) |
| Display | Dual LCD display |
| Pressure Units | psi, bar, mbar, kPa, inH2O, cmH2O, inHg, mmHg, kg/cm² |
| Power Supply | 9V alkaline battery (6F22) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Weight | 680 g (1.5 lb) |
| Model | 718-1G |
|---|

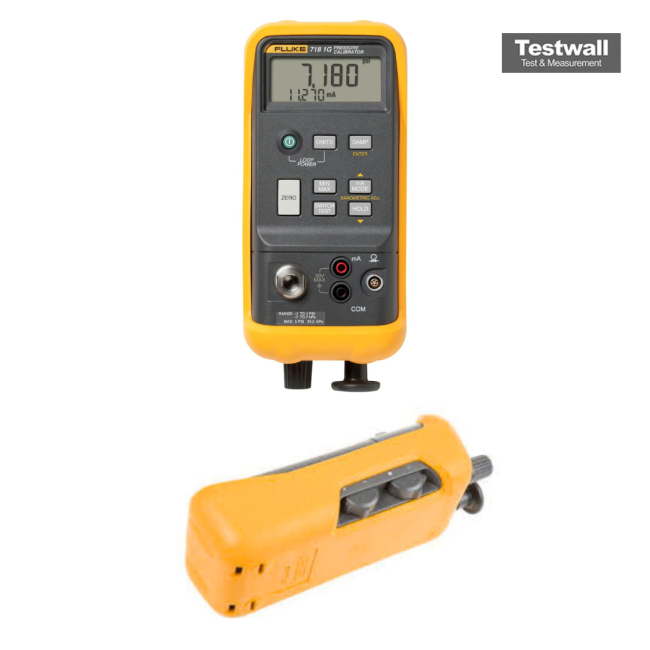

Fluke 718-1G Pressure Calibrator
The Fluke 718-1G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-1G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-1G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-1G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-1G Pressure Calibrator Include:
| Range | -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa) |
| Resolution | 0.0001 psi, 0.001 mbar |
| Over pressure | 5 x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
