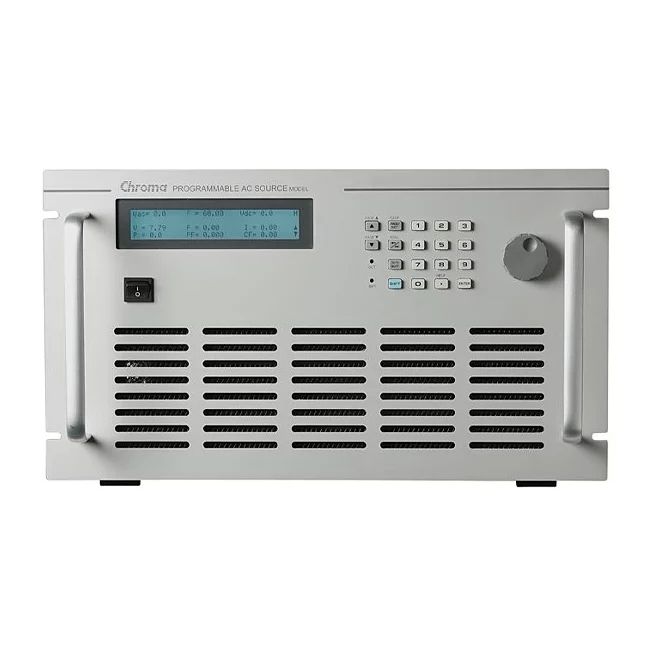

Chroma 61505
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 300 Vrms |
| Output Frequency Range | 15 – 1000 Hz |
| Output Power Capacity | 500 VA |
| Output Current (Max) | 4.2 Arms / 8.4 Apk |
| Voltage Regulation | ≤ 0.1% + 0.1 V |
| Total Harmonic Distortion (THD) | ≤ 0.5% (Linear Load) |
| Input Voltage | Single Phase 115V / 230V AC, 50/60 Hz |
| Waveform Type | Sine Wave |
| Programming Interface | RS-232, GPIB (Optional) |
| Operating Temperature | 0°C to 40°C |
Chroma 61505 Options:
- 61505 - A615001 - Remote Interface Board for Model 61500/61600 Series (External V Input, RS-232 Interface, GPIB Interface)
- 61505 - A610004 - Universal Socket Center for Model 6512/6520/6530/6560/6415/6420/6430/61500/61600 Series
- 61505 - A615007 - Softpanel for Model 61500/61600 Series
- 61505 - A615008 - DC Noise Filter for Model 61500/61600 Series
- 61505 - A600009 - GPIB Cable (200cm)
- 61505 - A600010 - GPIB Cable (60cm)
| Model | 61505 |
|---|
The AC+DC modes extend the applications beyond pure AC voltage to include DC components, making it ideal for laboratory testing of DC offset. The Chroma 61505 AC power sources provide maximum flexibility—from R&D design verification and quality assurance to production testing.
With versatile programmable voltage functions and user-friendly operation software, the 61505 AC source allows users to perform pre-compliance tests against IEC 61000-4-11 and compliance tests against IEC 61000-4-13, -4-14, and -4-28 immunity test regulations. Thanks to its low impedance and low voltage harmonic characteristics, model 61505 can serve as a standard source for 230V/16A IEC 61000-3-2 testing.
The Chroma 61505 has a built-in 16-bit measurement circuit and firmware utilities to measure both steady and transient responses of:
- True RMS voltage
- Current
- True power
- Apparent power (VA)
- Reactive power (VAR)
- Power factor
- Current crest factor
- Peak repetitive current
- Inrush current
