Fluke 719PRO-150G
| Attribut | Wert |
|---|---|
| Druckbereich | 0 bis 150 psi (0 bis 10,34 bar) |
| Druckmedium | Luft (pneumatisch) |
| Ausgangsgenauigkeit | ±0,025 % des Messbereichs |
| Integrierte Pumpe | Elektrische Druckpumpe mit internem Druckregler |
| Stromversorgung | 6 AA-Batterien (Alkali) oder optionales Netzteil |
| Druckanschluss | 1/4 NPT Innengewinde |
| Anzeige | Großes Backlit-LCD-Display |
| Druckeinheiten | psi, bar, kPa, mbar, kg/cm², inH₂O, inHg, mmHg, cmH₂O |
| Betriebstemperatur | -10 °C bis +50 °C |
| Schutzklasse | IP40 |
Fluke 719PRO-150G Options:
- 719PRO-150G - Fluke-719Pro-30G - Electric Pressure Calibrator, 30 PSIG
- 719PRO-150G - Fluke-719Pro-300G - Electric Pressure Calibrator, 300 PSIG
- 719PRO-150G - Fluke-720RTD - RTD Probe for 721 and 719Pro
- 719PRO-150G - Fluke-720URTDA - Universal RTD adapter for Fluke-721 and 719Pro
- 719PRO-150G - Fluke-71XTrap - Liquid and dirt trap for 718 and 719Pro
| Model | 719PRO-150G |
|---|

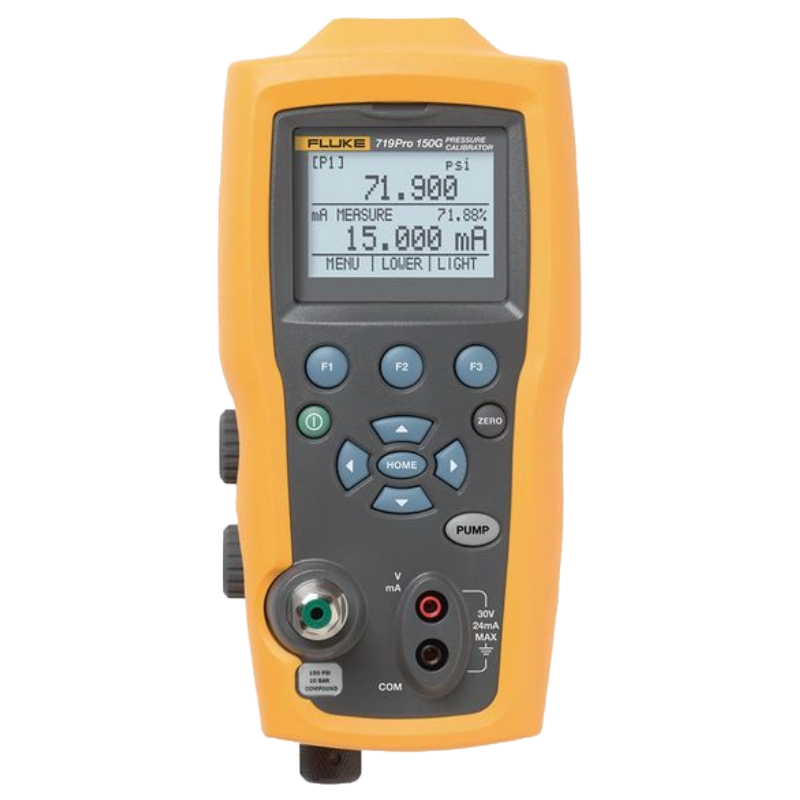

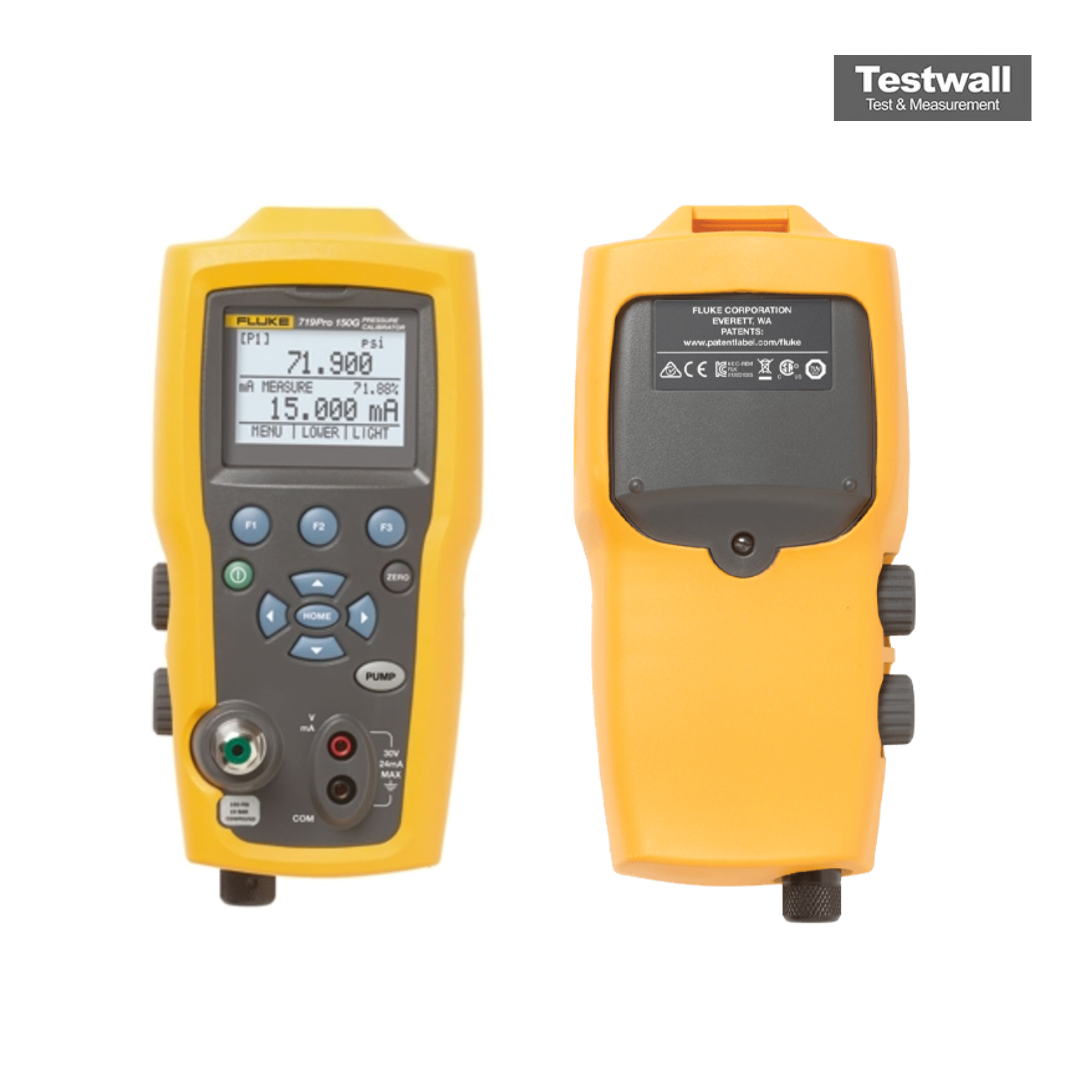

Fluke 719PRO-150G Electric Pressure Calibrator
The Fluke 719PRO-150G Electric Pressure Calibrator is the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges. It includes a full functioning loop calibrator that sources, simulates and measures mA signals and more. The large backlit screen displays three parameters at once: pressure measurement from internal or external sensor, sourced/simulated or measured mA values and temperature measured by optional RTD probe.
Fluke 719PRO-150G Electric Pressure Calibrator unique integrated electric pump for one handed pressure calibration. Test pressure switches easily with easy-to-use switch test function. Precision pressure adjust vernier for easy and accurate pressure calibration. This rugged durable device is built to withstand harsh working environments. It features programmable pump limit to eliminate over-pressurization and allows user to program target pressures for pumping. Fluke 719PRO-150G Electric Pressure Calibrator delivers exceptional pressure measurement accuracy with a best-in-class uncertainty of 0.025%.
Specifications for the Fluke 719PRO-150G Electric Pressure Calibrator Include:
| Range | -12 to 150 PSI /-0.8 to 10 bar |
| Resolution | 0.01 PSI, 0.001 bar |
| Accuracy | ± 0.025 % of full scale, 6 months, ± 0.035 % of full scale, 1 year |
| mA dc range | 0-24 mA dc (simulation and measurement) |
