EA Elektro-Automatik BCTS 10300
| Attribute | Value |
|---|---|
| Voltage Range | 0 – 10 V |
| Current Range | 0 – 300 A |
| Power Rating | 3000 W |
| Number of Channels | Single Channel |
| Operating Mode | Battery Charge/Test/Simulation System |
| Interface | USB, Ethernet, CAN bus |
| Programming Resolution (Voltage) | 1 mV |
| Programming Resolution (Current) | 10 mA |
| Input Supply Voltage | 208 – 240 VAC, Single Phase |
| Cooling Method | Forced Air Cooling (Fan) |
EA Elektro-Automatik BCTS 10300 Options:
- BCTS 10300 - 2000VDC - Voltage range extended to 0-2000 VDC (standard is 0-1500 VDC)
- BCTS 10300 - 24-BIT - 24-bit resolution for Power Control and Measurement Module (PCMM) data acquisition (standard is 16-bit)
- BCTS 10300 - WATER-COOL - Water cooling system thermal management (standard is forced air cooling)
| Model | BCTS 10300 |
|---|

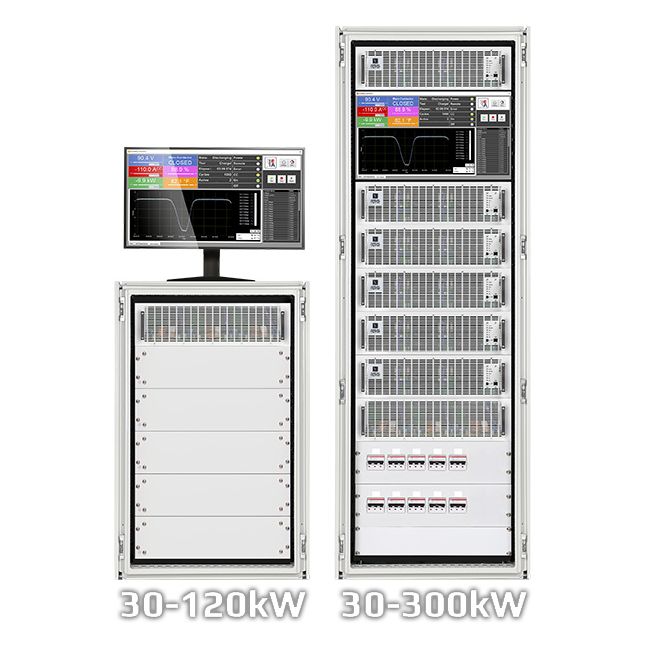

ELEKTRO-AUTOMATIK BCTS 10300 Battery Cycler & Test System
The EA-BCTS 10300 provides a complete solution for battery cycling and testing. Tests include drive cycle simulations and insulation resistance in addition to battery cycling. The system can control an environmental chamber and interface to the battery management system through the CAN bus interface. The drag-and-drop system software enables quick and easy test setup and execution. EA bidirectional power supplies comprise the core of the EA-BCTS 10300 Battery Cycler and Test System. These instruments operate in two quadrants to combine a power supply and an electronic load. With power capacities from 5 kW to 60 kW in a single instrument, the bidirectional power supplies can assemble into systems as large as 3.84 MW.
The Power Control and Measurement Module (PCMM) on the EA-BCTS 10300 monitors the battery pack and executes additional tests. EA-BCTS battery test software controls all battery cycling and battery test operations and the software uses a Widget-based approach to allow a user-configurable display. Set up and test execution is simple and fast and allows complete tests on a battery or another power source, such as a fuel cell. Along with active power factor correction and a high frequency switching power supply topology which yields over 90% sourcing efficiency, the EA-BCTS 10300 returns absorbed power to the AC power grid with up to 96.5% efficiency. This allows the supply to run at a lower temperature, reducing cooling infrastructure requirements and enhancing reliability.
Specifications for the ELEKTRO-AUTOMATIK BCTS 10300 Battery Cycler & Test System Include:
| Voltage Range | 0 - 1500 VDC (0-2000 V optional) |
| Cur Range (single cabinet) | ± 2400 A |
| Max Power Range (single rack) | 300 kW |
| Regeneration To The Grid | 96.5 % |
