ENI 420LA
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz – 150 MHz |
| Output Power | 20 Watts |
| Gain | 50 dB minimum |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input Power Requirement | 105–125 VAC, 50/60 Hz |
| Noise Figure | 8 dB typical |
| Harmonic Distortion | -10 dBc at rated output |
| Connector Type | BNC (input), Type N (output) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Model | 420LA |
|---|

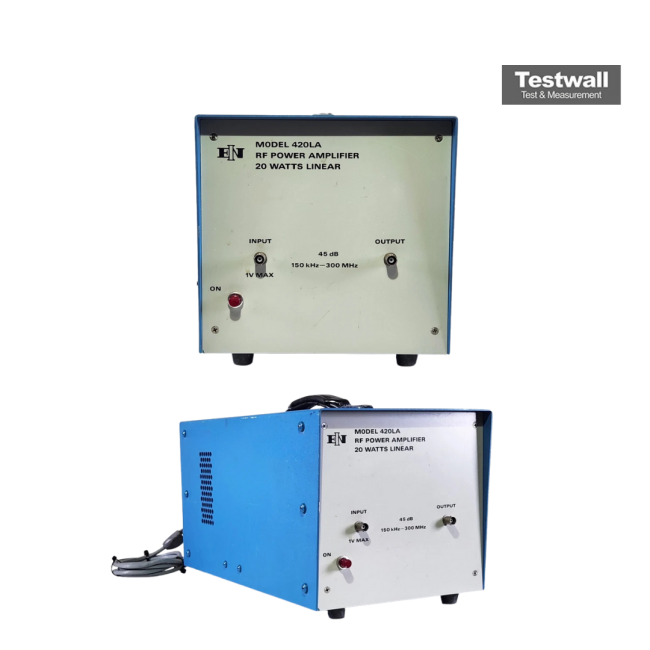

The ENI 420LA is a high-stability Class A linear power amplifier offering 20 W of output from 150 kHz to 300 MHz. It delivers 45 dB of flat gain with 50 Ω input/output impedance, requiring just 1.0 mW of drive for full output. Its rugged, shielded chassis measures 9.75″ H × 9.55″ W × 17.5″ D, weighs 29 lbs, and runs on 115/230 VAC ±10 %, 50–60 Hz at 325 W.
Engineered for laboratory research, signal conditioning, RF component testing, and system integration, the ENI 420LA ensures low distortion, stable operation, and repeatable results across its entire bandwidth. Its precision performance makes it ideal for critical measurement and development workflows.
Testwall can supply the used ENI 420LA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the ENI 420LA.
