3Z Telecom RF Vision
Antenna Alignment Tool
700 MHz - 4200 MHz Rango de frecuencia
Antenas direccionales y omnidireccionales Tipo de antena compatible
Pantalla táctil a color con visualización gráfica en tiempo real Interfaz de usuario
Alineación y optimización de antenas de telecomunicaciones Aplicaciones soportadas
±1 dB Precisión de medición
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 700 MHz - 4200 MHz |
| Tipo de antena compatible | Antenas direccionales y omnidireccionales |
| Interfaz de usuario | Pantalla táctil a color con visualización gráfica en tiempo real |
| Aplicaciones soportadas | Alineación y optimización de antenas de telecomunicaciones |
| Precisión de medición | ±1 dB |
| Conectividad | Bluetooth y USB para transferencia de datos |
| Alimentación | Batería recargable de iones de litio |
| Duración de la batería | Hasta 8 horas de uso continuo |
| Condiciones de operación | Temperatura de -10 °C a +55 °C, resistente a la intemperie |
| Dimensiones y peso | Diseño compacto y portátil, apto para uso en campo |
| Model | Telecom |
|---|

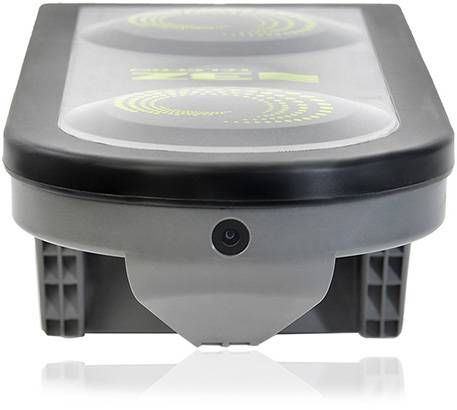

Built-in Camera
Never been done before! For the first time an antenna alignment tool not only aligns the antenna but it will show you where it is pointing. It provides a line of sight image that is mechanically aligned with the tool.The world around your antennas is constantly changing, RF Vision allows you to capture these changes. New building constructions, growing tree lines, etc. will degrade your coverage objectives and create unhappy customers. Only RF Vision will allow you to see these obstructions and give Engineers ability to optimize antenna orientations.Easy Bullseye Alignment
We embedded augmented reality into the 5-inch LED touch screen display, the tower tech can perfectly align the antenna by simply aligning the crosshair with the bullseye, that makes antenna alignment easier than ever before.
Line-of-Sight Reports
RF Vision will generate a single comprehensive PDF report with line-of-sight images for each antenna being aligned. It is possible that you perfectly align your antenna but not achieve its coverage objective. Line-of-sight reports allow RF Engineers to identify obstacles that may impact customer satisfaction.
Smaller is Better
RF V????n is the ?m?ll??t ?nd m??t ??m???t ?nt?nn? ?l?gnm?nt t??l available. It is 30% ?m?ll?r than even our ?r?v??u? model. With towers getting more crowded and equipment requirements increasing, your tower technician will appreciate its reduced size.
Smaller But 3x More Powerful
With dual frequency GNSS technology, RF Vision measures ???h ??t?ll?t? twice while connecting to GPS, GLONASS, BEIDOU* and GALILEO*. These additional satellite signals will ensure usability even in highly d?n?? urb?n ??t??? ?nd/or ?r?wd?d t?w?r?.
All Weather Enclosure
RF Vision is designed to withstand all weather conditions. Made with strengthened polycarbonate hard plastic and a protective rubber bumper that makes it virtually heat and impact resistant. It is designed for rugged use and is meant to last.
