Additel ADT685EX-10-GP60K
| Atributo | Valor |
|---|---|
| Rango de presión | 0 a 60.000 psi (0 a 4.137 bar) |
| Tipo de presión | Manométrica (GP) |
| Exactitud | ±0,05% del fondo de escala |
| Clasificación de seguridad | ATEX/IECEx - Zona 0, Categoría 1G (EX) |
| Señal de salida | 4-20 mA con protocolo HART |
| Alimentación | 10,5 a 42 VDC |
| Conexión de proceso | 1/2" NPT macho |
| Temperatura de trabajo | -40 °C a +85 °C |
| Grado de protección | IP67 |
| Material del diafragma | Acero inoxidable 316L |
Additel ADT685EX-10-GP60K Options:
- ADT685EX-10-GP60K - N - Pressure Port: 1/4NPT male
- ADT685EX-10-GP60K - N2 - Pressure Port: 1/2NPT male
- ADT685EX-10-GP60K - B - Pressure Port: 1/4BSP male
- ADT685EX-10-GP60K - B2 - Pressure Port: 1/2BSP male
- ADT685EX-10-GP60K - M - Pressure Port: M20X1.5 male
- ADT685EX-10-GP60K - AF - Pressure Port: Autoclave F-250-C female
- ADT685EX-10-GP60K - AM - Pressure Port: Autoclave M-250-C male
- ADT685EX-10-GP60K - DL - Data Logging (10,000,000 records, user-selectable rate from 1 to 99,999 second intervals)
- ADT685EX-10-GP60K - 232 - Comm Port: RS-232
| Model | ADT685EX-10-GP60K |
|---|

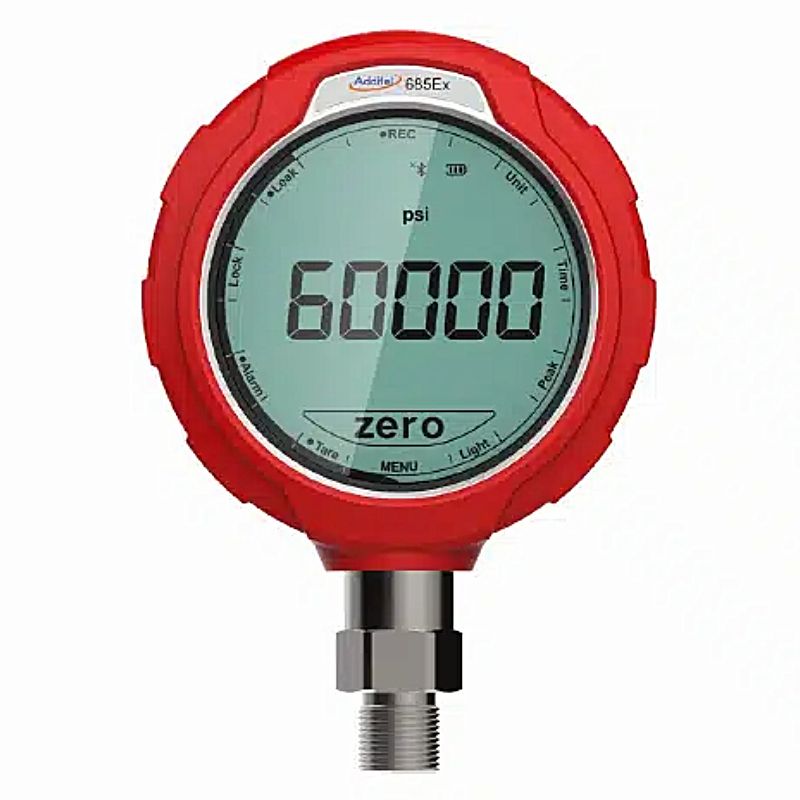

ADDITEL ADT685EX-10-GP60K Digital Pressure Gauge
The Additel ADT685EX-10-GP60K Digital Pressure Gauge is a high performance, intrinsically safe, and modern digital pressure gauge on market. The all new modern menu structure and control interface bring a new and refreshing experience to gauge work. With microprocessor technology, state-of-the-art silicon pressure sensors and plenty of onboard storage capacity, this attractive and fully temperature compensated gauge provides high performance, durability and reliability.
Additel ADT685EX-10-GP60K Digital Pressure Gauge features 3.4 inch touchscreen display which comes with a protective replaceable tempered glass screen and is a refreshing update to the traditional push button or blister pad interface. Additel ADT685EX-10-GP60K contains a built-in barometer sensor which allows for the pressure reading to display in gauge pressure or absolute pressure with a simple menu selection. Additel ADT685EX-10-GP60K Digital Pressure Gauge also comes with data-logging option and you can record more than 10M records including date, time, pressure and temperature readings.
Specifications for the ADDITEL ADT685EX-10-GP60K Digital Pressure Gauge Include:
| Pressure Range | 60,000 psi (4,200 bar) |
| Accuracy (%FS) | 0.1 (0.2) |
| Burst Pressure | 1.1× |
| Data Logging | 10,000,000 records |
