Additel ADT760-LLP
| Atributo | Valor |
|---|---|
| Rango de presión | Vacío hasta 110% del rango nominal |
| Exactitud | ±0,02% del fondo de escala |
| Tipos de presión | Presión manométrica, absoluta y diferencial |
| Fuente de presión | Bomba de presión de baja presión integrada |
| Rango de generación de presión | Vacío hasta 25 bar (363 psi) |
| Pantalla | Pantalla LCD de alta resolución con retroiluminación |
| Alimentación | Batería recargable de iones de litio, duración aproximada de 10 horas |
| Comunicación | Puerto USB y salida de 4-20 mA |
| Temperatura de operación | -10 °C a 50 °C |
| Grado de protección | IP54 |
Additel ADT760-LLP Options:
- ADT760-LLP - DL - Automatic Handheld Pressure Calibrator, ±30 inH2O w/HART and data logging
- ADT760-LLP - ADT155-20-DP025 - Internal pressure module, ±0.25 inH2O, ±0.2%FS
- ADT760-LLP - ADT155-10-DP050 - Internal pressure module, ±0.5 inH2O, ±0.1%FS
- ADT760-LLP - ADT155-05-DP1 - Internal pressure module, ±1 inH2O, ±0.05%FS
- ADT760-LLP - ADT155-05-DP2 - Internal pressure module, ±2 inH2O, ±0.05%FS
- ADT760-LLP - ADT155-05-DP5 - Internal pressure module, ±5 inH2O, ±0.05%FS
- ADT760-LLP - ADT155-05-DP10 - Internal pressure module, ±10 inH2O, ±0.05%FS
- ADT760-LLP - ADT155-05-DP20 - Internal pressure module, ±20 inH2O, ±0.05%FS
- ADT760-LLP - ADT155--05-DP30 - Internal pressure module, ±30 inH2O, ±0.05%FS
| Model | ADT760-LLP |
|---|

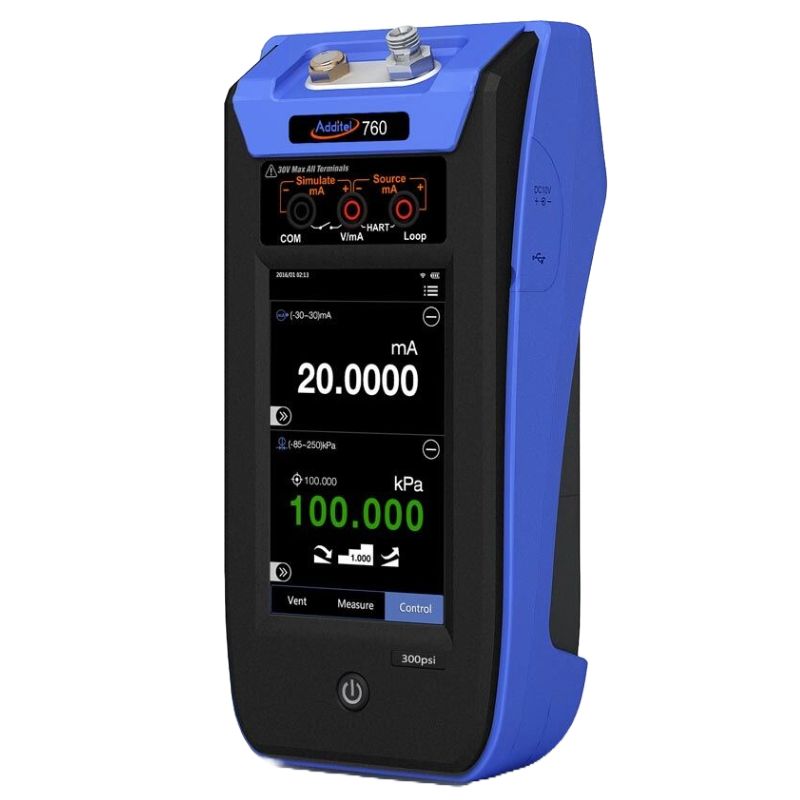

ADDITEL ADT760-LLP HH Automated Pressure Calibrator
The Additel ADT760-LLP HH Automated Pressure Calibrator in the palm of your hand, takes portable pressure calibration to new levels. Weighing less than 4 lbs (1.8 kg), the ADT760-LLP's innovative design contains a built-in pump, precision pressure sensor, internal controller and a large touch-screen color display. Additel ADT760-LLP HH Automated Pressure Calibrator has four channels: one internal pressure channel for source and measure pressures, two external pressure measurement channels, and one electronic measure and source channel.
Additel ADT760-LLP HH Automated Pressure Calibrator is designed for low pressure calibration and comes with a build-in pressure module of your choice. The maximum range module compatible with the ADT760-LLP is to ±30 inH2O ( ±75 mbar) and provides an accuracy to 0.05%FS. The accuracy of 0.05%FS and control stability 0.005%FS is based on the internal module's span. Measurements can be made in gauge or differential mode. Additel ADT760-LLP HH Automated Pressure Calibrator has an option incorporating documentation and communication functions turning your 760 into a multifunction documenting process calibrator. This feature provides HART communication, task documentation and data logging.
Specifications for the ADDITEL ADT760-LLP HH Automated Pressure Calibrator Include:
| Max Pressure Range | ±30 inH2O (75 mbar) |
| Accuracy (%FS) | 0.05 %FS |
| Stability | <0.005 %FS |
| Resolution | 6 digits |
