Additel ADT761A-D
| Atributo | Valor |
|---|---|
| Rango de presión | Hasta 3.000 psi (210 bar) |
| Exactitud | 0,05% del fondo de escala |
| Tipo de presión | Presión diferencial |
| Medio de presión | Gas y líquido compatible |
| Fuente de alimentación | Batería recargable de iones de litio |
| Pantalla | Pantalla LCD de alta resolución con retroiluminación |
| Comunicación | Puerto USB y salida de 4-20 mA |
| Temperatura de operación | -10 °C a 50 °C |
| Grado de protección | IP65 |
| Certificaciones | ATEX, IECEx (zona de seguridad intrínseca) |
Additel ADT761A-D Options:
- ADT761A-D - 02 - Accuracy: 0.02% of full span
- ADT761A-D - DP10 - Low-Range Module: ±10 inH2O (±25 mbar)
- ADT761A-D - DP20 - Low-Range Module: ±20 inH2O (±50 mbar)
- ADT761A-D - DP30 - Low-Range Module: ±30 inH2O (±75 mbar)
- ADT761A-D - CP10 - Low-Range Module: ±10 psig (±0.7 bar.g)
- ADT761A-D - CP15 - Low-Range Module: -13.5 to 15 psig (-0.95 to 1 bar.g)
- ADT761A-D - CP30 - Low-Range Module: -13.5 to 30 psig (-0.95 to 2 bar.g)
- ADT761A-D - CP35 - Low-Range Module: -13.5 to 35 psig (-0.95 to 2.5 bar.g)
- ADT761A-D - N - Pressure Port Type: 1/4 NPT female
- ADT761A-D - N2 - Pressure Port Type: 1/2 NPT female
- ADT761A-D - B - Pressure Port Type: 1/4 BSP female
- ADT761A-D - B2 - Pressure Port Type: 1/2 BSP female
- ADT761A-D - M - Pressure Port Type: M20x1.5 female
| Model | ADT761A-D |
|---|

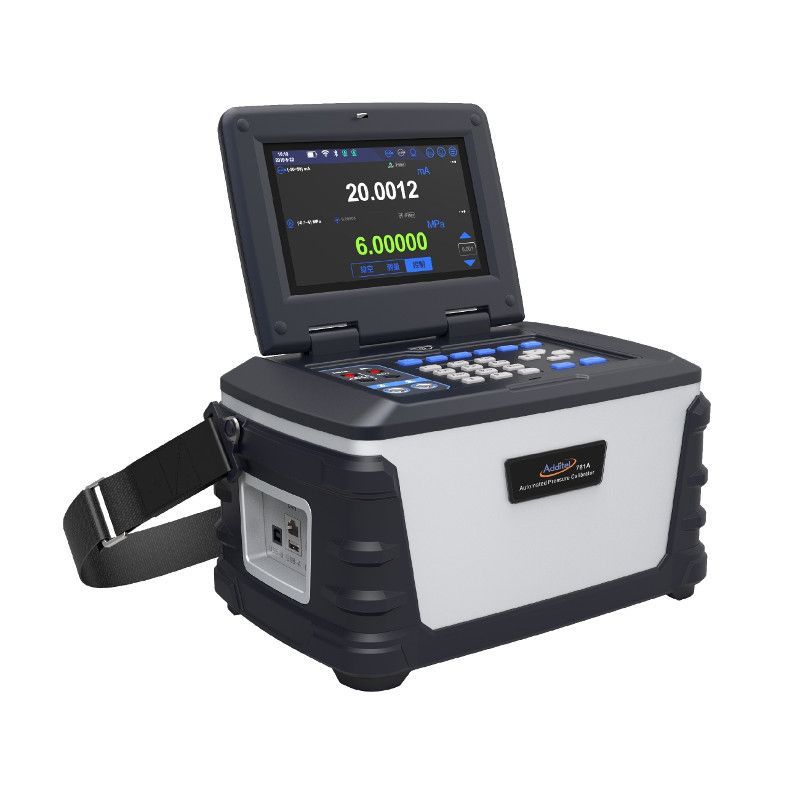

ADDITEL ADT761A-D Automated Pressure Calibrator
The Additel ADT761A-D Automated Pressure Calibrator containing a high-performance electronic pump and precision pressure controller, is a perfect solution for calibrating gauges, transmitters, and switches in the field or in the laboratory. To improve the calibrator accuracy, two pressure modules with differing ranges are built-in and integrated with the internal pump and controller. The Additel ADT761A-D provides specific calibration needs, offering exceptional accuracy and control stability, making them versatile tools for professionals across various industries.
The Additel ADT761A-D also provides differential and gauge measurement which covers the range of -13.5 to 35 psi (-0.95 to 2.5 bar). This unit comes with a CP35 module (-13.5 to 35 psi) and one low range module of your choice ranging as low as ±10 inH2O (25 mbar). Each ADT761A-D can be preconfigured with the modules that fit your need to give you the best precision at the pressures you perform calibrations. Additel ADT761A-D also features HART communication capability, supplies 24V loop power, and reads the cur or voltage produced by the pressure transducers.
Specifications for the ADDITEL ADT761A-D Automated Pressure Calibrator Include:
| Pressure Range | 35 psi (2.5 bar) |
| Accuracy | 0.02 %FS |
| Resolution | 6 digits |
| Stability | 0.003 %FS |
