Additel ADT761A-LLP
| Atributo | Valor |
|---|---|
| Rango de presión | Vacío hasta 700 bar (10.000 psi) |
| Exactitud | 0,05% del fondo de escala |
| Tipo de calibrador | Calibrador de presión de bucle con HART |
| Fuente de alimentación | 4 pilas AA de 1,5 V |
| Duración de la batería | Hasta 150 horas de funcionamiento continuo |
| Pantalla | Pantalla gráfica LCD de alta resolución con retroiluminación |
| Comunicación | Protocolo HART (Highway Addressable Remote Transducer) |
| Grado de protección | IP54 (resistente al polvo y salpicaduras de agua) |
| Temperatura de operación | -10 °C a 50 °C |
| Módulos de presión intercambiables | Compatible con módulos de presión externos intercambiables Additel |
Additel ADT761A-LLP Options:
- ADT761A-LLP - DP025 - Low Range Module ±0.25 inH2O (±0.62 mbar), 0.2%FS accuracy
- ADT761A-LLP - DP050 - Low Range Module ±0.5 inH2O (±1.25 mbar), 0.1%FS accuracy
- ADT761A-LLP - DP1 - Low Range Module ±1 inH2O (±2.5 mbar), 0.05%FS accuracy
- ADT761A-LLP - DP2 - Low Range Module ±2 inH2O (±5 mbar), 0.05%FS accuracy
- ADT761A-LLP - DP5 - Low Range Module ±5 inH2O (±10 mbar), 0.05%FS accuracy
- ADT761A-LLP - DP10 - Low Range Module ±10 inH2O (±25 mbar), 0.05%FS accuracy
- ADT761A-LLP - DP20 - Low Range Module ±20 inH2O (±50 mbar), 0.05%FS accuracy
| Model | ADT761A-LLP |
|---|

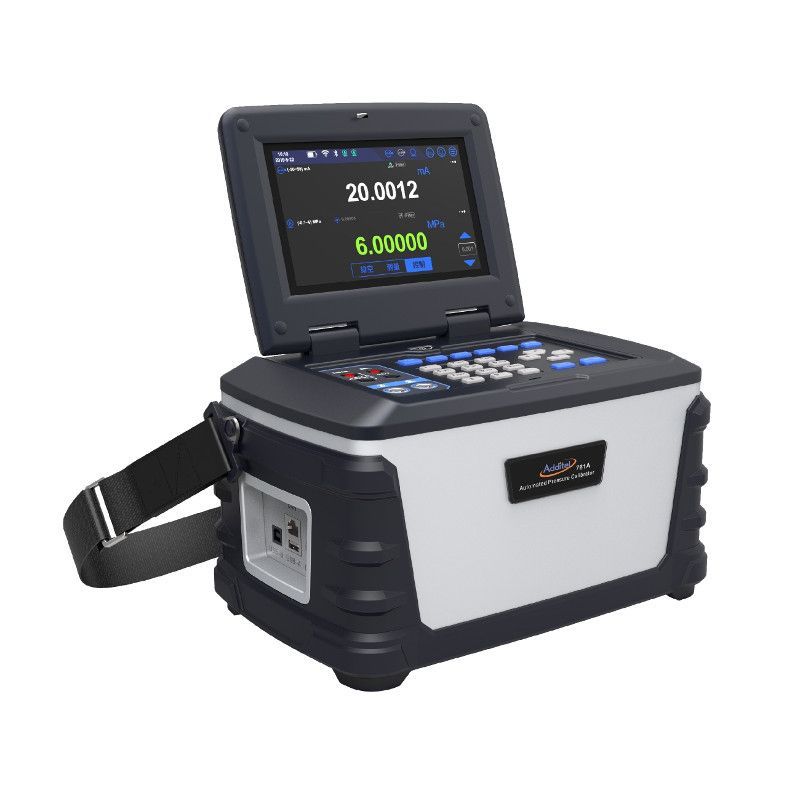

ADDITEL ADT761A-LLP Automated Pressure Calibrator
The Additel ADT761A-LLP Automated Pressure Calibrator containing a high-performance electronic pump and precision pressure controller, is a perfect solution for calibrating gauges, transmitters, and switches in the field or in the laboratory. To improve the calibrator accuracy, two pressure modules with differing ranges are built-in and integrated with the internal pump and controller. The Additel ADT761A-LLP provides specific calibration needs, offering exceptional accuracy and control stability, making them versatile tools for professionals across various industries.
The Additel 761A-LLP is designed for low pressure calibration and comes with a ±30 inH2O ( ±75 mbar) high range module and a low range module of your choice ranging from ±20 inH2O to as low as ±0.25 inH2O ( ±50 to ±0.62 mbar). This unit has an accuracy of 0.05%FS with control stability better than 0.005%FS. All measurements can be made in differential or gauge pressures. Additel ADT761A-LLP also features HART communication capability, supplies 24V loop power, and reads the cur or voltage produced by the pressure transducers.
Specifications for the ADDITEL ADT761A-LLP Automated Pressure Calibrator Include:
| Pressure Range | -30 inH2O (-75 mbar) to 30 inH2O (75 mbar) |
| Accuracy | 0.05 %FS |
| Resolution | 6 digits |
| Stability | 0.003 %FS or 0.05 Pa |
