Additel ADT762-01-GP10K
| Atributo | Valor |
|---|---|
| Rango de presión | 0 a 10 000 psi (0 a 690 bar) |
| Tipo de presión | Manométrica (GP) |
| Exactitud | ±0,05% del fondo de escala |
| Medio compatible | Gases y líquidos compatibles con acero inoxidable 316L |
| Conexión de proceso | 1/4 NPT macho |
| Temperatura de operación | -10 °C a 50 °C |
| Señal de salida | 4-20 mA / señal digital (HART) |
| Alimentación eléctrica | 12 a 30 V DC |
| Material del cuerpo | Acero inoxidable 316L |
| Grado de protección | IP65 |
Additel ADT762-01-GP10K Options:
- ADT762-01-GP10K - N - Pressure port type: 1/4 NPT female
- ADT762-01-GP10K - N2 - Pressure port type: 1/2 NPT female
- ADT762-01-GP10K - B - Pressure port type: 1/4 BSP female
- ADT762-01-GP10K - B2 - Pressure port type: 1/2 BSP female
- ADT762-01-GP10K - M - Pressure port type: M20X1.5 female
| Model | ADT762-01-GP10K |
|---|

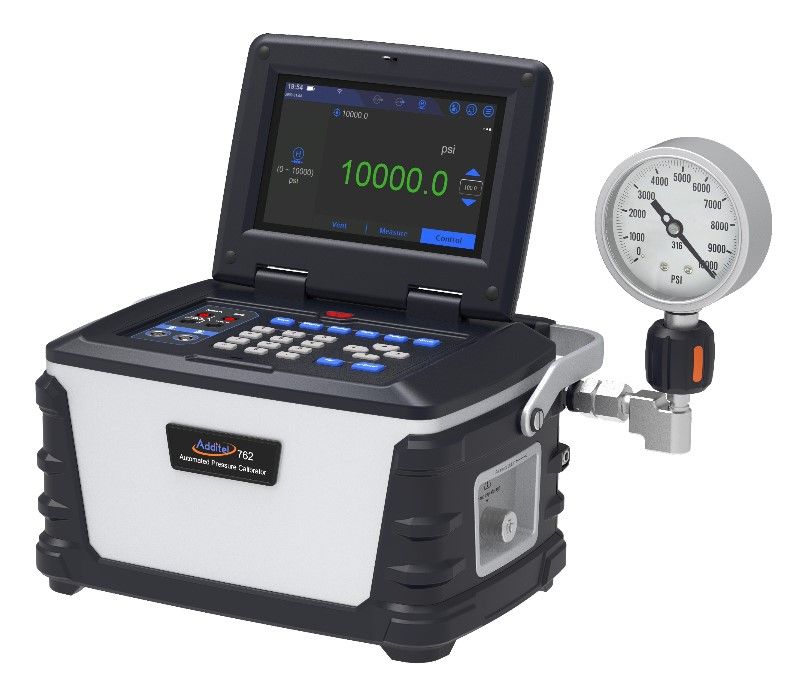

ADDITEL ADT762-01-GP10K Automated Pressure Calibrator
The Additel ADT762-01-GP10K Automated Pressure Calibrator is a groundbreaking solution for pressure calibration, capable of handling pressures up to 10,000 PSI. Designed for both field and laboratory use, it combines portability with exceptional accuracy. This state-of-the-art calibrator offers full automation for calibrating pressure transmitters, switches, gauges, and sensors, including HART/PROFIBUS devices. ADT762-01-GP10K Automated Pressure Calibrator can support up to 1000 documented tasks which can be stored and recalled at any time to help save time and money.
The ADT762-01-GP10K Automated Pressure Calibrator features integrated task management, data collection, and Wi-Fi connectivity, catering to the diverse needs of lab personnel and field technicians. The ADT762-01-GP10K has the ability to automatically switch between diffe internal calibrations based on the control pressure, making it incredibly versatile. Moreover, its integrated auto-purge system simplifies hydraulic calibration processes, while a powerful documented calibration task application streamlines tasks and generates test reports. The ADT762-01-GP10K Automated Pressure Calibrator also supports direct HART calibration, offering both automatic and manual modes, making it an all-in-one solution for pressure calibration needs.
Specifications for the ADDITEL ADT762-01-GP10K Automated Pressure Calibrator Include:
| Pressure Range | 10,000 psi (700 Bar) |
| Accuracy | 0.01% of full span |
| Max External Load Capacity | 80 ml@700 Bar, 50 ml recommend |
| Control Stability | ‰¤ 0.005%FS |
