Advantest

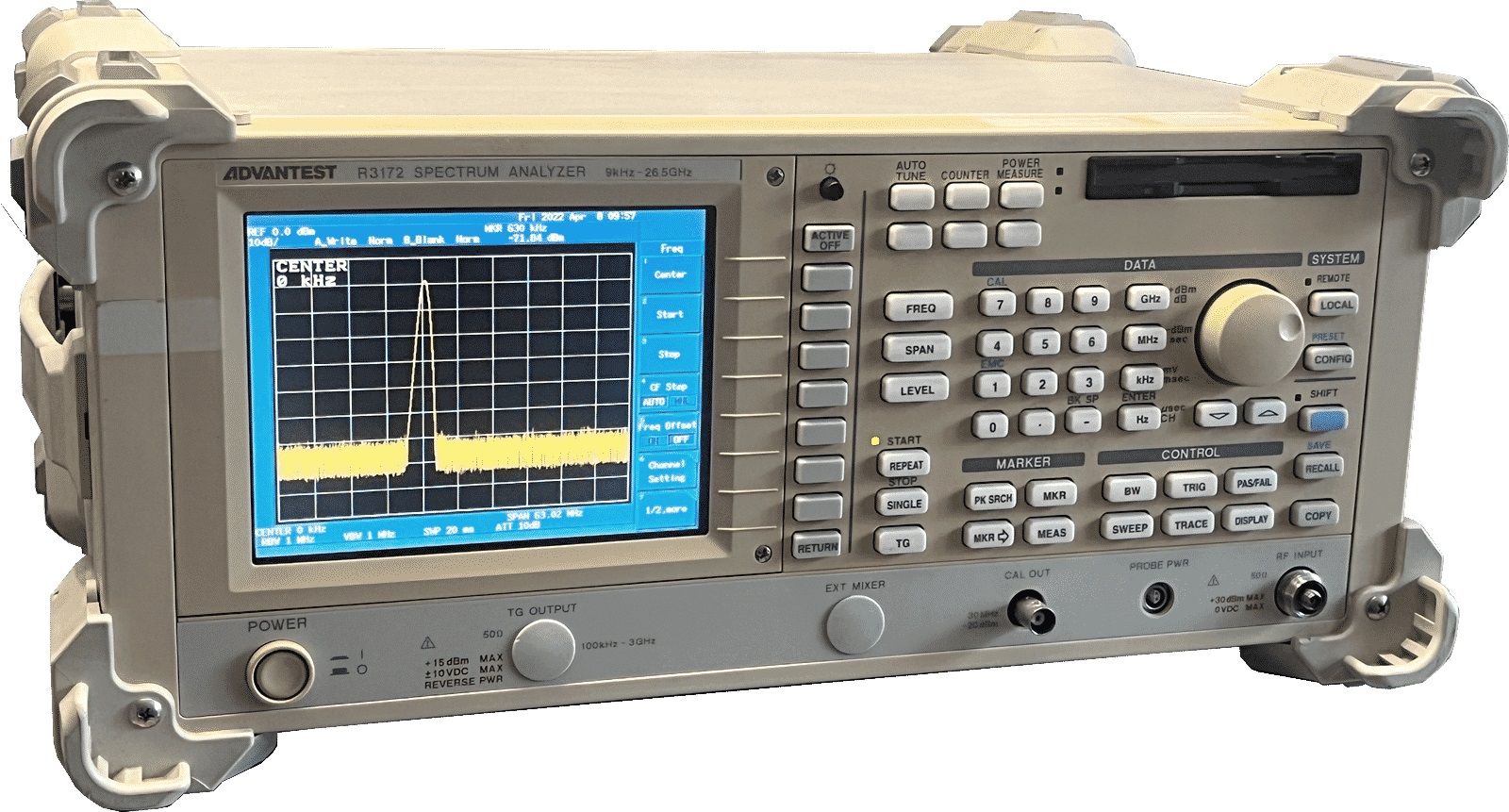

Advantest R3172
Spectrum Analyser 26.5 GHz
100 Hz – 3 GHz Rango de frecuencia
-120 dBm a +30 dBm Nivel de referencia
1 Hz – 3 MHz Ancho de banda de resolución (RBW)
1 Hz – 3 MHz Ancho de banda de vídeo (VBW)
70 dB o superior Rango dinámico
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 Hz – 3 GHz |
| Nivel de referencia | -120 dBm a +30 dBm |
| Ancho de banda de resolución (RBW) | 1 Hz – 3 MHz |
| Ancho de banda de vídeo (VBW) | 1 Hz – 3 MHz |
| Rango dinámico | 70 dB o superior |
| Nivel de ruido promedio mostrado (DANL) | -145 dBm/Hz (típico) |
| Precisión de nivel | ±1,5 dB |
| Impedancia de entrada | 50 Ω |
| Pantalla | Pantalla LCD a color de alta resolución |
| Interfaz de comunicación | GPIB (IEEE-488), RS-232C |
Advantest R3172 Options:
- R3172 - OPT.03 - Local signal output for external mixer (4.0 to 7.6 GHz)
- R3172 - OPT.16 - External mixer (26.5 to 40 GHz)
- R3172 - OPT.17 - External mixer (40 to 60 GHz)
- R3172 - OPT.18 - External mixer (50 to 75 GHz)
- R3172 - OPT.19 - External mixer (75 to 110 GHz)
- R3172 - OPT.20 - High-stability frequency reference
- R3172 - OPT.27 - Narrow-band resolution bandwidth (300 Hz, 100 Hz, 30 Hz)
- R3172 - OPT.29 - Time-domain high-speed sweeps (50 µs to 10 ms)
- R3172 - OPT.73 - Wide-range FM demodulation
- R3172 - OPT.74 - Tracking generator (100 kHz to 3 GHz)
| Model | R3172 |
|---|
The Advantest R3172 is a portable Spectrum Analyser capable of performing direct input Measurements at a maximum Frequency 26.5 GHz. For improved basic Performance with their 26.5 GHz direct input capability.
