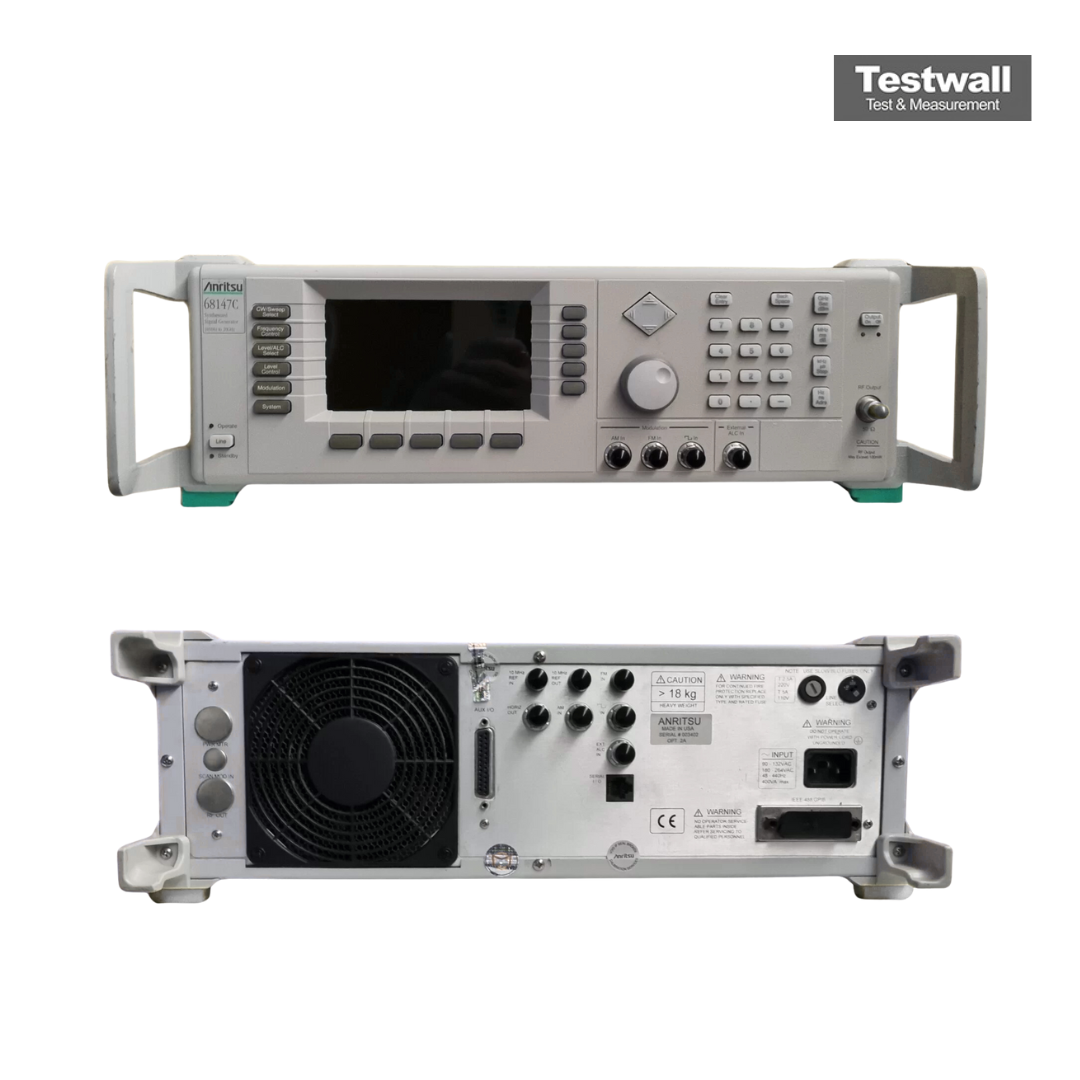

Anritsu 68147C
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 10 MHz – 20 GHz |
| Potencia de Salida Máxima | +13 dBm |
| Resolución de Frecuencia | 1 Hz |
| Modulación | AM, FM, PM, Pulso |
| Pureza Espectral (SSB Phase Noise) | -80 dBc/Hz a 10 kHz de desplazamiento |
| Impedancia de Salida | 50 Ohmios |
| Conector de Salida RF | Type-N hembra |
| Referencia de Frecuencia Interna | Oscilador de referencia interno de 10 MHz con estabilidad de ±1 ppm |
| Alimentación Eléctrica | 100–240 V CA, 50/60 Hz |
| Interfaz de Control Remoto | GPIB (IEEE-488) |
Anritsu 68147C Options:
- 68147C - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90° tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 48 cm equipment rack.
- 68147C - Option 2A - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤20 GHz. Rated RF output power is reduced.
- 68147C - Option 2B - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤40 GHz. Rated RF output power is reduced.
- 68147C - Option 2E - Electronic Step Attenuator: Adds a 10 dB/step electronic attenuator for models having a high-end frequency of ≤8.4 GHz. Rated RF output power is reduced.
- 68147C - Option 2F - Electronic Step Attenuator: Adds a 10 dB/step electronic attenuator for models having a high-end frequency of ≤20 GHz. Rated RF output power is reduced.
- 68147C - Option 9 - Rear Panel RF Output: Moves RF output connector to the rear panel.
- 68147C - Option 11 - 0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz.
- 68147C - Option 14 - Anritsu 360B VNA Compatibility: Modifies rack mounting hardware to mate the unit in an Anritsu 360B VNA console.
- 68147C - Option 15A - High Power Output: Adds high power RF components to the instrument in the 2–20 GHz frequency range.
- 68147C - Option 16 - High Stability Time Base: Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base. Derate phase noise specification at 10 Hz offset by 8 dB.
- 68147C - Option 17A - Delete Front Panel: Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed.
- 68147C - Option 18 - mmWave Bias Output: Adds rear panel bias output to drive 54000-xWRxx millimeter wave source modules. BNC Twinax connector.
- 68147C - Option 19 - SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0.
- 68147C - Option 22 - 0.1 Hz to 10 MHz Audio Frequency: Adds CW and step sweep frequency coverage below 10 MHz. No modulation is available below 10 MHz.
| Model | 68147C |
|---|
El Anritsu 68147C es un generador de señales compacto diseñado para aplicaciones A.T.E., que ofrece un rendimiento excepcional en un paquete de solo 13,3 cm, ahorrando espacio en el rack. Cubre de 0,01 a 20 GHz, proporciona alta potencia de salida hasta +17 dBm, ruido de fase SSB ultra-bajo, amplio rango dinámico, conmutación rápida < 5 ms y barridos digitales de frecuencia y potencia.
Con barrido analógico y modulaciones externas FM/AM (bloqueadas o desbloqueadas, en logaritmo o lineal), el Anritsu 68147C ofrece salidas precisas para aplicaciones de oscilador local, análisis de redes y CW en entornos de prueba automatizados exigentes.
Testwall puede suministrar el Anritsu 68147C usado, completamente probado. Con soporte experto y envío global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctanos directamente si necesitas calibración o reparación del Anritsu 68147C.
