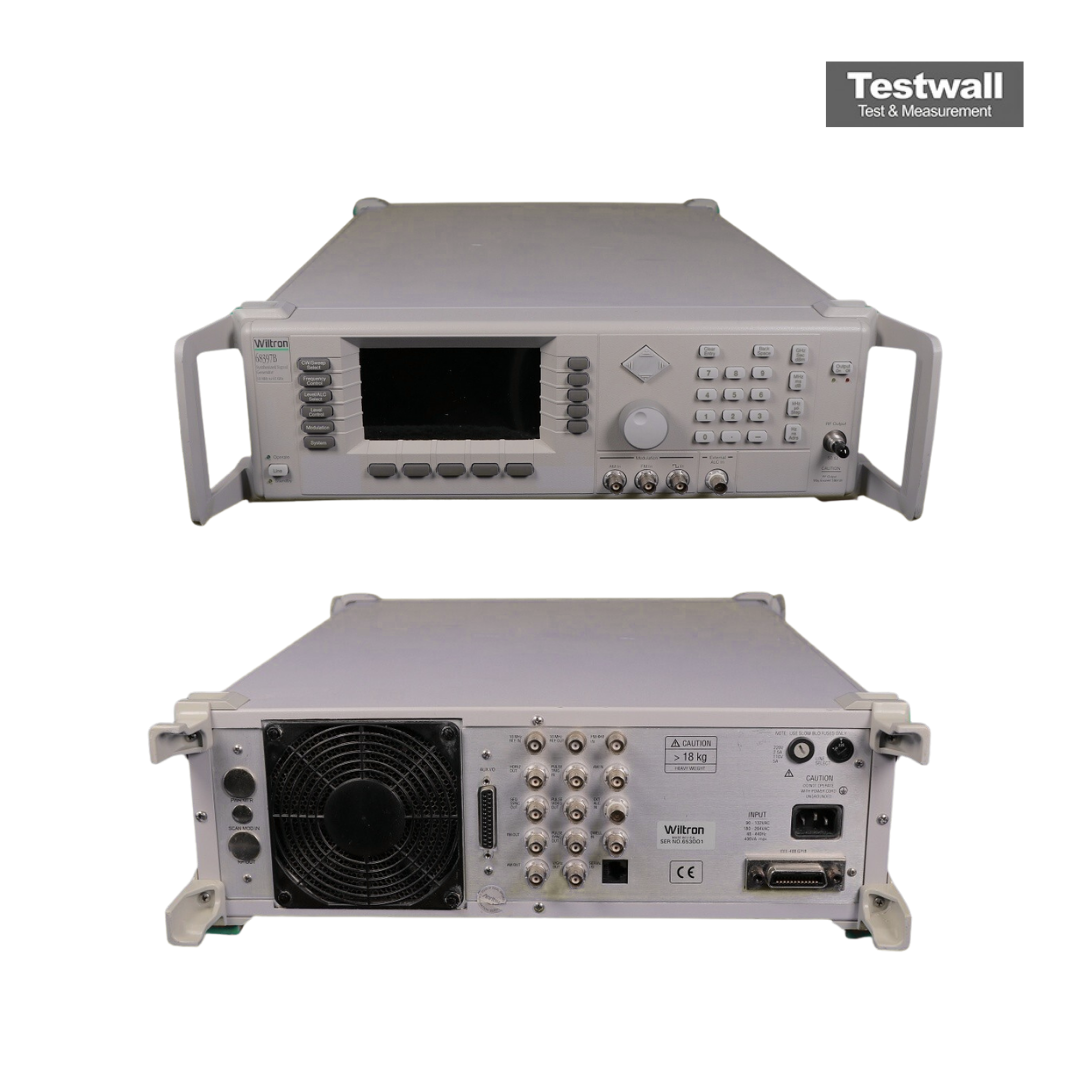

Anritsu 68397B
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 2 MHz – 40 GHz |
| Potencia de Salida Máxima | +13 dBm |
| Resolución de Frecuencia | 1 Hz |
| Pureza Espectral (SSB Phase Noise) | -80 dBc/Hz a 10 kHz de separación |
| Modulación | AM, FM, PM, Pulso |
| Conector de Salida RF | 2,92 mm (K) hembra |
| Referencia de Frecuencia Interna | 10 MHz OCXO de alta estabilidad |
| Impedancia de Salida | 50 Ω |
| Alimentación Eléctrica | 100 – 240 V CA, 50/60 Hz |
| Temperatura de Operación | 0 °C a +55 °C |
Anritsu 68397B Options:
- 68397B - Option 1 - Rack mounting kit, includes one set of track slides (90° tilt capability), mounting ears, and front panel handles for mounting in a standard 19-inch equipment rack
- 68397B - Option 2A - Step attenuator (10 dB/step, high-end frequency of ≤26.5 GHz, rated output power is reduced)
- 68397B - Option 2B - Step attenuator (10 dB/step, high-end frequency of ≤40 GHz, rated output power is reduced)
- 68397B - Option 2C - Step attenuator (10 dB/step, high-end frequency of ≤50 GHz, rated output power is reduced)
- 68397B - Option 2D - Step attenuator (10 dB/step, high-end frequency of ≤60 GHz, rated output power is reduced)
- 68397B - Option 6 - Phase modulation capability FM input and FM generator become FM/øM input and FM/øM generator (69200A, 68200B, 69300A and 68300B series). Not available with Option 7
- 68397B - Option 7 - Generators deletes the internal AM and FM generators (69200A, 68200B, 69300A and 68300B series). External AM and FM capability remains unchanged. Not available in combination with Option 6, 8, 10 or 20
- 68397B - Option 8 - Internal power meter adds an internal power (69200A, 68200B, 69300A and 68300B series) compatible with 560-7, 5400-7, or 6400-71 series detectors. Not available with Option 7
- 68397B - Option 9 - Rear panel RF output (moves RF output connector to the rear panel)
- 68397B - Option 10 - Complex modulation (user defined modulation includes serial cable and Windows® based software) (69200A, 68200B, 69300A and 68300B series). Not available with Option 7
- 68397B - Option 11 - 0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz)
- 68397B - Option 14 - Wiltron 360B VNA compatibility (modifies rack mounting hardware to mate unit in Wiltron 360B VNA console)
- 68397B - Option 15 - High power output (provides high-power from 2 to 26.5 GHz)
- 68397B - Option 16 - High stability time base (adds an ovenized, 10 MHz crystal oscillator as a high-stability time base)
- 68397B - Option 17 - Delete front panel (deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed)
- 68397B - Option 18 - MM-wave bias (rear panel bias output to drive 54000-XX WRXX multiplier. BNC twinax; not available with Option 20)
- 68397B - Option 19 - SCPI programmability adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2-1987
- 68397B - Option 20 - SCAN modulator (adds an internal SCAN modulator for simulating high-depth amplitude modulated signals in models 68237B, 68337B, 68247B and 68347B only. Requires an external modulating signal input; not available in combination with Option 7 or Option 18)
| Model | 68397B |
|---|
El Anritsu 68397B Synthesized CW Generator cubre de 10 MHz a 65 GHz con operación en CW o barrido por pasos, ofreciendo bajo ruido de fase SSB, contenido espurio muy reducido, niveles de salida de hasta +17 dBm y resolución opcional de 0,1 Hz para un control de frecuencia extremadamente fino. Estas capacidades lo convierten en una fuente precisa y estable para trabajos exigentes de RF y microondas.
Optimizado como reemplazo de oscilador local, el 68397B se adapta a necesidades de prueba en evolución con rutas de actualización económicas a modelos de mayor rendimiento. Proporciona rendimiento constante y control predecible en todo su amplio rango de frecuencias.
Testwall puede suministrar el Anritsu 68397B Synthesized CW Generator usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio insuperables. Póngase en contacto directamente si necesita calibración o reparación del Anritsu 68397B Synthesized CW Generator.
