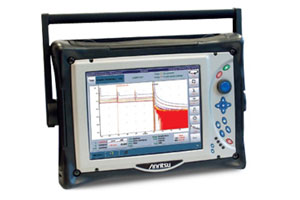

Anritsu
Anritsu CMA
Multi-Layer Test Solution
Analizador de redes ópticas y eléctricas Tipo de medición
Hasta 3 GHz Rango de frecuencia
Pantalla táctil LCD a color Interfaz de usuario
USB, GPIB, Ethernet Conectividad
100-240 V CA, 50/60 Hz Alimentación
| Atributo | Valor |
|---|---|
| Tipo de medición | Analizador de redes ópticas y eléctricas |
| Rango de frecuencia | Hasta 3 GHz |
| Interfaz de usuario | Pantalla táctil LCD a color |
| Conectividad | USB, GPIB, Ethernet |
| Alimentación | 100-240 V CA, 50/60 Hz |
| Temperatura de operación | 0 °C a +50 °C |
| Dimensiones | Compacto y portátil para uso en campo |
| Normas de cumplimiento | CE, FCC, RoHS |
| Almacenamiento de datos | Memoria interna y soporte para tarjeta de memoria externa |
| Aplicaciones principales | Instalación y mantenimiento de redes de telecomunicaciones y fibra óptica |
Anritsu CMA Options:
- CMA 5000 - 1 - 2-slot Small Bay Adapter
- CMA 5000 - 2 - 4-slot Mid Bay Adapter
- CMA 5000 - 3 - 6-slot Large Bay Adapter
- CMA 5000 - 0 - CD-Read Only (SBA only)
- CMA 5000 - 5 - CD-Read/Write, Windows Desktop
- CMA 5000 - DC - Battery with AC Charger (SBA or MBA only)
- CMA 5000 - AC - Dedicated AC Power Only
- CMA 5000 - DC24 - +24V DC Power (LBA only)
- CMA 5000 - DC48 - -48V DC Power (LBA only)
- CMA 5000 - US - US Line Cord
- CMA 5000 - EU - European Line Cord
- CMA 5000 - SW - Switzerland Line Cord
- CMA 5000 - AU - Australia Line Cord
- CMA 5000 - UK - United Kingdom Line Cord
- CMA 5000 - IT - Italy Line Cord
- CMA 5000 - Option-501CD-RW - CMA 5000 CD/read/write module upgrade (requires desktop option)
- CMA 5000 - Option-502FLOPPY - CMA 5000 floppy drive module
- CMA 5000 - Option-503DESKTOP - CMA 5000 Windows desktop upgrade (adds desktop option to units without)
- CMA 5000 - Option-505MAN - CMA 5000 Replacement platform user's guide
- CMA 5000 - Option-506KEYUS - CMA 5000 US keyboard with trackball
- CMA 5000 - Option-507KEYUS - CMA 5000 US keyboard
- CMA 5000 - Option-508SBA2 - Small bay adapter (includes DC power module and 1 battery)
- CMA 5000 - Option-509MBA2 - Medium bay adapter (includes DC power module and 1 battery)
- CMA 5000 - Option-510BATT - Replacement Li-Ion battery
- CMA 5000 - Option-511AC - Replacement AC charger/adapter
- CMA 5000 - Option-513ACPOWER - AC power module for application configurations with high power requirements
- CMA 5000 - Option-515PRINT - CMA 5000 portable external printer with cable and case
- CMA 5000 - Option-520HCASE - CMA 5000 SBA hard transit case
- CMA 5000 - Option-521HCASEML - CMA 5000 MBA hard transit case
- CMA 5000 - Option-522SCASE - Soft bag, CMA 5000 SBA/MBA
- CMA 5000 - Option-524DXHCASE - Deluxe SBA/MBA hard case with high module capacity
- CMA 5000 - Option-526TRIPOD - Mounting tripod for CMA 5000 SBA
- CMA 5000 - Option-528HCASEL - CMA 5000 LBA hard transit case
- CMA 5000 - Option-530BLANK - Single slot blank filler module
- CMA 5000 - Option-540TFC - 45 dB/1550 nm Fiber Optic Talk Set Module - FC Connector
- CMA 5000 - Option-540TSC - 45 dB/1550 nm Fiber Optic Talk Set Module - SC Connector
- CMA 5000 - Option-540TST - 45 dB/1550 nm Fiber Optic Talk Set Module - ST Connector
- CMA 5000 - Option-541TFC - OPTION-540TFC talk set module plus OPTION-542TFC stand-alone
- CMA 5000 - Option-541TSC - OPTION-540TSC talk set module plus OPTION-542TSC stand-alone
- CMA 5000 - Option-541TST - OPTION-540TST talk set module plus OPTION-542TST stand-alone
- CMA 5000 - Option-542TFC - Stand-alone 45 dB/1550 nm talk set for use with OPTION-540TFC
- CMA 5000 - Option-542TSC - Stand-alone 45 dB/1550 nm talk set for use with OPTION-540TSC
- CMA 5000 - Option-542TST - Stand-alone 45 dB/1550 nm talk set for use with OPTION-540TST
- CMA 5000 - Option-543T - Spare headset for option 540
- CMA 5000 - Option-545VIP - USB Video Inspection Probe
- CMA 5000 - Option-546VIPA - USB Video Inspection Probe - Advanced analysis option
- CMA 5000 - Option-550TFMFC - Test Fiber Module SM 1.1km - FC Connector
- CMA 5000 - Option-550TFMSC - Test Fiber Module SM 1.1km - SC Connector
- CMA 5000 - Option-550TFMST - Test Fiber Module SM 1.1km - ST Connector
- CMA 5000 - Option-551TFMFC - Test Fiber Module 62.5MM 300 m - FC Connector
- CMA 5000 - Option-551TFMSC - Test Fiber Module 62.5MM 300 m - SC Connector
- CMA 5000 - Option-551TFMST - Test Fiber Module 62.5MM 300 m - ST Connector
- CMA 5000 - Option-552TFMFC - Test Fiber Module 50MM 300 m - FC Connector
- CMA 5000 - Option-552TFMSC - Test Fiber Module 50MM 300 m - SC Connector
- CMA 5000 - Option-552TFMST - Test Fiber Module 50MM 300 m - ST Connector
- CMA 5000 - Option-580DATA - USB data transfer kit, includes software and cable for Windows 98/2000/XP
- CMA 5000 - Option-591EXT1 - CMA 5000 1 Year extended warranty
- CMA 5000 - Option-592EXT2 - CMA 5000 2 Year extended warranty
- CMA 5200 - 25 - OTDR Single-mode, 37/36 dB dynamic range, dual-wavelength 1310/1550 nm
- CMA 5200 - 35 - OTDR Single-mode, 40/40 dB dynamic range, dual-wavelength 1310/1550 nm
- CMA 5200 - 36 - OTDR Single-mode, 40/40/40 dB dynamic range, tri-wavelength 1310/1550/1625 nm
- CMA 5200 - 45 - OTDR Single-mode, 43/45 dB dynamic range, dual-wavelength 1310/1550 nm
- CMA 5200 - 46 - OTDR Single-mode, 43/45/43 dB dynamic range, tri-wavelength 1310/1550/1625 nm
- CMA 5200 - 54 - OTDR Single-mode, 50 dB dynamic range, single-wavelength 1550 nm
- CMA 5200 - 66 - OTDR Multimode 24/26 dB dynamic range, dual-wavelength 850/1300 nm, 62.5 µm
- CMA 5200 - 69 - OTDR Multimode 24/26 dB dynamic range, dual-wavelength 850/1300 nm, 50 µm
- CMA 5200 - 000 - No Meter, Light Source or VFL
- CMA 5200 - 110 - +10 dBm Meter and Light Source
- CMA 5200 - 210 - +20 dBm Meter and Light Source
- CMA 5200 - 001 - VFL Only
- CMA 5200 - 111 - +10 dBm Meter and Light Source and VFL
- CMA 5200 - 211 - +20 dBm Meter and Light Source and VFL
- CMA 5200 - UFC - FC/UPC Connector
- CMA 5200 - AFC - FC/APC Connector
- CMA 5200 - USC - SC/UPC Connector
- CMA 5200 - ASC - SC/APC Connector
- CMA 5200 - UST - ST/UPC Connector
- CMA 5200 - AST - ST/APC Connector
- CMA 5600 - 13 - OTA 10G-1310 nm module
- CMA 5600 - 15 - OTA 10G-1550 nm module
- CMA 5600 - 22 - OTA 622MB module for OC3/12 and STM1/4
- CMA 5600 - 25 - OTA 2.5G-1310/1550 nm module
- CMA 5600 - 100 - OTA Concatenation software
- CMA 5600 - 200 - OTA Tandem connection monitoring
- CMA 5600 - 300 - OTA Jitter and wander (Tx and Rx) (5622 and 5625 only)
- CMA 5600 - 350 - OTA Jitter and wander (Tx only) (5622 and 5625 only)
- CMA 5600 - 400 - OTA ATM option
- CMA 5501 - 000 - OSA module
- CMA 5501 - 100 - OSA with channel select
- CMA 5501 - 1 - Ultra FC Single-mode Connector
- CMA 5501 - 2 - Ultra SC Single-mode Connector
- CMA 5501 - 3 - Angled FC Single-mode Connector
- CMA 5501 - 4 - Angled SC Single-mode Connector
- CMA 5400 - 0 - Base PMD Module, Double-Deep
- CMA 5401 - 001 - PMD Light Source Standard dynamic range, 1310/1550 nm
- CMA 5401 - 010 - PMD Light Source High dynamic range, 1550 nm
- CMA 5700 - 000 - GIGE module
- CMA 5700 - 001 - GIGE module with channel stats
- CMA 5700 - 085 - 850 nm GBIC GigE Transceiver
- CMA 5700 - 013 - 1300 nm GBIC GigE Transceiver
- CMA 5700 - 015 - 1550 nm GBIC GigE Transceiver
- CMA 5700 - CS-OPT - Channel Statistics Upgrade for existing 5700-000-GIGE module
- CMA 5750 - 000 - Base Fibre Channel Module
- CMA 5750 - 285 - 850 nm SFP 1-2 Gb/s Fibre Channel Transceiver
- CMA 5750 - 213 - 1300 nm SFP 1-2 Gb/s Fibre Channel Transceiver
- CMA 5301 - 500 - CDPHSE 1550/1625 nm chromatic dispersion module with stand-alone transmitter
- CMA 5302 - 110 - CDOTDR +10 dBm Meter and Light Source
- CMA 5302 - 210 - CDOTDR +20 dBm Meter and Light Source
- CMA 5302 - 1 - CDOTDR Ultra PC Connector
- CMA 5302 - 2 - CDOTDR Angled PC Connector
| Model | CMA |
|---|
El Anritsu CMA (Cable Maintenance Adapter) agiliza la verificación y el mantenimiento de cables y sistemas de comunicación en redes cableadas. Optimizado para diagnósticos rápidos en campo, combina adaptación de impedancia y acondicionamiento de señal para proteger la integridad del enlace durante las pruebas. Su diseño compacto y portátil ayuda a los técnicos in situ, asegurando conectividad fiable, mediciones precisas y pérdida de señal mínima en verificaciones y resolución de fallas.
Diseñado para flujos de instalación y mantenimiento, el CMA acelera pruebas pass/fail, simplifica el troubleshooting y se integra con los sistemas de prueba de red de Anritsu para resultados consistentes entre equipos y ubicaciones.
Testwall puede suministrar el Anritsu CMA usado, totalmente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación del Anritsu CMA.
