Anritsu MG3695C
Signal Generator, 2 GHz to 50 GHz
2 GHz a 67 GHz Rango de frecuencia
+20 dBm (típico) Potencia de salida máxima
0,001 Hz Resolución de frecuencia
-80 dBc/Hz a 10 kHz de separación (típico) Pureza espectral (ruido de fase)
-110 dBm a +20 dBm Rango de nivel de salida
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 2 GHz a 67 GHz |
| Potencia de salida máxima | +20 dBm (típico) |
| Resolución de frecuencia | 0,001 Hz |
| Pureza espectral (ruido de fase) | -80 dBc/Hz a 10 kHz de separación (típico) |
| Rango de nivel de salida | -110 dBm a +20 dBm |
| Tipos de modulación soportados | AM, FM, ΦM, Pulso y modulación de banda ancha |
| Conectores de salida de RF | Conector de tipo 1,0 mm (macho) |
| Interfaz de control remoto | GPIB, USB, LAN (Ethernet) |
| Alimentación eléctrica | 100 V a 240 V CA, 50/60 Hz |
| Dimensiones y peso | 426 mm x 222 mm x 571 mm; aproximadamente 34 kg |
Anritsu MG3695C Options:
- MG3695C - 1A - Rack Mount with slides. Rack mount kit containing a set of track slides, mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack.
- MG3695C - 1B - Rack Mount without slides. Modifies rack mounting hardware to install unit in a console that has mounting shelves. Includes mounting ears and front panel handles.
- MG3695C - 2C - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3695C - 3 - Ultra Low Phase Noise. Adds new modules to significantly reduce SSB phase noise. Not available with Option 3X.
- MG3695C - 3X - Premium Phase Noise. Improves Option 3 < 1 kHz offset. Not available with Option 3.
- MG3695C - 4 - 8 MHz to 2.2 GHz RF coverage, Ultra-Low Phase Noise version. Uses a digital down converter to significantly reduce SSB phase noise. All specifications apply ≥ 10 MHz.
- MG3695C - 5 - 8 MHz to 2 GHz RF Coverage. Uses an analog down converter. All specifications apply ≥ 10 MHz.
- MG3695C - 6 - Analog Sweep Capability. When used with Option 4, analog sweep capability is limited to ≥ 500 MHz.
- MG3695C - 9V - Rear Panel Output. Moves the RF output connector to the rear panel.
- MG3695C - 9K - Rear Panel Output. Moves the RF output connector to the rear panel.
- MG3695C - 10 - User-Defined Modulation Waveform Software. External software package provides the ability to download user-defined waveforms into the memory of the internal waveform generator, serially or via GPIB or Ethernet. External PC and an instrument with LF Generator, Option 27, are required.
- MG3695C - 12 - Frequency and Phase Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3695C - 14 - Amplitude Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3695C - 15C - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3695C - 16 - High Stability Time Base. Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
- MG3695C - 17 - Delete Front Panel. Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed. Only available with Options 1A or 1B.
- MG3695C - 22 - 0.1 Hz to 10 MHz Audio coverage. Uses a DDS for coverage down to approximately DC. When adding Option 22, the output power is derated by 2 dB. Frequency resolution below 10 MHz is 0.02 Hz. No modulation is available in the 0.1 Hz to 10 MHz band. Not available without Option 4 or 5.
- MG3695C - 26A - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3695C - 26B - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3695C - 27 - Internal LF and Pulse Generators. Provides modulation waveforms for internal AM (if Option 14 installed), FM (if Option 12 installed), ΦM (if Option 12 installed) and Pulse (if Option 26A/B installed). Not available without Option 12, 14, or 26.
- MG3695C - 28B - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, ΦM, and Pulse Modulation.
- MG3695C - 36 - Ultra-Stable Phase Tracking. Provides the capability for ultra-stable phase tracking between instruments using the internal 100 MHz reference. Requires Option 3 or 3X.
- MG3695C - CE - CE Compliance with CE mark.
- MG3695C - 98 - Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides a calibration certificate, decal, and "Calibration void if removed" tamper seals.
- MG3695C - 99 - Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides everything included with Option 98 plus test report and uncertainty data.
| Model | MG3695C |
|---|

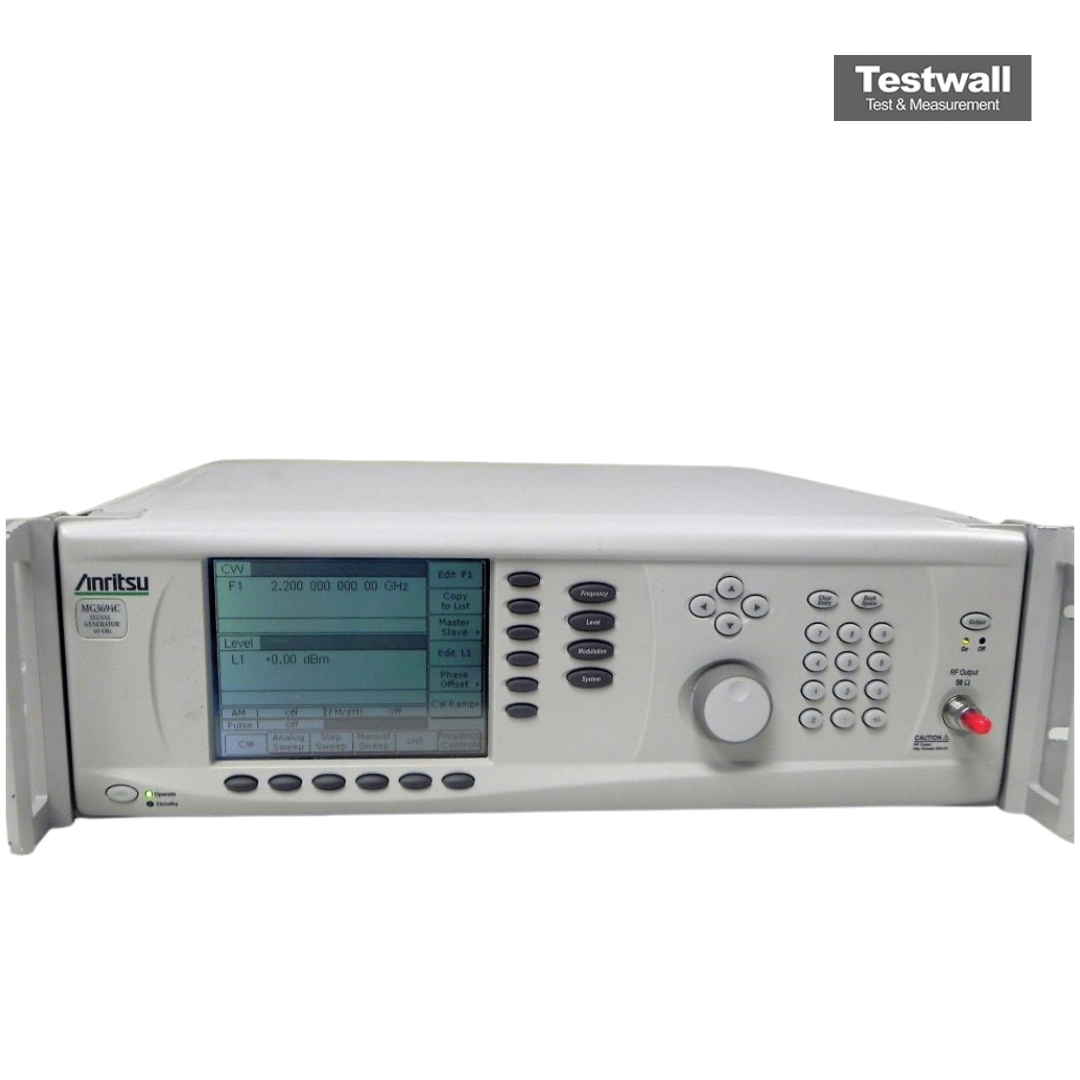

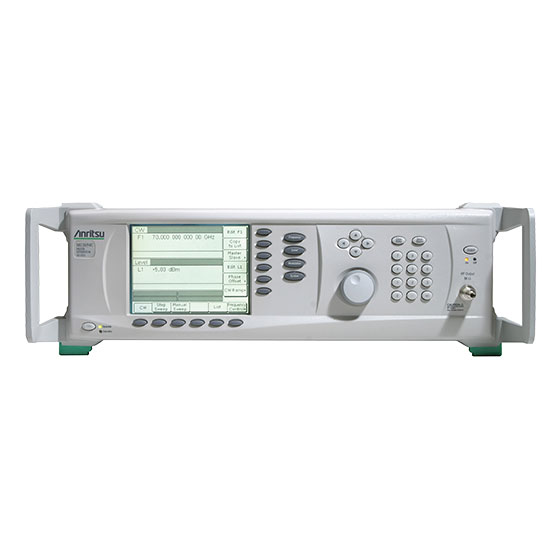

El generador de señales RF/Microondas Anritsu MG3695C ofrece una cobertura excepcional de 2 GHz a 50 GHz (ampliable a 70 GHz con multiplicadores) mediante una única salida coaxial, con un ruido de fase SSB de –119 dBc/Hz (típico a 10 GHz, desplazamiento de 10 kHz), velocidades de conmutación rápidas y un conjunto completo de modulaciones analógicas, incluyendo AM, FM, fase e impulso, para las tareas de simulación de señales más exigentes.
Diseñado para comunicaciones inalámbricas, aeroespaciales, de defensa y pruebas electrónicas, este generador altamente configurable admite la emulación de radares de pulso estrecho y proporciona señales de reloj limpias gracias a opciones de bajo ruido de fase y base de tiempo de alta estabilidad. Su interfaz intuitiva y control remoto a través de GPIB o Ethernet ofrecen máxima flexibilidad.
Testwall puede suministrar el Anritsu MG3695C usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación del Anritsu MG3695C.
