Anritsu

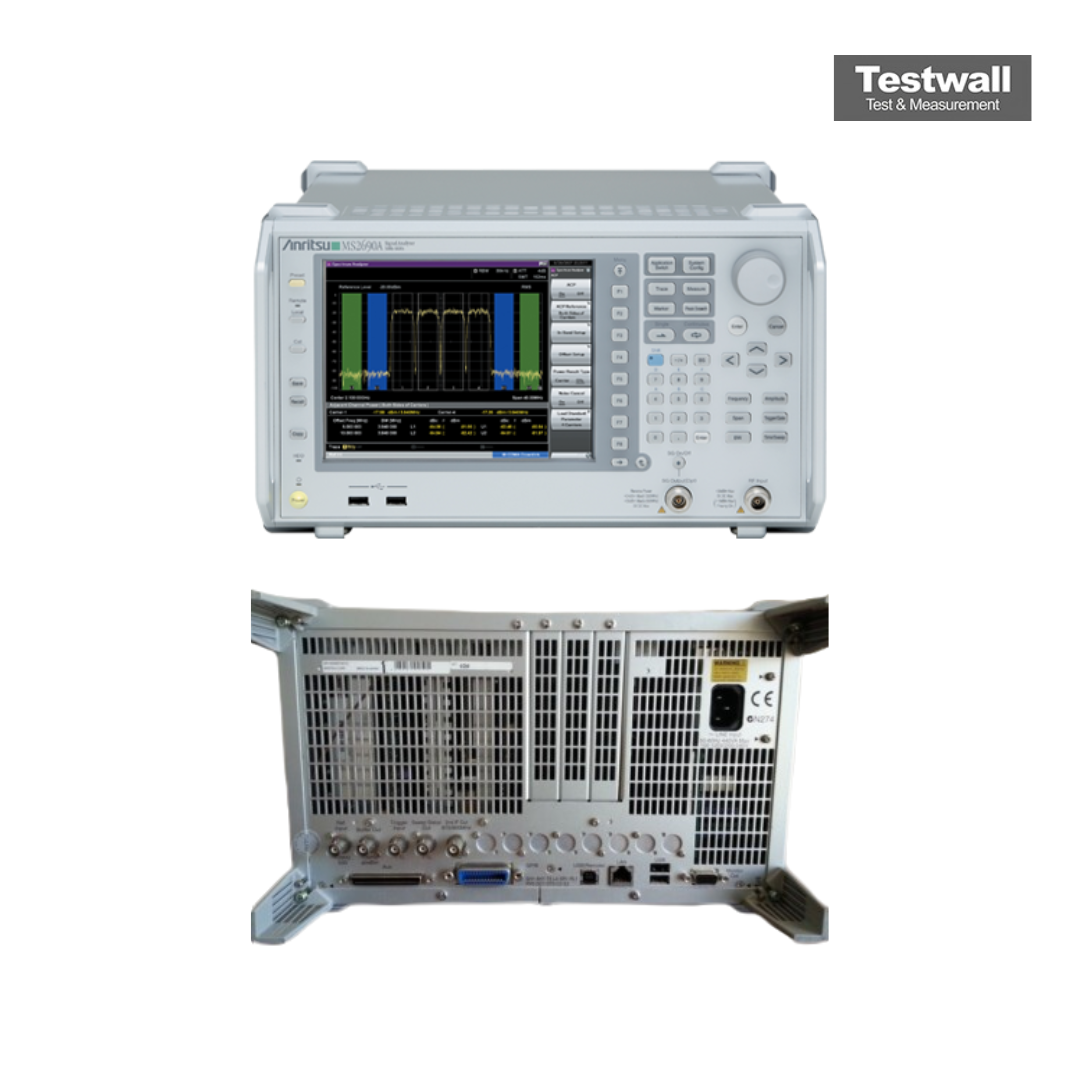

Anritsu MS2690A
50Hz To 6GHz Signal Analyzer
50 Hz a 6 GHz Rango de Frecuencia
Hasta 153 dB Rango Dinámico
-158 dBm/Hz (típico) Nivel de Ruido Mostrado en Promedio (DANL)
+30 dBm (máximo) Rango de Nivel de Entrada
1 Hz a 10 MHz Resolución de Ancho de Banda (RBW)
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 50 Hz a 6 GHz |
| Rango Dinámico | Hasta 153 dB |
| Nivel de Ruido Mostrado en Promedio (DANL) | -158 dBm/Hz (típico) |
| Rango de Nivel de Entrada | +30 dBm (máximo) |
| Resolución de Ancho de Banda (RBW) | 1 Hz a 10 MHz |
| Fase de Ruido | -130 dBc/Hz a 10 kHz de separación (típico) |
| Impedancia de Entrada | 50 Ω |
| Pantalla | Pantalla LCD en color de 10,4 pulgadas |
| Interfaz | USB, LAN (Ethernet), GPIB |
| Dimensiones y Peso | 426 mm × 221 mm × 430 mm, aproximadamente 23 kg |
Anritsu MS2690A 50Hz To 6GHz Signal Analyzer Options:
- MS2690A - 001 - Rubidium Frequency Reference
- MS2690A - 003 - 3GHZ Preselector Lower Limit
- MS2690A - 008 - 6GHZ Preamp
- MS2690A - 017 - Noise Figure Measurement
- MS2690A - 020 - Vector Signal Generator - 125MHZ To 6GHZ
- MS2690A - 031 - Wide Bandwidth Analysis Extension
- MS2690A - 037 - Rubidium Frequency Reference
- MS2690A - 050 - Hdd Digitizing Interface
- MS2690A - 077 - 62.5MHZ Analysis Bandwidth
- MS2690A - 078 - 125MHZ Analysis Bandwidth
- MS2690A - 101 - Rubidium Frequency Reference
- MS2690A - 103 - 3GHZ Preselector Lower Limit
- MS2690A - 108 - 6GHZ Preamp
- MS2690A - 117 - Noise Figure Measurement Function
- MS2690A - 120 - Vector Signal Generator - 125MHZ To 6GHZ
- MS2690A - 131 - Wide Bandwidth Analysis Extension
- MS2690A - 137 - Rubidium Reference Oscillator
- MS2690A - 150 - Hdd Digitizing Interface
- MS2690A - 177 - Analysis Bandwidth Extension To 62.5 MHZ
- MS2690A - 178 - Analysis Bandwidth Extension To 125 MHZ
- MS2690A - 180 - Cpu/Windows7 Upgrade
- MS2690A - MX269000A - Standard Software
- MS2690A - MX269010A - Mobile Wimax Measurement Software
- MS2690A - MX269011A - W-Cdma/Hspa Downlink Measurement Software
- MS2690A - MX269012A - W-Cdma/Hspa Uplink Measurement Software
- MS2690A - MX269013A - Gsm/Edge Measurement Software
- MS2690A - MX269013A-001 - Edge Evolution Measurement Software
- MS2690A - MX269014A - Etc/Dsrc Measurement Software
- MS2690A - MX269015A - Td-Scdma Measurement Software
- MS2690A - MX269016A - Xg-Phs Measurement Software
- MS2690A - MX269017A - Vector Modulation Analysis Software
- MS2690A - MX269020A - Lte Fdd Downlink Measurement Software
- MS2690A - MX269020A-001 - Lte-Advanced Fdd Downlink Measurement Software
- MS2690A - MX269021A - Lte Fdd Uplink Measurement Software
- MS2690A - MX269021A-001 - Lte-Advanced Fdd Uplink Measurement Software
- MS2690A - MX269022A - Lte Tdd Downlink Measurement Software
- MS2690A - MX269022A-001 - Lte-Advanced Tdd Downlink Measurement Software
- MS2690A - MX269023A - Lte Tdd Uplink Measurement Software
- MS2690A - MX269023A-001 - Lte-Advanced Tdd Uplink Measurement Software
- MS2690A - MX269024A - Cdma2000 Forward Link Measurement Software
- MS2690A - MX269024A-001 - All Measure Function
- MS2690A - MX269026A - Ev-Do Forward Link Measurement Software
- MS2690A - MX269026A-001 - All Measure Function
- MS2690A - MX269028A - Wlan (802.11) Measurement Software
- MS2690A - MX269028A-002 - 802.11Ac (160 MHZ) Measurement Software
- MS2690A - MX269030A - W-Cdma Bs Measurement Software
- MS2690A - MX269037A - Isdb-Tmm
- MS2690A - MX269051A - 5G Standard Measurement Software (Base License)
- MS2690A - MX269051A-011 - Nr Tdd Sub-6GHZ Downlink
- MS2690A - MX269051A-061 - Nr Tdd Sub-6GHZ Uplink
- MS2690A - MX269099A - Standard Waveform Pattern
- MS2690A - MX269901A - Hsdpa/Hsupa Iqproducer
- MS2690A - MX269902A - Tdma Iqproducer
- MS2690A - MX269904A - Multi-Carrier Iqproducer
- MS2690A - MX269905A - Mobile Wimax Iqproducer
- MS2690A - MX269908A - Lte Iqproducer
- MS2690A - MX269908A-001 - Lte-Advanced Fdd
- MS2690A - MX269909A - Xg-Phs Iqproducer
- MS2690A - MX269910A - Lte Tdd Iqproducer
- MS2690A - MX269910A-001 - Lte-Advanced Tdd
- MS2690A - MX269911A - Wlan Iqproducer
- MS2690A - MX269911A-001 - 802.11Ac (80 MHZ)
- MS2690A - MX269912A - Td-Scdma Iqproducer
- MS2690A - MX269913A - 5G Nr Tdd Sub-6GHZ Iqproducer
- MS2690A - MX269970A - 1Xev-Do Reverse Receiver Test Waveform Pattern
- MS2690A - MX703721A - Lte Automatic Measurement Software
- MS2690A - MX703721A-010 - Addition Of W-Cdma Base Station
| Model | MS2690A |
|---|
El analizador de señales Anritsu MS2690A cubre un amplio rango de frecuencias de 50 Hz a 6 GHz, ofreciendo un análisis de señal de alto rendimiento para aplicaciones RF. Dispone de amplio rango dinámico y excelente ruido de fase.
Ideal para probar sistemas de comunicación inalámbrica, equipos de transmisión y componentes electrónicos. Admite análisis de espectro y modulación.
Testwall puede suministrar el Anritsu MS2690A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación confiable y un servicio de alta calidad. Contáctenos para calibración o reparación del Anritsu MS2690A.
