Anritsu

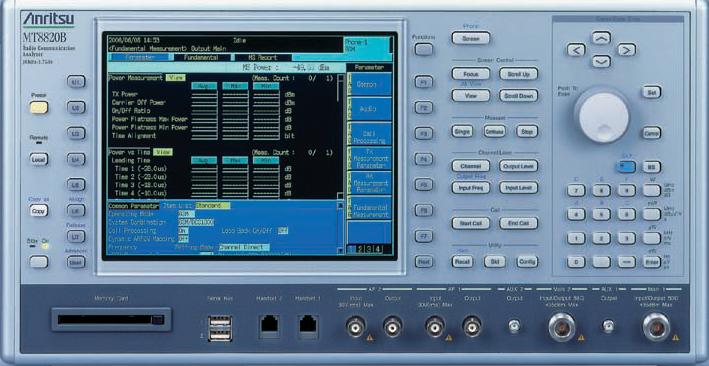

Anritsu MT8820B
Radio Communication Analyser 30MHz - 2.7 GHz
30 MHz – 2.7 GHz Rango de Frecuencia
GSM/GPRS/EGPRS, W-CDMA/HSPA, CDMA2000, 1xEV-DO, TD-SCDMA, LTE Estándares de Comunicación Soportados
-130 dBm a -10 dBm Potencia de Salida RF
-40 dBm a +35 dBm Rango de Medición de Potencia
50 Ω Impedancia de Entrada/Salida
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 30 MHz – 2.7 GHz |
| Estándares de Comunicación Soportados | GSM/GPRS/EGPRS, W-CDMA/HSPA, CDMA2000, 1xEV-DO, TD-SCDMA, LTE |
| Potencia de Salida RF | -130 dBm a -10 dBm |
| Rango de Medición de Potencia | -40 dBm a +35 dBm |
| Impedancia de Entrada/Salida | 50 Ω |
| Interfaz de Control y Comunicación | GPIB, USB, LAN (Ethernet) |
| Tensión de Alimentación | 100 V – 240 V CA, 50/60 Hz |
| Consumo de Potencia | Máximo 350 VA |
| Dimensiones (An × Al × Pr) | 426 mm × 177 mm × 451 mm |
| Peso | Aproximadamente 18 kg |
Anritsu MT8820B Options:
- MT8820B - 001 - W-CDMA Measurement Hardware
- MT8820B - 002 - TDMA Measurement Hardware
- MT8820B - 003 - CDMA2000 Measurement Hardware
- MT8820B - 004 - 1xEV-DO Measurement Hardware
- MT8820B - 011 - Audio Board
- MT8820B - 012 - Parallel Phone Measurement Hardware
- MT8820B - 031 - W-CDMA Measurement Hardware Lite
- MT8820B - 032 - TDMA Measurement Hardware Lite
- MT8820B - 043 - CDMA2000 Time Offset CAL For GPS SG (requires MT8820B-003 and MX882002C)
- MT8820B - 101 - W-CDMA Measurement Hardware retrofit
- MT8820B - 102 - TDMA Measurement Hardware retrofit
- MT8820B - 103 - CDMA2000 Measurement Hardware retrofit
- MT8820B - 104 - 1xEV-DO Measurement Hardware retrofit
- MT8820B - 111 - Audio Board retrofit
- MT8820B - 112 - Parallel Phone Measurement Hardware retrofit
- MT8820B - 131 - W-CDMA Measurement Hardware Lite Retrofit
- MT8820B - 132 - TDMA Measurement Hardware Lite Retrofit
- MT8820B - 143 - CDMA2000 Time Offset CAL For GPS SG Retrofit (requires MT8820B-003 and MX882002C)
- MX882000C - W-CDMA Measurement Software (requires MT8820B-001 and MX88205xC)
- MX882000C - 001 - W-CDMA Voice Codec (requires MT8820B-011 and MX882000C)
- MX882000C - 011 - HSDPA Measurement Software (requires MT8820B-001, MX882000C and MX882050C)
- MX882000C - 012 - HSDPA H-Set 6 Throughput Test (requires MT8820B-001, MX882000C, MX882000C-011 and MX882050C)
- MX882000C - 021 - HSUPA Measurement Software (requires MT8820B-001, MX882000C, MX882000C-011 and MX882050C)
- MX882001C - GSM Measurement Software (requires MT8820B-002)
- MX882001C - 001 - GSM Voice Codec (requires MT8820B-011 and MX882001C)
- MX882001C - 002 - GSM External Packet Data (requires MX882001C)
- MX882001C - 011 - EGPRS Measurement Software (requires MX882001C)
- MX882002C - CDMA2000 Measurement Software (requires MT8820B-003)
- MX882002C - 001 - CDMA2000 Voice Codec (requires MT8820B-011 and MX882002C)
- MX882002C - 002 - CDMA2000 External Packet Data (requires MX882002C)
- MX882003C - 1xEV-DO Measurement Software (requires MT8820B-003, MT8820B-004 and MX882002C)
- MX882003C - 002 - 1xEV-DO External Packet Data (requires MX882003C)
- MX882005C - PHS Measurement Software (requires MT8820B-002)
- MX882005C - 011 - Advanced PHS Measurement Software (requires MX882005C)
- MX882010C - Parallel Phone Measurement Software (requires MT8820B-012, two same measurement hardware and one measurement software)
- MX882030C - W-CDMA Measurement Software Lite (requires MT8820B-031)
- MX882030C - 001 - W-CDMA Voice Codec (requires MT8820B-011 and MX882030C)
- MX882030C - 009 - W-CDMA Band IX (requires MX882030C-050)
- MX882030C - 011 - HSDPA Measurement Software (requires MX882030C)
- MX882030C - 040 - W-CDMA High-speed Adjustment (requires MX882030C)
- MX882030C - 050 - W-CDMA Call Processing Software (requires MX882030C)
- MX882031C - GSM Measurement Software Lite (requires MT8820B-032)
- MX882031C - 001 - GSM Voice Codec (requires MT8820B-011 and MX882031C)
- MX882031C - 011 - EGPRS Measurement Software (requires MX882031C)
- MX882031C - 040 - EGPRS Predistortion Adjustment (requires MX882031C)
- MX882031C - 050 - GSM Call Processing Software (requires MX882031C)
- MX882050C - W-CDMA Call Processing Software (requires MX882000C)
- MX882050C - 002 - W-CDMA External Packet Data (requires MX882050C)
- MX882050C - 003 - W-CDMA Video Phone Test (requires MX882050C)
- MX882050C - 009 - W-CDMA Band IX (requires MX882050C)
- MX882050C - 011 - HSDPA External Packet Data (requires MX882000C-001)
- MX882070C - W-CDMA Ciphering Software (requires MX882050C)
- MX882051C - W-CDMA Call Processing Software (requires MX882000C)
- MX882051C - 002 - W-CDMA External Packet Data (requires MX882051C)
- MX882051C - 003 - W-CDMA Video Phone Test (requires MX882051C)
- MX882071C - W-CDMA Ciphering Software (requires MX882051C)
- MT8820B - ES210 - Extended Two Year Warranty Service
- MT8820B - ES310 - Extended Three Year Warranty Service
- MT8820B - ES510 - Extended Five Year Warranty Service
| Model | MT8820B |
|---|
El Anritsu MT8820B Radio Communication Analyzer funciona entre 30 MHz y 2,7 GHz, soportando mediciones Tx/Rx para W-CDMA/HSPA, GSM/GPRS/EGPRS, CDMA2000 1X, CDMA2000 1xEV-DO y PHS. Con opciones de hardware y software dedicadas, asegura una evaluación precisa de las características de transmisión y recepción.
Esta plataforma multisistema mejora la eficiencia de la fabricación de terminales al permitir diagnósticos detallados de fallos y validación del rendimiento en múltiples formatos de comunicación con una sola unidad.

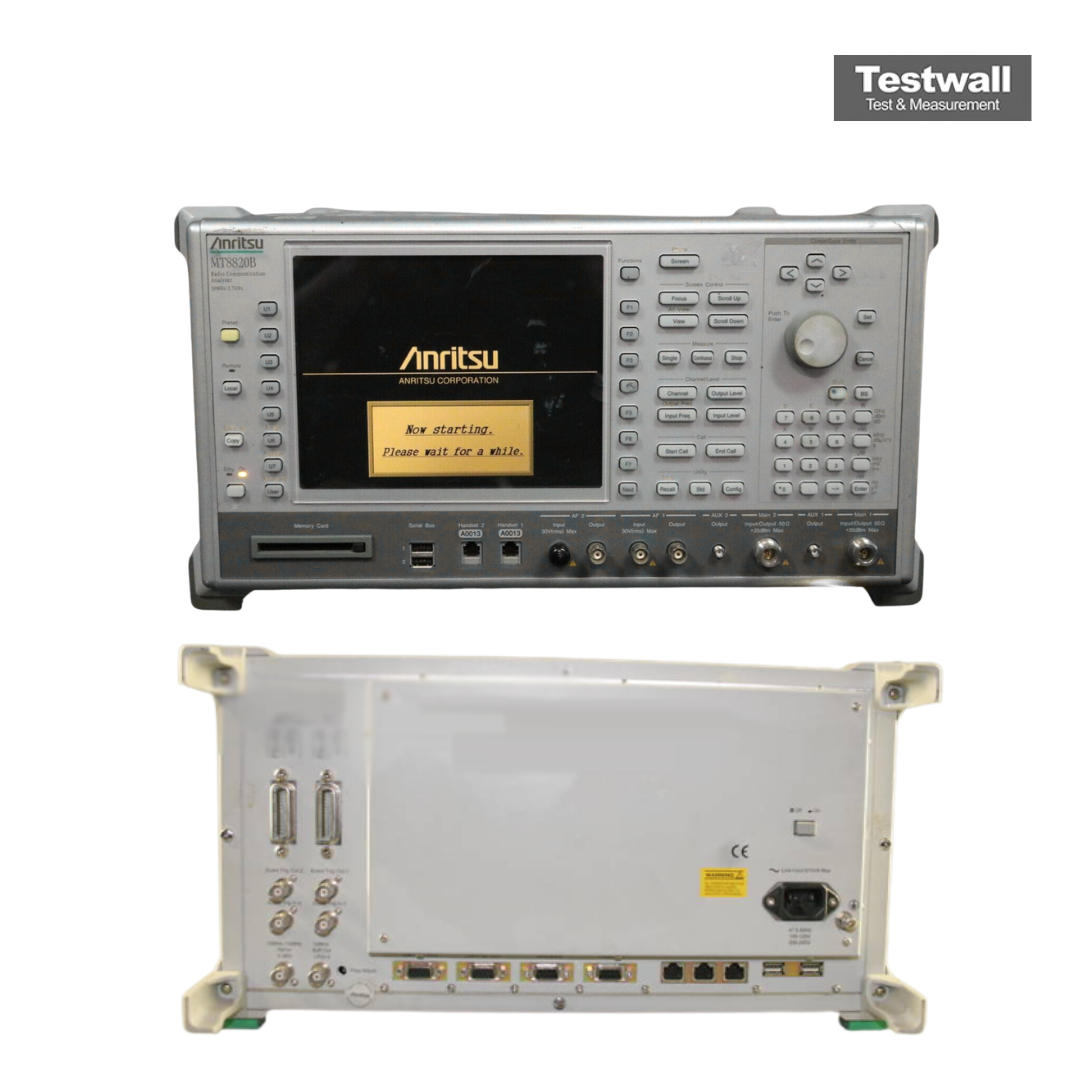

Testwall puede suministrar el Anritsu MT8820B usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación del Anritsu MT8820B.
