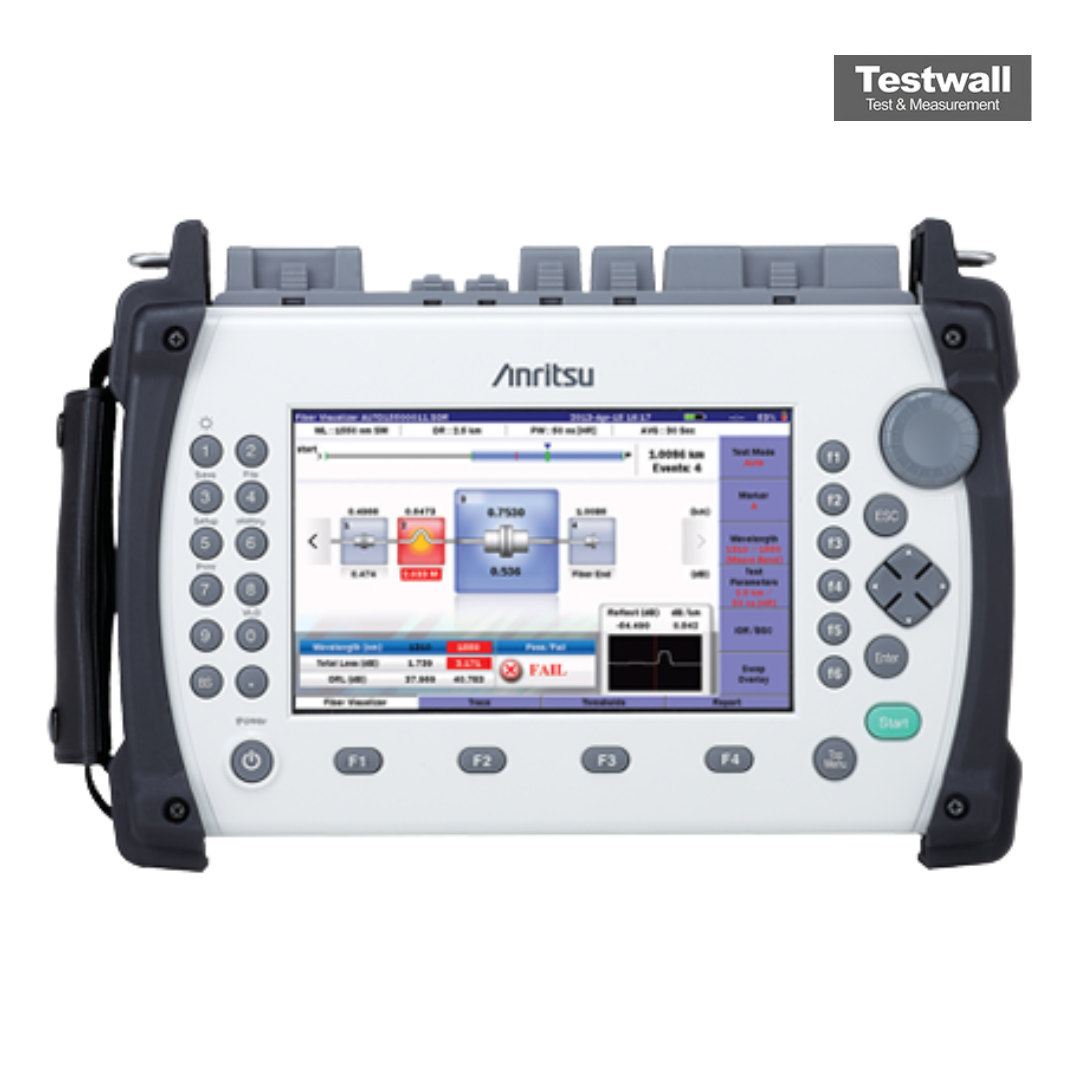

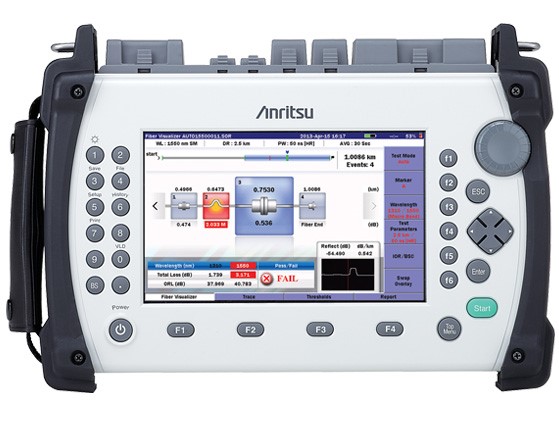

ANRITSU MT9083A2 Access Master OTDR
The Anritsu MT9083A2 delivers full featured OTDR performance plus loss test set and quality of service measurement in a surprisingly small and lightweight package. The ACCESS Master MT9083A2 now features a 7-inch widescreen TFT-LCD display for use both indoors and outdoors, enhanced battery operation time (up to 12 hours), increased operating temperature range ( €“10 ° to +50 °C) and new short-cut function keys. In addition to its superb high-resolution performance, the MT9083A2 also features up to 46 dB of dynamic range allowing it to easily test 200 + km spans making it a very useful tool for any network type.
While many OTDRs provide good deadzone resolution or high dynamic range, the Anritsu MT9083A2 features a dual-mode design that allows a single unit to excel in both categories. The user can simply select HIGH RESOLUTION (HR) mode or ENHANCED RANGE (ER) based on the cur task at hand. The MT9083A2 also collects up to 150,001 with a resolution of just 2 m. This provides the necessary detail when installing and maintaining fiber spans. To simplify and automate testing in manufacturing and lab environments, the MT9083A2 supports SCPI commands. Through the use of a USB converter and a common scripting program such as LabView ™, the MT9083A2 can be quickly integrated and immediately reduce testing times. Remote control can also be used for remote, unmanned monitoring applications.
Features of the ANRITSU MT9083A2 Access Master OTDR Include:
- Specialized testing modes simplify operation
- High resolution and high dynamic range ensure thorough and complete fiber evaluation
- Intelligent analysis software identifies problem splices, connectors and even macrobends
- Rugged, sealed design provides years of service in the most challenging environments
- Test up to four wavelengths with a single unit €“ single mode, multimode or both
- ITU-T recommended 1650nm for in-service troubleshooting
- Verify connector quality with optional connector inspection microscope
- SCPI remote command support
- Feature offering easy graphical summary & PDF reporting
- Password protection feature for important file on-internal memory
