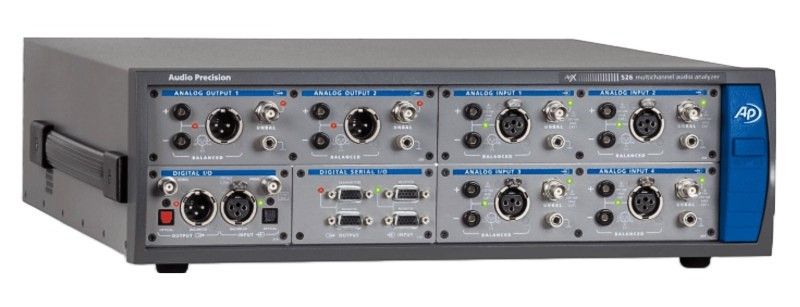

Audio Precision APX526B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 100 kHz |
| Rango dinámico | 120 dB (típico) |
| Distorsión armónica total + ruido (THD+N) | -106 dB (0,00050%) |
| Número de canales de análisis | 2 canales de entrada analógica |
| Número de canales de generación | 2 canales de salida analógica |
| Interfaces digitales | AES3, S/PDIF, TOSLINK, interfaz HDMI ARC |
| Nivel máximo de entrada | +26 dBu (modo balanceado) |
| Impedancia de entrada | 100 kΩ (balanceada) |
| Interfaz de control | USB 2.0 (conexión a PC con software APx500) |
| Dimensiones del chasis | Formato de escritorio compacto (2U compatible con rack) |
Audio Precision APX526B Options:
- APX526B - AG52 - Adds analog square wave and DIM generation, higher maximum output and improved system THD+N
- APX526B - BW52 - Adds two channel, 24-bit, 1 MHz bandwidth analysis
- APX526B - Digital Serial - Adds interface for I2S, TDM, DSP
- APX526B - Bluetooth - Adds Bluetooth radios for wireless audio test
- APX526B - HDMI+ARC - Adds HDMI source, sink, monitor, aux and ARC I/O
- APX526B - PDM - Adds direct connectivity for digital MEMS mics
- APX526B - AMC - Advanced Master Clock adds jitter clock, sync and trigger I/O
- APX526B - ADIO - Adds Advanced Digital I/O and Advanced Master Clock modules
- APX526B - APX-SW-SPK-PT - Loudspeaker Test: Production – Combines acoustic measurement (Frequency Response, Phase, Distortion and Rub & Buzz) and electromechanical impedance measurement (Impedance Response Curves plus a subset of Thiele-Small); also includes Acoustic Response and Modulated Noise
- APX526B - APX-SW-SPK-RD - Loudspeaker Test: R&D – Acoustic Response (with Rub & Buzz), Impedance / Thiele-Small, Modulated Noise; includes all measurements in APX-SW-SPK-PT plus the APx Polar Plot and APx Waterfall Graph utilities
- APX526B - APX-SW-STI - Speech Transmission Index – Plug-in for conducting Speech Transmission Index (STI) measurements using the STIPA method
- APX526B - APX-SW-PESQ - PESQ – Widely-used, enhanced perceptual measurement for voice quality on low-bandwidth devices
- APX526B - APX-SW-POLQA2 - POLQA – Successor to PESQ with support for HD Voice, 3G, 4G/LTE and VoIP technologies (2 channels)
- APX526B - APX-SW-ABC-MRT - ABC-MRT – Provides an objective measure of speech intelligibility following the paradigm of the Modified Speech Ryme Test
- APX526B - SW-MAINT-1/3/5 - Software Maintenance – Provides 1, 3, or 5 years of software maintenance for an existing APx Legacy or B Series audio analyzer
- APX526B - SW-EXT-3/5 - Software Maintenance – Provides 2 or 4 additional years of software maintenance with the purchase of a new B Series APx analyzer
- APX526B - SW-UPG-APX5 - Software Upgrade – Software upgrade to APx Version 5 for Legacy APx analyzers
| Model | APX526B |
|---|
AUDIO PRECISION APx526B Analog and Digital Audio Analyzer
The Audio Precision APx526B audio analyzers combines an award-winning user interface and legendary performance with a comprehensive range of modular I/O options. It ships with four channels of analog I/O and our Digital Interface Option (DIO) with AES/SPDIF digital inputs and outputs, and includes ASIO capability. The APx526B is ready with a full range of choices, from additional channels of analog to a chip-level digital serial interface (DSIO), HDMI+ARC, PDM (Pulse Density Modulation) or Bluetooth ® wireless technology with built-in radio. Its modular systems allow you to select the interfaces and options that make sense for the work you do, covering the widest range of digital I/O in the industry.
The Audio Precision APx526B brings AP innovations such as one-click measurements, code-free automation and sophisticated reporting to every interface in every combination. Across all measurements, the APx UI is fast and intuitive. Just click to select a measurement, then click to add a filter. Drag limits to set pass/fail points right on the results graph. Effortlessly specify computations for derived results. The APx generator can output steady tones, twin tones, sweeps, chirps, multitones or play WAV files as arbitrary waveforms. Combined with APx audio measurement software, the Audio Precision APx526B audio analyzers integrate power, flexibility and ease-of-use. Choose between Bench Mode for real-time visibility into device behavior across a variety of parameters, and Sequence Mode for fast production testing and automated measurements.
Specifications for the AUDIO PRECISION APx526B Analog and Digital Audio Analyzer Include:
| Sine Frequency Range | 0.1 Hz to 80.1 kHz |
| Frequency Accuracy | 2 ppm |
| Maximum Rated Input Voltage | 230 Vpk |
| Residual Input Noise (20 kHz BW) | 1.3 µV |
