Audio Precision

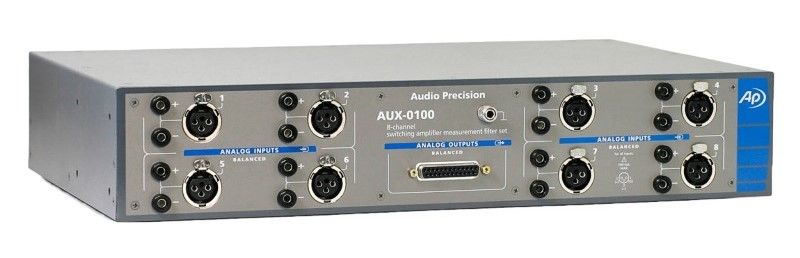

Audio Precision AUX-0100
Eight Channel Low Pass Filter
10 Hz – 204 kHz Rango de frecuencia
2 canales de entrada analógica Número de canales
100 kΩ Impedancia de entrada
+26 dBu Nivel máximo de entrada
24 bits Resolución de medición
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 204 kHz |
| Número de canales | 2 canales de entrada analógica |
| Impedancia de entrada | 100 kΩ |
| Nivel máximo de entrada | +26 dBu |
| Resolución de medición | 24 bits |
| Rango dinámico | 120 dB |
| Interfaz de conexión | Compatible con sistemas APx de Audio Precision |
| Tipo de conector | XLR balanceado / RCA no balanceado |
| Tensión de alimentación | Alimentado a través del sistema APx |
| Dimensiones | Módulo de expansión de formato compacto para rack |
Audio Precision AUX-0100 Options:
- AUX-0100 - RAK-100 - Rack-mount shelf for AUX-0100
| Model | AUX-0100 |
|---|
The Audio Precision AUX-0100 Eight Channel Low Pass Filter (formerly known as APx581), is a passive switching amplifier. Measurement filters are designed to be inserted between the device under test and an analyzer input, to reduce out-of-band switching signal components before measurement.
The AUX-0100 is used for mMeasurement of switching amplifiers, and measurement of analog signals with high amounts of out-of-band noise.
Highlights of the Audio Precision AUX-0100 (APx581), include:
- eight channel, 20 Hz to 20 kHz passband
- Passive design for optimal performance
- Custom inductors designed for power handling and minimizing low-frequency distortion
- Flat response
- Small insertion loss
- Compatible with both balanced and unbalanced amplifiers and analyzers
