Audio Precision P1PLUS
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 100 kHz |
| Rango de nivel de señal | -150 dBu a +30 dBu |
| Distorsión armónica total (THD+N) | Menos de 0,0003% |
| Relación señal/ruido (SNR) | Más de 120 dB |
| Impedancia de entrada | 100 kΩ (balanceada) |
| Impedancia de salida | 40 Ω (balanceada) |
| Interfaces de medición | Analógica y digital (AES/EBU, S/PDIF) |
| Resolución de medición | 24 bits |
| Conectividad | USB y Ethernet |
| Tensión de alimentación | 100–240 V CA, 50/60 Hz |
Audio Precision P1PLUS Options:
- P1PLUS - P1-IMD - SMPTE/DIN intermodulation distortion measurement and generation (analog and digital)
- P1PLUS - P-CAS - Protective soft carrying case with shoulder strap and internal/external pockets
- P1PLUS - RAK-P1 - Rack mount shelf for Portable One Plus Access or Portable One Dual Domain
- P1PLUS - MAN-P1PA - Additional Portable One Plus Access operator's manual (one included with instrument)
- P1PLUS - MAN-P1DD - Additional Portable One Dual Domain operator's manual (one included with instrument)
- P1PLUS - MAN-ATS488 - Additional GPIB manual for Portable One Plus Access or Portable One Dual Domain (one included with instrument)
- P1PLUS - SVC-P1 - Service manual for Portable One Plus Access or Portable One Dual Domain
- P1PLUS - CAB-XMF - Set of four XLR male to XLR female cables
- P1PLUS - CAB-XBR - Set of four XLR male/female to RCA/BNC cables
- P1PLUS - CAB-AES - Set of two AES3 digital cables, 1 meter
- P1PLUS - CAB-AES2 - Set of two AES3 digital cables, 2 meters
- P1PLUS - CAB-AES4 - Set of two AES3 digital cables, 4 meters
| Model | P1PLUS |
|---|

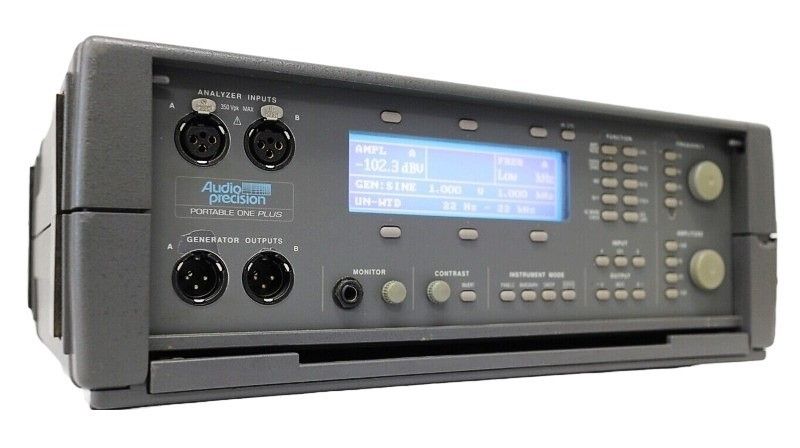

AP Audio Precision P1PLUS (Portable One Plus)
The Audio Precision P1Plus Audio Analyzer brings bench quality, high precision test and measurement to maintenance, engineering and production facilities. Whether in broadcast, communications, bench or production use, The AP P1Plus Audio Analyzer offers a complete, easy-to-use audio test set.
The AP P1Plus provides comprehensive two-channel analog generation and measurement. With twelve diffe measurement functions selectable at the push of a button, it is comprehensive while remaining user-friendly. Easy-to-set-up sweep capability produces graphs of frequency response, distortion vs. frequency and even amplitude sweeps. Non-volatile storage of up to 30 tests allows easy, one-button recall of your favorite test setup.
Features and specifications of the Audio Precision P1Plus include:
- Independent analog and digital signal generators
- Digital interface analysis
- Agilent / HP 8903B emulation mode
- A wide range of analog and digital test signals
- Programmatic control for high-speed automation (GPIB)
- A full complement of graphing and reporting options
- Generator Performance:
- Sine Frequency Range 10 Hz €“120 kHz.
- Frequency Accuracy ±0.5%
- IMD Test Signals SMPTE, DIN
- Maximum Amplitude (balanced) 24.7 Vrms
- Amplitude Accuracy ±0.3 dB
- Flatness (20 Hz €“20 kHz) ±0.05 dB
- Residual THD+N, 1 kHz -92 dB + 3 µV
- Analog Output Configurations unbalanced & balanced
- Digital Output Sampling Rate 28.8 kHz to 52.8 kHz
- Encoded audio formats None
- Analyzer Performance:
- Maximum Rated Input Voltage 140 Vrms
- Maximum BandwidthAmplitude Accuracy (1 kHz) ±0.1 dB +100 µV
- Amplitude Flatness (20 Hz €“20 kHz) ±0.02 dB
- Residual Input Noise (20 kHz BW) 1.5 µVrms
- Residual THD+N (20 kHz BW) €“92 dB + 3 µV
- FFT Resolution N/A
- IMD Measurement Capability SMPTE, DIN
- DC Voltage Measurement N/A
