Behlman P1351 Options:
- P1351 - A - Analog remote control…0-10 VDC for volts and frequency…contact closure for range and output
- P1351 - E - Extended frequency range, 45-1000 Hz
- P1351 - I - IEEE-488 interface
- P1351 - IR - RS 232 interface
- P1351 - RM - Rack Mount kit
| Model | P1351 |
|---|

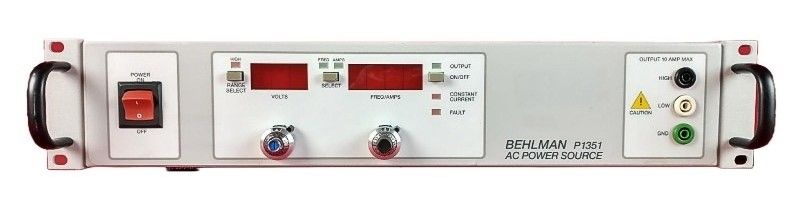

Behlman P1351 AC Power Source/Frequency Converter
In the Behlman P1351 AC power source/frequency converter you'll find the quality features you expect from Behlman; fully adjustable voltage and frequency, low-output THD, high efficiency, plus excellent line and load regulation. The unit can be controlled from the front panel or remotely using the optional 0-10 VDC, RS232 or IEEE-488 interface. The Behlman P1351 delivers 1350 VA of clean, regulated AC power in a 3.5 " high bench top unit that easily converts to rack mount.
Small size, low cost, quiet operation and high efficiency make the Behlman P1351 AC power source ideal for industrial product testing, precision avionic test, power conversion and Automatic Test Equipment testing. There's a unique overload protection system that folds back voltage to maintain rated cur without output waveform distortion and an internal temperature sensor prevents heat damage. Other options include extended frequency range, 45 Hz to 1000 Hz and rack mount kit.
Specifications of the Behlman P1351 AC Power Source/Frequency Converter includes:
| AC Power | 1350VA |
| Voltage Low/High | 0-135V/0-270V |
| Frequency | 45-500Hz (Option E:45-1000Hz) |
| Peak Cur Low/High | 10A/5A |
| Power Factor | 100% rated output |
See Datasheet for Full Specifications
