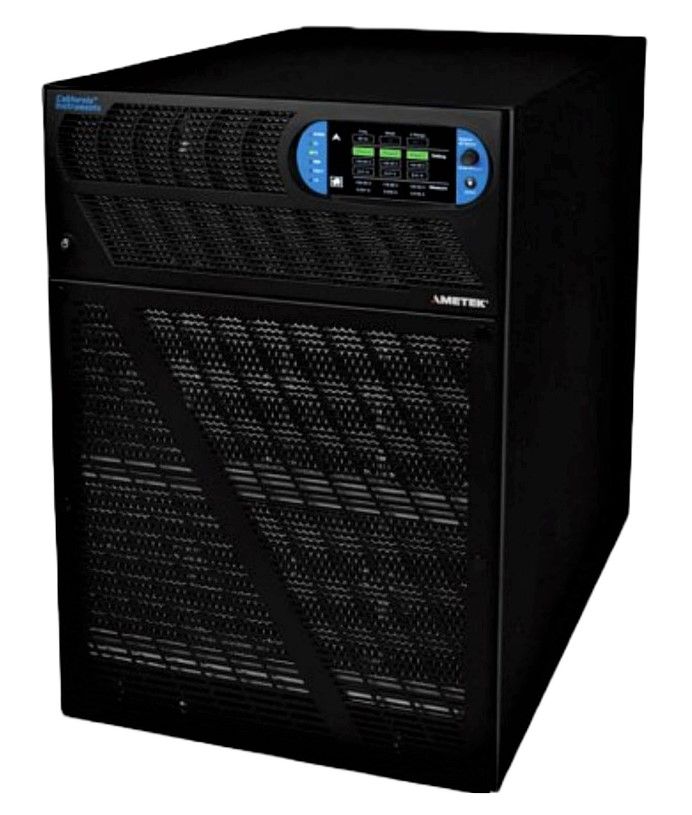

California Instruments AST18K3
| Atributo | Valor |
|---|---|
| Potencia de salida | 18 kVA |
| Número de fases | Trifásico |
| Rango de tensión de salida | 0 - 300 V por fase |
| Rango de frecuencia de salida | 45 Hz - 500 Hz |
| Tensión de entrada | 208 V / 220 V trifásico |
| Distorsión armónica total (THD) | Menos del 0,5% |
| Forma de onda de salida | Senoidal pura |
| Interfaz de programación | GPIB / RS-232 |
| Regulación de tensión | ±0,1% |
| Dimensiones del equipo | Formato rack 19 pulgadas |
California Instruments AST18K3 Options:
- AST18K3 - A - Standard
- AST18K3 - B - Low Noise Fan
- AST18K3 - C - No Casters
- AST18K3 - C (Input) - 180-264VAC, 3-Phase L-L (3-wire + Ground)
- AST18K3 - D (Input) - 342-457VAC, 3-Phase L-L (4-wire + Ground)
- AST18K3 - E (Front Panel) - Enhanced
- AST18K3 - A (Front Panel) - ATE
- AST18K3 - 0 (GPIB) - None
- AST18K3 - 1 (GPIB) - GPIB
- AST18K3 - 2 (GPIB) - GPIB – MC
- AST18K3 - 0 (Avionics) - None
- AST18K3 - 1 - B787 Avionics Electrical Power Quality Test Software; Boeing 787B3-0147 A/B/C
- AST18K3 - 2 - AMD Avionics Electrical Power Quality Test Software; Airbus AMD24 C (A400M)
- AST18K3 - 3 - B787 & AMD
- AST18K3 - 4 - AVSTD Avionics Electrical Power Quality Test Software Package; includes 160, 704, ABD, A350
- AST18K3 - 5 - AVALL Avionics Electrical Power Quality Test Software Package; includes AVSTD, B787, AMD
- AST18K3 - 6 - B787 – MC
- AST18K3 - 7 - AMD – MC
- AST18K3 - 8 - B787 & AMD – MC
- AST18K3 - 9 - AVSTD – MC
- AST18K3 - A (Avionics) - AVALL – MC
- AST18K3 - B (Avionics) - AVSTD & B787
- AST18K3 - C (Avionics) - AVSTD & AMD
- AST18K3 - D (Avionics) - AVSTD & B787 – MC
- AST18K3 - E (Avionics) - AVSTD & AMD – MC
- AST18K3 - 0A (Additional) - None
- AST18K3 - 1A - 411 IEC 61000-4-11 voltage dips and interruptions EMC test software
- AST18K3 - 1B - 413 IEC 61000-4-13 harmonics and Inter-harmonics EMC test hardware and software
- AST18K3 - 1C - MB
- AST18K3 - 1D - 411 – MC
- AST18K3 - 1E - 413 – MC
- AST18K3 - 1F - 1399 MIL-STD-1399-300B shipboard power test software
- AST18K3 - 1G - 1399 – MC
- AST18K3 - 2A - 411 & 413
- AST18K3 - 2B - MB & 411
- AST18K3 - 2C - MB & 413
- AST18K3 - 2D - 411 & 413 – MC
- AST18K3 - 2E - MB & 411 – MC
- AST18K3 - 2F - MB & 413 – MC
- AST18K3 - 2G - 411 & 1399
- AST18K3 - 2H - 413 & 1399
- AST18K3 - 2I - MB & 1399
- AST18K3 - 2J - 411 & 1399 – MC
- AST18K3 - 2K - 413 & 1399 – MC
- AST18K3 - 2L - MB & 1399 – MC
- AST18K3 - 3A - MB & 411 & 413
- AST18K3 - 3B - MB & 411 & 413 – MC
- AST18K3 - 3C - MB & 413 & 1399
- AST18K3 - 3D - MB & 411 & 1399 – MC
- AST18K3 - 3E - MB & 413 & 1399
- AST18K3 - 3F - MB & 413 & 1399 – MC
- AST18K3 - 3G - 411 & 413 & 1399
- AST18K3 - 3H - 411 & 413 & 1399 – MC
- AST18K3 - 4A - MB & 411 & 413 & 1399
- AST18K3 - 4B - MB & 411 & 413 & 1399 – MC
- AST18K3 - 0A (Freq & Clock Lock) - None
- AST18K3 - 1A (Freq) - HF (High Frequency option: DC and 16 Hz to 5 kHz)
- AST18K3 - 1B (Freq) - LF (Low Frequency option: DC and 16 Hz to 550 Hz)
- AST18K3 - 1C (Freq) - FC
- AST18K3 - 1D (Freq) - LKM
- AST18K3 - 1E (Freq) - LKS
- AST18K3 - 2A (Freq) - HF & FC
- AST18K3 - 2B (Freq) - HF & LKM
- AST18K3 - 2C (Freq) - HF & LKS
- AST18K3 - 2D (Freq) - LF & LKM
- AST18K3 - 2E (Freq) - LF & LKS
- AST18K3 - 2F (Freq) - FC & LKM
- AST18K3 - 2G (Freq) - FC & LKS
- AST18K3 - 3A (Freq) - HF & FC & LKM
- AST18K3 - 3B (Freq) - HF & FC & LKS
| Model | AST18K3 |
|---|
CALIFORNIA INSTRUMENTS AST18K3 AC/DC Power Supply
The California Instruments "Asterion" AST18K3 AC power source by AMETEK Programmable Power combines intelligence and flexibility to create an advanced platform of AC solutions. This easy-to-configure design features sophisticated technology for delivering high performance, programmable AC and DC power. Its sleek design packs maximum power density into a low-profile form factor with an intuitive touch screen interface placing that power at your fingertips. Centralized control and unparalleled modularity make Asterion the most adaptable platform on the market. Its groundbreaking capabilities set the standard for affordable, precision power sources.
The Asterion AST18K3 is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easy to use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB control interface. Function selection and parameter entry can be achieved either by direct selection from the touchscreen or by using the encoder selector button. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range. Centralized control and unparalleled modularity make Asterion AST18K3 the most adaptable platform on the market. Its groundbreaking capabilities set the standard for affordable, precision power sources.
Specifications for the CALIFORNIA INSTRUMENTS AST18K3 AC/DC Power Supply Include:
| AC Power | 18,000VA |
| AC Voltage Range | 0-200V/0-400V |
| DC Voltage Range | 0-250V/0-500V |
| Frequency | DC, 16Hz - 1000Hz, 5000Hz optional |
