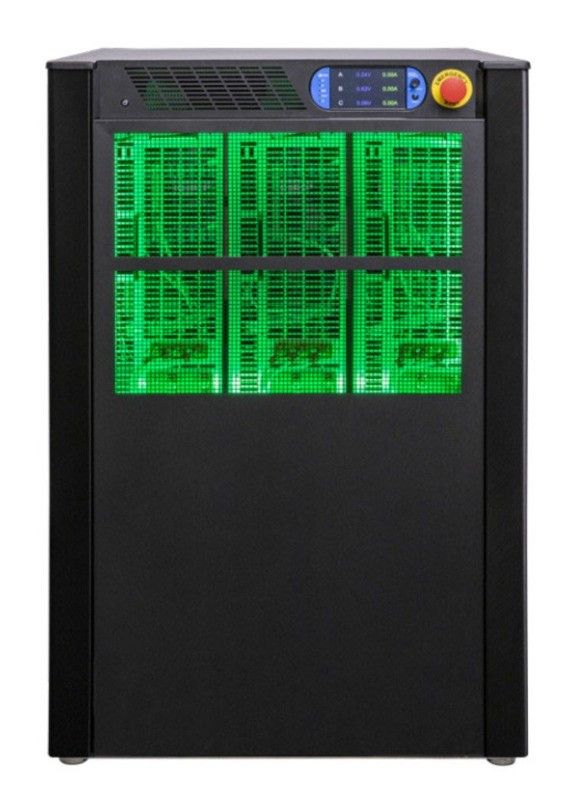

California Instruments TA0022
| Atributo | Valor |
|---|---|
| Tensión de salida | 0 - 300 V AC |
| Frecuencia de salida | 45 - 500 Hz |
| Potencia nominal | 2000 VA |
| Número de fases | Monofásico |
| Tensión de entrada | 105 - 125 V / 210 - 250 V AC |
| Distorsión armónica total (THD) | Menos del 0,5% |
| Regulación de tensión | ± 0,1% |
| Regulación de frecuencia | ± 0,01% |
| Tipo de control | Programable con control frontal |
| Dimensiones (An x Al x Pr) | 425 mm x 132 mm x 550 mm |
California Instruments TA0022 Options:
- TA0022 - HF - Increases the maximum output frequency range to 905Hz
- TA0022 - HF-FC - Adds the HF option and changes the frequency accuracy to ±0.25% of program frequency
- TA0022 - LKM - Clock and Lock, Master
- TA0022 - LKS - Clock and Lock, Auxilliary
- TA0022 - AVSTD - Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C
- TA0022 - AVALL - Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C, B787B3-0147, AMD24C
- TA0022 - MIL1399 - MIL-STD 1399-300B Shipboard Power Test
- TA0022 - LNS - Synchronizes the output frequency to the input line frequency
- TA0022 - GPIB - GPIB Interface
- TA0022 - XVC440 - Optional AC coupled voltage range, 0-440 Vrms L-N, 22.5kVA, 21 Arms per phase max
- TA0022 - C - Input: 208V L-L
- TA0022 - D - Input: 400V L-L
- TA0022 - E - Input: 480V L-L
- TA0022 - F - Input: 230V L-L
- TA0022 - G - Input: 380V L-L
| Model | TA0022 |
|---|
California Instruments TA0022 Programmable AC/DC Source
The California Instruments TA0022 Programmable AC/DC Source combines intelligence and flexibility with high power to create an advanced platform of AC solutions. Using a state-of-the art SiC power switching architecture and Digital Signal Processing, the TA0022 combines a robust, high-power AC/DC source with an advanced power analyzer in a single floor standing chassis. The TA0022 covers a wide spectrum of single and multi-phase AC or single channel and multi-channel DC power applications at an affordable cost. With add-on test application routines for military and commercial avionics testing, the Tahoe Series can fulfill your power test requirement.
The California Instruments TA0022 can be operated completely from its menu driven front panel controller. The full color touch display shows menus, setup data, and read-back measurements. RS-232C, USB and LAN remote control interfaces and instrument drivers for popular ATE programming environments are available. This allows the TA0022 to be easily integrated into an automated test system. With support for high crest factor loads, the TA0022 can drive difficult nonlinear loads with ease. Since many modern products use switching power supplies, they tend to pull high repetitive peak currents.
Specifications for the California Instruments TA0022 Programmable AC/DC Source Include:
| AC Voltage (Low/High) | 0-166 V/0-333 V |
| AC Cur Per Phase (Low/High) | 62.5 A/31.2 A |
| Total Power | 22.5kVA Single or Three Phase |
| Frequency Range | 16-550Hz (up to 905Hz HF option) |
