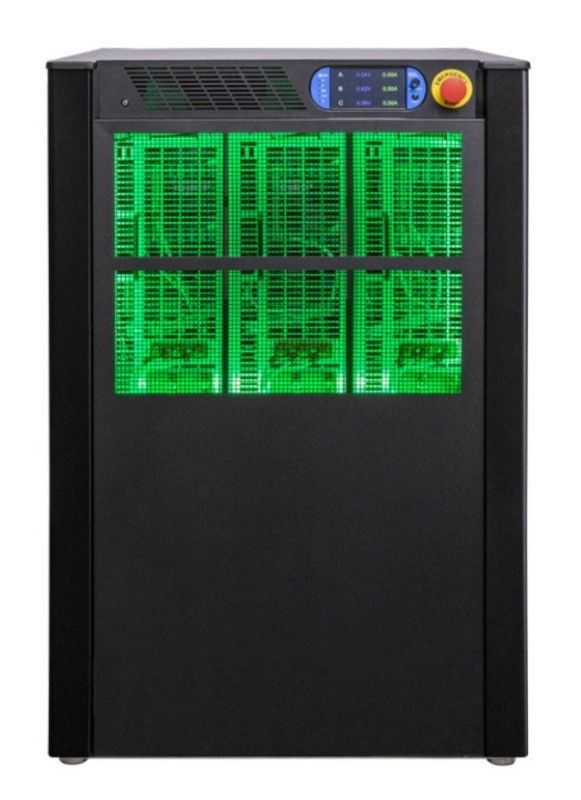

California Instruments TA0030
| Atributo | Valor |
|---|---|
| Potencia de salida | 30 VA |
| Tensión de salida | 0 - 300 V CA |
| Frecuencia de salida | 45 Hz - 500 Hz |
| Número de fases | Monofásico |
| Tensión de entrada | 115 V / 230 V CA |
| Corriente de salida máxima | 0,1 A |
| Distorsión armónica total (THD) | Menos del 0,5% |
| Tipo de control | Programable mediante panel frontal |
| Interfaz de comunicación | GPIB / IEEE-488 |
| Dimensiones (An x Al x Pr) | Formato de sobremesa compacto |
California Instruments TA0030 Options:
- TA0030 - HF - Increases the maximum output frequency range to 905Hz
- TA0030 - HF-FC - Adds the HF option and changes the frequency accuracy to ±0.25% of program frequency
- TA0030 - LKM - Clock and Lock, Master
- TA0030 - LKS - Clock and Lock, Auxiliary
- TA0030 - AVSTD - Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C
- TA0030 - AVALL - Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C, B787B3-0147, AMD24C
- TA0030 - MIL1399 - MIL-STD 1399-300B Shipboard Power Test
- TA0030 - LNS - Synchronizes the output frequency to the input line frequency
- TA0030 - GPIB - GPIB Interface
- TA0030 - XVC440 - Optional AC coupled voltage range 0-440 Vrms L-N (AC mode only)
- TA0030 - XVC550 - Optional AC coupled voltage range 0-550 Vrms L-N (AC mode only)
- TA0030 - XVC660 - Optional AC coupled voltage range 0-660 Vrms L-N (AC mode only)
- TA0030 - XVC715 - Optional AC coupled voltage range 0-715 Vrms L-N (AC mode only)
| Model | TA0030 |
|---|
California Instruments TA0030 Programmable AC/DC Source
The California Instruments TA0030 Programmable AC/DC Source combines intelligence and flexibility with high power to create an advanced platform of AC solutions. Using a state-of-the art SiC power switching architecture and Digital Signal Processing, the TA0030 combines a robust, high-power AC/DC source with an advanced power analyzer in a single floor standing chassis. The TA0030 covers a wide spectrum of single and multi-phase AC or single channel and multi-channel DC power applications at an affordable cost. With add-on test application routines for military and commercial avionics testing, the Tahoe Series can fulfill your power test requirement.
The California Instruments TA0030 can be operated completely from its menu driven front panel controller. The full color touch display shows menus, setup data, and read-back measurements. RS-232C, USB and LAN remote control interfaces and instrument drivers for popular ATE programming environments are available. This allows the TA0030 to be easily integrated into an automated test system. With support for high crest factor loads, the TA0030 can drive difficult nonlinear loads with ease. Since many modern products use switching power supplies, they tend to pull high repetitive peak currents.
Specifications for the California Instruments TA0030 Programmable AC/DC Source Include:
| AC Voltage (Low/High) | 0-166 V/0-333 V |
| AC Cur Per Phase (Low/High) | 83 A/41 A |
| Total Power | 30kVA Single or Three Phase |
| Frequency Range | 16-550Hz (up to 905Hz HF option) |
