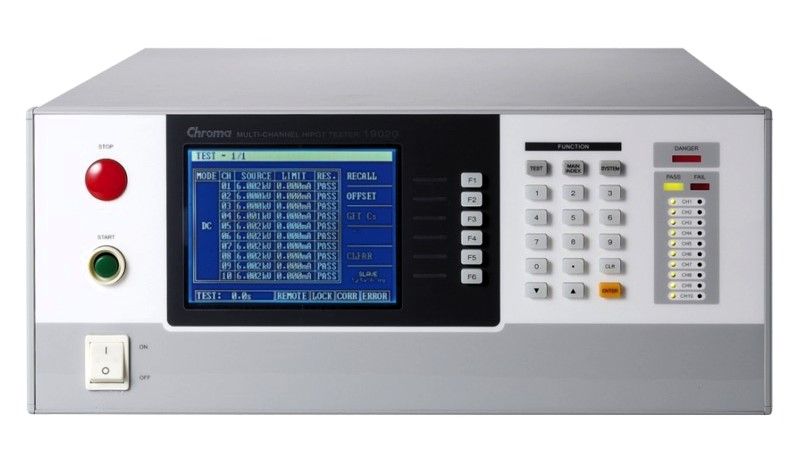

Chroma 19020
| Atributo | Valor |
|---|---|
| Número de Canales | 20 |
| Capacidad de Corriente por Canal | Hasta 100 A |
| Rango de Voltaje | 0 – 5 V |
| Precisión de Medición | ±0,05% |
| Interfaz de Comunicación | GPIB / RS-232 / USB |
| Resolución de Voltaje | 1 mV |
| Resolución de Corriente | 1 mA |
| Temperatura de Operación | 0 °C – 40 °C |
| Alimentación Eléctrica | 100 – 240 V CA, 50/60 Hz |
| Dimensiones (An × Al × Pr) | 430 mm × 88 mm × 500 mm |
Chroma 19020 Options:
- 19020 - Multi-Channel Hipot Tester (ACWV/DCWV/IR)
- 19020-4 - Multi-Channel Hipot Tester (ACWV/DCWV/IR/4CH)
- 19021 - Multi-Channel Hipot Tester (ACWV)
- 19021-4 - Multi-Channel Hipot Tester (ACWV/4CH)
- 19022 - Multi-Channel Hipot Tester (DCWV/IR)
- 19022-4 - Multi-Channel Hipot Tester (DCWV/IR/4CH)
- 19023-8-20 - Multi-Channel Hipot Tester (8kVAC/4CH)
- A190200 - 19" Rack Mounting Kit for 19020 Series
- A190201 - 3-way Scanner Box (10CH)
- A190202 - 3-way Scanner Box (4CH)
- A190203 - 19020 Series Hipot Tester Software
| Model | 19020 |
|---|
Chroma 19020 Multi-Channel Hipot Tester
All electrical components and products including transformers, capacitors, power supplies, chargers, and home appliances require hipot testing which is a major test in electrical safety testing. Chroma 19020 saves space on the production line by eliminating the need to purchase multiple hipot testers. Its one-time multichannel test increases the efficiency of electrical safety testing. The Chroma 19020 also has powerful functions for Flashover detection and Open/Short Check.
The Chroma 19020 comes equipped with the world's first sync hipot test function. A single unit can operate 10 channels simultaneously with synchronized output and measurements. Up to 10 units (master & slave) can be linked to have 100 channels in total. These can be grouped for output as to avoid creating voltage differences caused by adjacent tests as well as to improve productivity. The Chroma 19020 is the best tool for regulatory electrical hipot tests as it not only offers reliable quality, but also creates a highly efficient test platform.
Specifications for the Chroma 19020 Multi-Channel Hipot Tester Include:
| Withstanding Voltage Test | AC: 0.05~5kV; DC: 0.05~6kV |
| Cutoff Current | AC: 0.01~10mA ; DC: 0.001~5mA |
| Insulation Resistance Test | DC: 0.05~1kV |
| Output Frequency | 50Hz/60Hz |
