Chroma

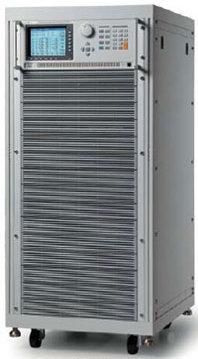

Chroma 61511
Programmable AC Source 0-300V, 15-1.5 kHz, 12 KVA, 1 or 3 Phase
0 – 300 V CA Rango de voltaje de salida
15 Hz – 1000 Hz Rango de frecuencia de salida
500 VA Potencia nominal
4,2 A (rango de 300 V) / 8,3 A (rango de 150 V) Corriente de salida máxima
≤ 0,5 % (carga lineal) Distorsión armónica total (THD)
| Atributo | Valor |
|---|---|
| Rango de voltaje de salida | 0 – 300 V CA |
| Rango de frecuencia de salida | 15 Hz – 1000 Hz |
| Potencia nominal | 500 VA |
| Corriente de salida máxima | 4,2 A (rango de 300 V) / 8,3 A (rango de 150 V) |
| Distorsión armónica total (THD) | ≤ 0,5 % (carga lineal) |
| Voltaje de entrada | 100 – 240 V CA, monofásico |
| Interfaz de comunicación | GPIB, RS-232 |
| Forma de onda de salida | Senoidal, cuadrada, triangular y formas de onda arbitrarias |
| Resolución de programación de voltaje | 0,1 V |
| Dimensiones (An x Al x Pr) | 213 mm x 88 mm x 498 mm |
Chroma 61511 Options:
- 61511 - A615007 - Softpanel for 61500/61600 Series
- 61511 - A615101 - AC Source Remote Controller for 61511/61512/61611/61612
- 61511 - A615103 - Parallelable Power Stage Unit 18KVA, 1ø/3ø
- 61511 - A615104 - Input/Output Terminals for Parallel Connecting (2 units)
- 61511 - A615105 - Input/Output Terminals for Parallel Connecting (3 units)
- 61511 - 277VLN/480VLL - Option for 277VLN/480VLL (5 Wires) AC Input Voltage (contact local sales representative for ordering information)
| Model | 61511 |
|---|
Chroma 61511 AC Power Source The Chroma 61511 high performance AC power source that is capable of simulating a wide range of AC line conditions and measurement of critical characteristic for products under test. The units are able to provide precision measurements such as RMS voltage, RMS cur, true power, power factor, cur crest factor and more. The AC+DC modes extend the applications not only for providing pure AC voltage, but also DC component for DC offset testing in laboratory. The modularized power stage design offer outstanding performance and high reliability. Chroma 61511 AC sources are capable of delivering single or three-phase output depending on the user's application. It can deliver the maximum output voltage up to 300Vac and output frequency from 15Hz to 1500Hz. Capable of delivering up to 4 times of peak cur compared to its maximum rated cur, the Chroma 61511 is ideal for inrush cur test. The ability to program output impedance makes the 61511 AC power source suitable for IEC 61000-3-3 Flicker tests or other test conditions with a particular output impedance requirement. Using the advanced DSP technology, 61511 AC source can measure THD and up to 40 orders of cur harmonics. It makes the 61511 not only a sophisticated power source but also a powerful Analyser. Specifications of the Chroma 61511 AC Power Source includes: See Datasheet for Full Specifications
