Chroma

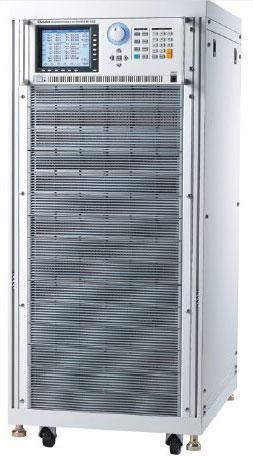

Chroma 61611
Programmable AC Source 0-300V, 15-1.5kHz, 12KVA, 1 or 3 Phase
1500 VA Potencia máxima de salida
0 - 300 V CA Rango de tensión de salida
15 Hz - 1000 Hz Rango de frecuencia de salida
15 A (rango de baja tensión), 7,5 A (rango de alta tensión) Corriente de salida máxima
180 - 250 V CA, monofásico Tensión de entrada
| Atributo | Valor |
|---|---|
| Potencia máxima de salida | 1500 VA |
| Rango de tensión de salida | 0 - 300 V CA |
| Rango de frecuencia de salida | 15 Hz - 1000 Hz |
| Corriente de salida máxima | 15 A (rango de baja tensión), 7,5 A (rango de alta tensión) |
| Tensión de entrada | 180 - 250 V CA, monofásico |
| Distorsión armónica total (THD) | Menor de 0,5% (carga lineal) |
| Interfaz de comunicación | GPIB, RS-232, USB |
| Forma de onda de salida | Senoidal, cuadrada, triangular y formas de onda programables |
| Dimensiones (An x Al x Pr) | 430 mm x 88 mm x 550 mm |
| Peso | Aproximadamente 28 kg |
Chroma 61611 Options:
- 61611 - A615007 - Softpanel for 61500/61600 Series
- 61611 - A615101 - AC Source Remote Controller for 61511/61512/61611/61612
- 61611 - A615103 - Parallelable Power Stage Unit 18KVA, 1ø/3ø
- 61611 - A615104 - Input/Output Terminals for Parallel Connecting (2 units)
- 61611 - A615105 - Input/Output Terminals for Parallel Connecting (3 units)
- 61611 - 277VLN/480VLL - Option for 277VLN/480VLL (5 Wires) AC Input Voltage (contact local sales representative for ordering information)
| Model | 61611 |
|---|
Chroma 61611 AC Power Source Chroma 61611 AC power sources are able to provide highest power density by its advanced high speed PWM mode design. The modularized power stage design offer outstanding performance and high reliability. Units are capable of delivering single or three-phase output depending on the user's application. Chroma 61611 AC power sources have a built in 16-bit measurement circuit and firmware utilities to measure the true RMS voltage, cur, true power, VA (appa power), VAR (reactive power), power factor, cur crest factor, peak repetitive cur and inrush cur. Capable of simulating a wide range of AC line conditions, the Chroma 61611 AC power sources are ideal for commercial, power electronics, avionics, military and regulation test applications from bench-top R/D design verification, quality assurance to mass production. The 61611 AC sources are capable of delivering up to 4 times of peak cur compared to its maximum rated cur that makes it ideal for inrush cur test. To simulate the natural waveform, the Chroma 61611 provides an external analog input to amplify the analog signal generated from arbitrary signal generator. The user friendly interface allows user quick access to its functions through large graphic LCD display front panel with clear indicated keypad. Specifications of the Chroma 61611 AC Power Source includes: See Datasheet for Full Specifications
