Chroma

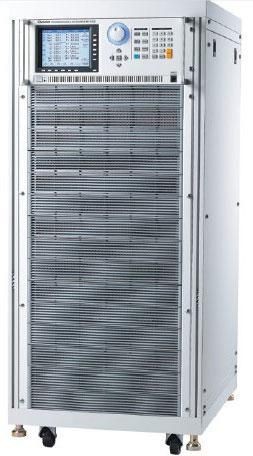

Chroma 61612
Programmable AC Source 0-300V, 15-1.5kHz, 18KVA, 1 or 3 Phase
1800 VA Potencia máxima de salida
0 - 300 V CA Rango de tensión de salida
15 Hz - 1000 Hz Rango de frecuencia de salida
6 A / 12 A Corriente de salida máxima
190 - 250 V CA, monofásico Tensión de entrada
| Atributo | Valor |
|---|---|
| Potencia máxima de salida | 1800 VA |
| Rango de tensión de salida | 0 - 300 V CA |
| Rango de frecuencia de salida | 15 Hz - 1000 Hz |
| Corriente de salida máxima | 6 A / 12 A |
| Tensión de entrada | 190 - 250 V CA, monofásico |
| Distorsión armónica total (THD) | ≤ 0,5 % |
| Formas de onda programables | Senoidal, cuadrada, triangular y formas de onda definidas por el usuario |
| Interfaz de comunicación | GPIB, RS-232, USB |
| Dimensiones (An x Al x Pr) | 430 mm x 88 mm x 600 mm |
| Peso | 28 kg |
| Model | 61612 |
|---|
Chroma 61612 AC Power Source Chroma 61612 AC power sources are able to provide highest power density by its advanced high speed PWM mode design. Capable of delivering single or three-phase output, users can select these output modes easily through front panel or via remote control. Chroma's 61612 AC power source has a built in 16-bit measurement circuit and firmware utilities to measure the true RMS voltage, cur, true power, VA (appa power), VAR (reactive power), power factor, cur crest factor, peak repetitive cur and inrush cur. Using the state of the art PWM technology, the Chroma 61612 can deliver the maximum output voltage up to 300Vac and output frequency from 15Hz to 1500Hz. The ability to simulate various AC line input conditions and measurement of critical characteristic for products under test make the 61612 AC source ideal for commercial, power electronics, avionics, military and regulation test applications from bench-top R/D design verification, quality assurance to mass production. It has the ability to generate pure sine waveform output with typical distortion less than 0.3% at 50/60Hz. The user friendly interface allows user quick access to the Chroma 61612 AC source’s functions through large graphic LCD display front panel with clear indicated keypad. The GPIB (IEEE488.2), RS-232, USB and Ethernet interface are available for users to control the AC source remotely. Specifications of the Chroma 61612 AC Power Source includes: See Datasheet for Full Specifications
