Chroma

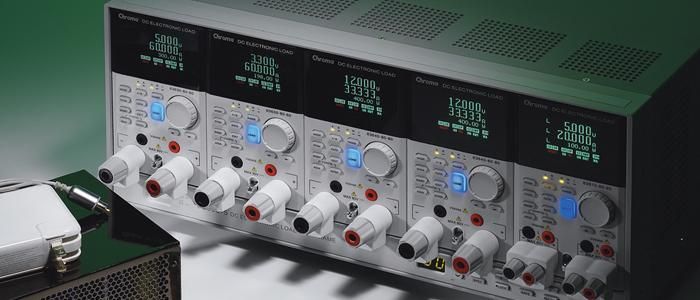

Chroma 63600 Chroma 63600-5
DC Electronic Load Mainframe Power Supply
500 V Voltaje máximo de entrada
5 A Corriente máxima
150 W Potencia máxima
CC, CV, CR, CP Modos de operación
0,1 mA Resolución de corriente
| Atributo | Valor |
|---|---|
| Voltaje máximo de entrada | 500 V |
| Corriente máxima | 5 A |
| Potencia máxima | 150 W |
| Modos de operación | CC, CV, CR, CP |
| Resolución de corriente | 0,1 mA |
| Resolución de voltaje | 1 mV |
| Interfaz de comunicación | GPIB, RS-232, USB |
| Rango de temperatura de operación | 0 °C a 40 °C |
| Dimensiones (An x Al x Pr) | 213 mm x 88 mm x 348 mm |
| Peso | 4,5 kg |
Chroma 63600 Chroma 63600-5 Options:
- 63600 - 63600-1 - 63600 mainframe for single module
- 63600 - 63600-2 - 63600 mainframe for 2 modules
- 63600 - 63600-5 - 63600 mainframe for 5 modules (Max. 10 channels)
- 63600 - 63601-5 - 63600 mainframe for 5 modules (Only one slot for dual channel load module, max. 6 channels)
- 63600 - 63610-80-20 - DC load module, 80V/20A/100Wx2
- 63600 - 63630-80-60 - DC load module, 80V/60A/300W
- 63600 - 63630-600-15 - DC load module, 600V/15A/300W
- 63600 - 63640-80-80 - DC load module, 80V/80A/400W
- 63600 - 63640-150-60 - DC load module, 150V/60A/400W
- 63600 - A636000 - GPIB interface for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636001 - Ethernet interface for 63600-2/63600-5 mainframe
- 63600 - A636003 - External signal board (test pin) for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636005 - External signal board (BNC) for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636007 - Rack mounting kit for 63600-2 mainframe
- 63600 - A636008 - Rack mounting kit for 63600-5/63601-5 mainframe (for Europe only)
- 63600 - A636010 - Ethernet interface for 63601-5 mainframe
- 63600 - A632006 - NI USB-6211 bus-powered multifunction DAQ
| Model | 63600 |
|---|
