Chroma 63718-1800-40
| Atributo | Valor |
|---|---|
| Voltaje máximo de entrada | 1800 V |
| Corriente máxima | 40 A |
| Potencia máxima | 14,4 kW |
| Número de canales | 1 |
| Modo de operación | CC, CV, CP, CR |
| Interfaz de comunicación | GPIB, USB, RS-232 |
| Resolución de voltaje | 10 mV |
| Resolución de corriente | 1 mA |
| Rango de temperatura de operación | 0 °C a 50 °C |
| Dimensiones (U de rack) | 2U |
Chroma 63718-1800-40 Options:
- 63718-1800-40 - A620039 - GPIB Interface
- 63718-1800-40 - A620045 - CAN Interface
- 63718-1800-40 - A600009 - GPIB Cable (200cm)
- 63718-1800-40 - A600010 - GPIB Cable (60cm)
| Model | 63718-1800-40 |
|---|

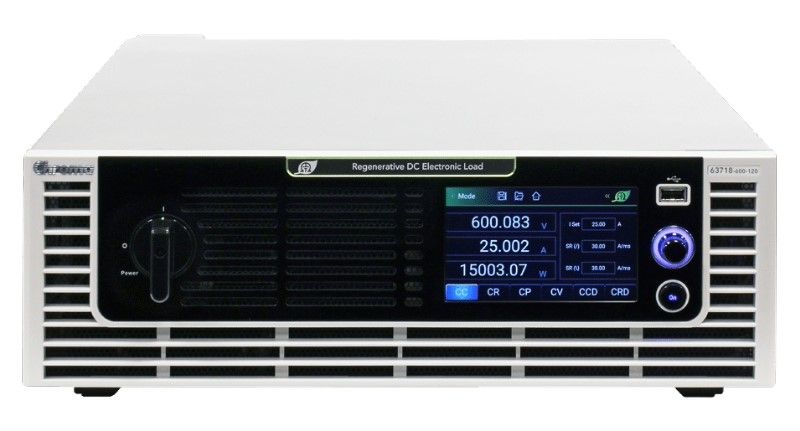

CHROMA 63718-1800-40 Regenerative DC Load
The Chroma 63718-1800-40 Regenerative DC Electronic Load offers a versatile solution for product reliability testing in various applications, including electric vehicle battery discharge, fuel cell discharge, power supply aging, and more. This regenerative DC load can simulate a wide range of load characteristics while also feeding energy back to the grid, reducing test environment temperatures, power consumption, and electricity costs.
With the Chroma 63718-1800-40 power rating of 18kW per unit and currents of up to 40A, users can parallel up to 10 units for a maximum power of 180kW. The 63718-1800-40 can simulate real cur waveforms, store up to 256 programmable sequences, and offer precise voltage and cur measurements. The 63718-1800-40 is compact, energy-efficient, and suitable for a range of applications, making it an ideal choice for design verification and integration into automated test systems. Its regenerative capabilities, high power density, and efficient energy recovery sets it apart from conventional and resistive loads.
Specifications for the CHROMA 63718-1800-40 Regenerative DC Load Include:
| Voltage Range | 0 ~ 1800 V |
| Cur Range | 0 ~ 40 A |
| Total Power | 18 kW |
| Regeneration Efficiency | Max. 92% (Typical) AC 380 Vac |
