Chroma 63812R-350-96
| Atributo | Valor |
|---|---|
| Voltaje máximo de entrada | 350 V |
| Corriente máxima de entrada | 96 A |
| Potencia máxima | 3600 W |
| Número de canales | 1 |
| Rango de resistencia dinámica | 0,5 mΩ ~ 7,5 Ω |
| Modos de operación | CC, CV, CR, CP |
| Interfaz de comunicación | GPIB, USB, RS-232 |
| Tensión mínima de operación | 0 V |
| Frecuencia de muestreo | 50 kHz |
| Dimensiones (U de rack) | 2U |
Chroma 63812R-350-96 Options:
- 63812R-350-96 - A618005 - Single/Three Phase Switching Unit (option)
- 63812R-350-96 - A620039 - GPIB remote interface (option)
- 63812R-350-96 - A620045 - CAN remote interface (option)
- 63812R-350-96 - A638003 - SoftPanel for 63800R Series
| Model | 63812R-350-96 |
|---|

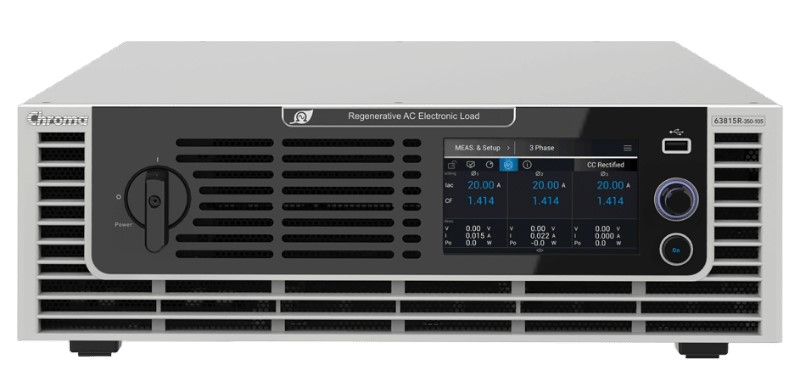

CHROMA 63812R-350-96 Regenerative AC Load
The Chroma 63812R-350-96 is a versatile and energy-efficient AC electronic load with regenerative capabilities. The Chroma 63812R-350-96 comes with 12kVA power rating all packed within a compact 3U chassis, and can be paralleled for increased load capacity. The regenerative feature allows it to feed energy back into the power grid with up to 89% efficiency, making it ideal for a wide range of renewable energy applications like ESS, hybrid PV inverters, AC EVSE, and bidirectional on-board chargers.
The Chroma 63812R-350-96 stands out by eliminating waste heat generation, reducing electricity costs, and meeting UPS testing standards. With advanced digital control technology, a Stand-By function for automated testing, various operating modes, and a user-friendly interface, the Chroma 63812R-350-96 is equipped with a half-cycle load function in CC Rectified mode. This function is capable of supplying positive half-cycle, negative half-cycle load currents, and even 90-degree Leading Edge and Trailing Edge half-cycle loads, replicating the features of SCR and TRIAC switches. With this function, users can simulate load characteristics for household appliances, protective switches, and other devices employing SCR or TRIAC components.
Specifications for the CHROMA 63812R-350-96 Regenerative AC Load Include:
| Max Power | 12 kVA |
| Max Current | 96 Arms |
| Voltage Range | 30 ˆ¼ 350 Vrms |
| Frequency Range | 30 ˆ¼ 100 Hz |
